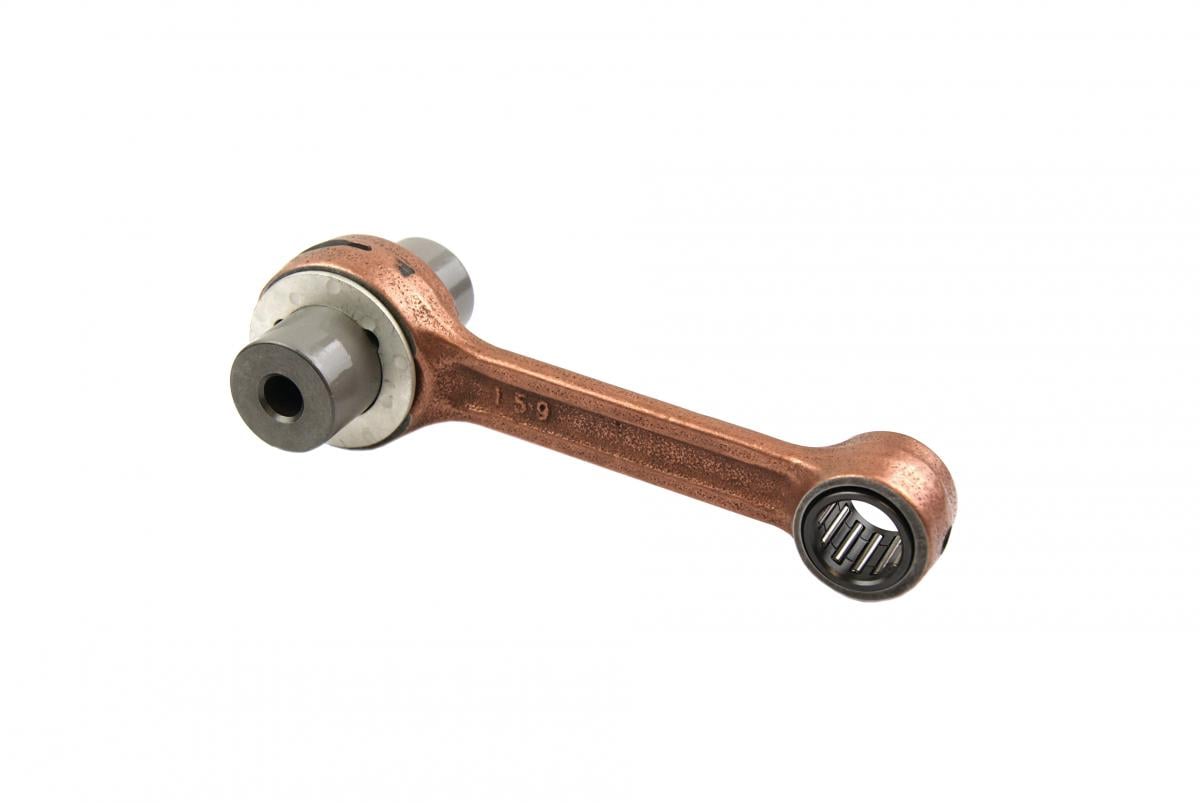

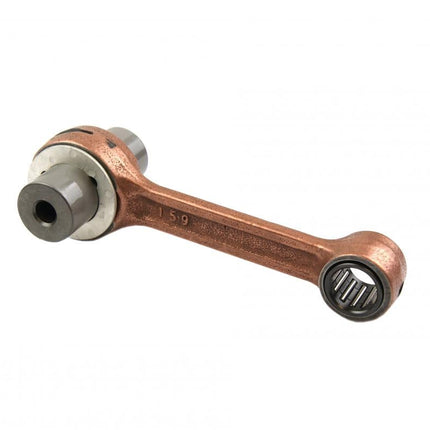

Name: Connecting Rod 99-03 RM125, Hot Rods 8159 Repair Kit
Brand: Hot Rods
SKU: 56-117_HR
Price: 151.96 GBP
Availability: InStock

Connecting Rod 99-03 RM125, Hot Rods 8159 Repair Kit

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

A high-quality Hot Rods connecting rod kit designed for Suzuki RM125 models from 1999 to 2003. Built for precision and durability, this kit is ideal for maintaining optimal engine performance under demanding conditions.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength.
Advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion.
Double-forged rods enhance grain flow and dimensional consistency.
Shot-peened and double-honed for maximum durability under heavy loads.
Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
Thrust washers and crank pin bearings are silver-coated for added lubricity.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Center to Center Length: 102 mm
Small End Bearing Dimensions: 15 x 19 x 20 mm
Small End Bore Diameter: 19 mm
Small End Width: 17.90 mm
Big End Bearing Dimensions: 22 x 28 x 16 mm
Big End Bore Diameter: 28 mm
Big End Width: 15.90 mm
Big End Pin Diameter: 22 mm
Big End Pin Length: 52.90 mm
Washer Dimensions: 22 x 42 x 1 mm

Cross-Reference OEM Part Numbers:

Suzuki: 12161-43D00
Hot Rods: 8159
Wossner: P2013
Wiseco: WPR177
Psychic: MX-09057

Compatibility:
Fits the following models:

Suzuki:

RM125 (1999-2003)

Part Number: 56-117_HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 125	1999-2003

Connecting Rod 99-03 RM125, Hot Rods 8159 Repair Kit

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

A high-quality Hot Rods connecting rod kit designed for Suzuki RM125 models from 1999 to 2003. Built for precision and... Read more

1 in stock 1-2 business days

£151.96 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-117_HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

A high-quality Hot Rods connecting rod kit designed for Suzuki RM125 models from 1999 to 2003. Built for precision and durability, this kit is ideal for maintaining optimal engine performance under demanding conditions.

Features:

Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength.
Advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion.
Double-forged rods enhance grain flow and dimensional consistency.
Shot-peened and double-honed for maximum durability under heavy loads.
Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
Thrust washers and crank pin bearings are silver-coated for added lubricity.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Center to Center Length: 102 mm
Small End Bearing Dimensions: 15 x 19 x 20 mm
Small End Bore Diameter: 19 mm
Small End Width: 17.90 mm
Big End Bearing Dimensions: 22 x 28 x 16 mm
Big End Bore Diameter: 28 mm
Big End Width: 15.90 mm
Big End Pin Diameter: 22 mm
Big End Pin Length: 52.90 mm
Washer Dimensions: 22 x 42 x 1 mm

Cross-Reference OEM Part Numbers:

Suzuki: 12161-43D00
Hot Rods: 8159
Wossner: P2013
Wiseco: WPR177
Psychic: MX-09057

Compatibility:
Fits the following models:

Suzuki:

RM125 (1999-2003)

Part Number: 56-117_HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 125	1999-2003
