Description
SUZUKI
RM125 1999-2003,

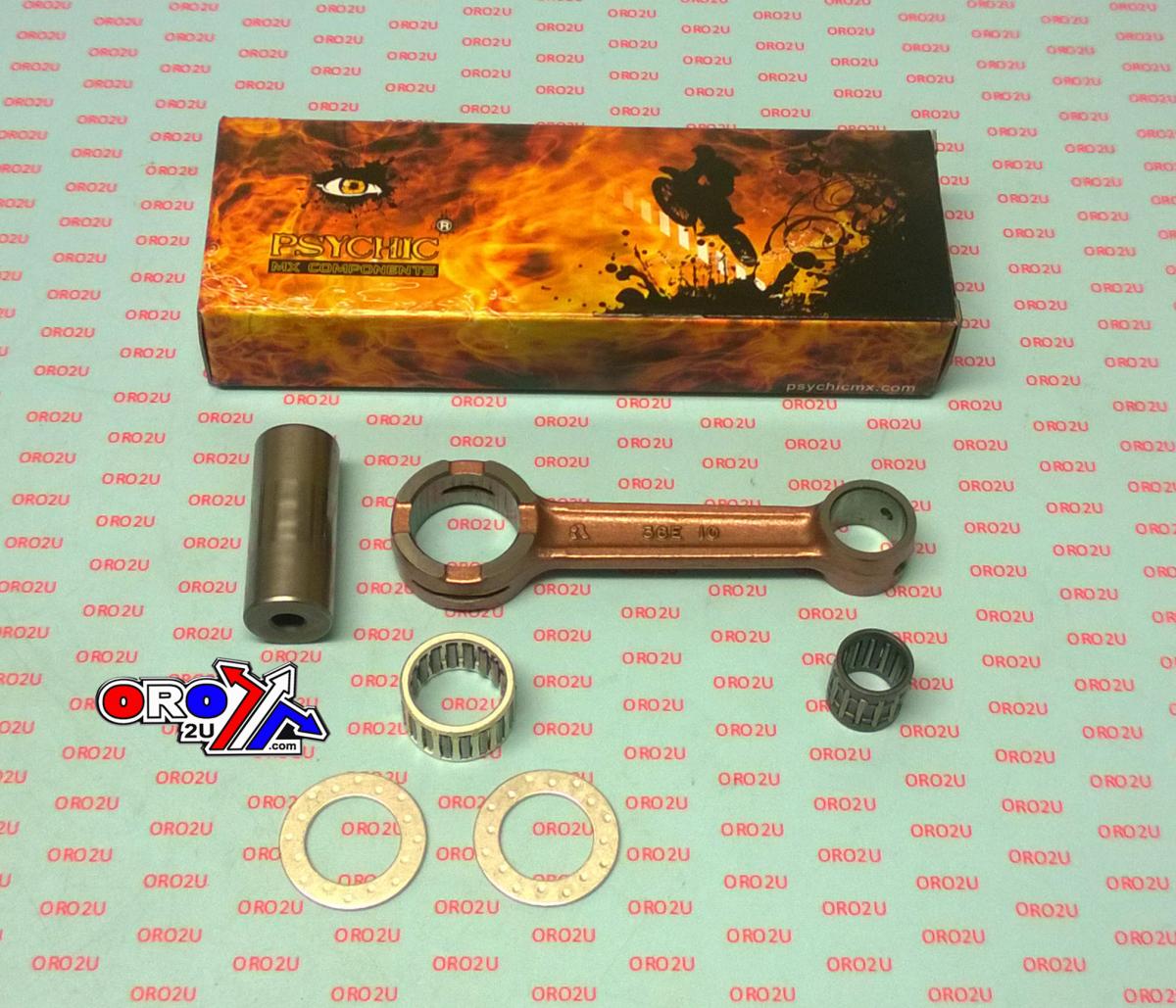

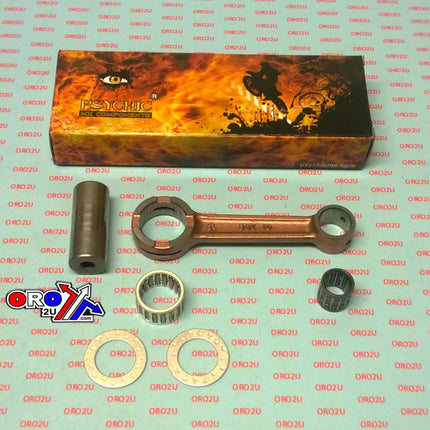

CONNECTING ROD REBUILD KIT PSYCHCI MX-09057
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| MM |
| Centre 2 Centre | 102 |
| Small End Bearing | 15x19x20
|
| Small End Bore Ø | 19
|
| Small End Width | 17.90
|
| Big End Bearing | 22x28x16 |
| Big End Bore Ø | 28
|
| Big End Width | 15.90
|
| Big End Pin Ø | 22
|
| Big End Pin Length | 52.90
|
| Washer Thickness |
22x42X1
|
Part No. 56-117.DR (radhouse.co.uk)
Cross reference numbers ONLY.
RS-3203, 12161-43D00, HOT RODS 8159, WOSSNER P2013, WISECO WPR177, PSYCHIC MX-09057, PROX 03.3219
Big End Bearing (mm): 22x28x16
Big End Bore (mm): 28.00
Big End Width (mm): 15.90
Center To Center (mm): 102.00
Pin Diameter (mm): 22.00
Pin Length (mm): 52.90
Small End Bearing (mm): 15x19x20
Small End Bore (mm): 19.00
Small End Width (mm): 17.90SIZE
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
RM 125 |
1999-2003 |
