Description
SUZUKI
RM125 1999 - 2003,

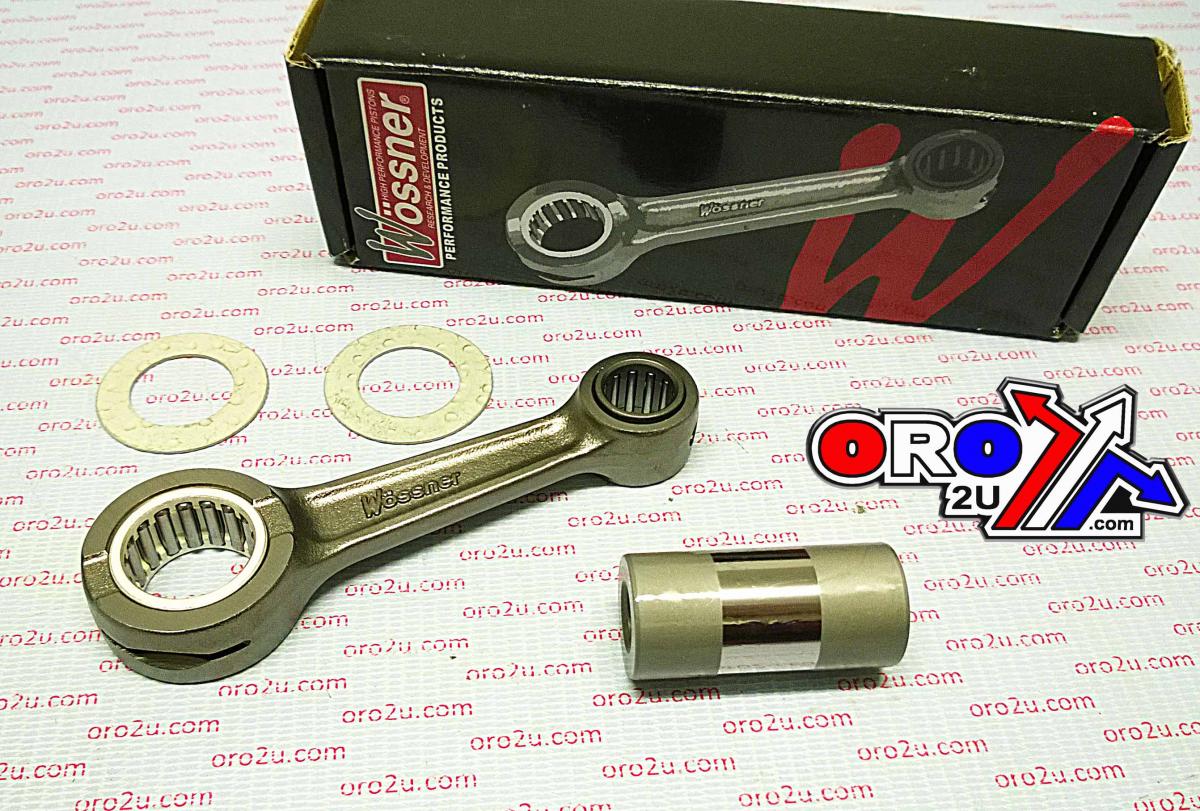

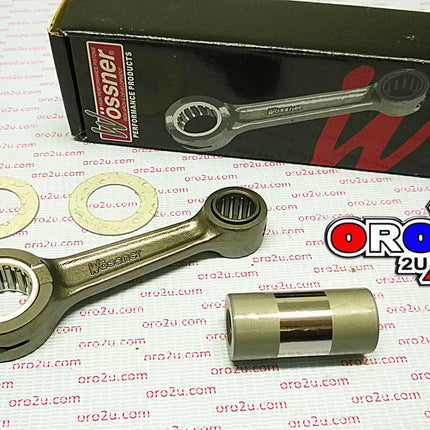

CONNECTING CONROD REBUILD KIT. WOSSNER P2013
MADE IN GERMANY
Wossners forged high performance connecting rods provide the highest quality for maximum performance and reliability.
The connecting rods are made of the best material which is CNC machined to remove all surface imperfections. The rods are then machined to final size and has then been shot- peened to achieve the ultimate in strength and durability. Made in Germany.
| MM |
| Centre 2 Centre | 102 |
| Small End Bearing | 15x19x20
|
| Small End Bore Ø | 19
|
| Small End Width | 17.90
|
| Big End Bearing | 22x28x16 |
| Big End Bore Ø | 28
|
| Big End Width | 15.90
|
| Big End Pin Ø | 22
|
| Big End Pin Length | 52.90
|
| Washer Thickness |
22x42X1
|
Part No. 56-117.WO (radhouse.co.uk)
Cross reference numbers ONLY.
RS-3203, 12161-43D00, HOT RODS 8159, WOSSNER P2013, WISECO WPR177, PSYCHIC MX-09057, PROX 03.3219
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
RM 125 |
1999-2003 |
