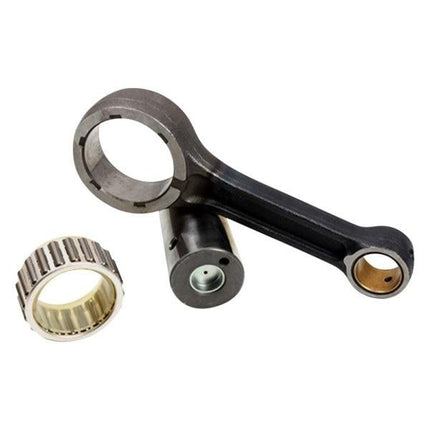

Name: Connecting Rod 99-08 TRX400EX, Bronco AT-09250 Honda ATV
Brand: Namura Technologies
SKU: 56-189.DR
Price: 161.0 GBP

Connecting Rod 99-08 TRX400EX, Bronco AT-09250 Honda ATV

Namura Technologies
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

HONDA ATV

TRX400EX 1999-2008,
TRX400X 2009-2014,
CB400 Falcon
NX400 NX4 NX
XR400
CB400SS

CONNECTING ROD REBUILD KIT BRONCO AT-09250,

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Specifications

Center To Center (mm): 122.6
Big End Bearing (mm): 34x43x20
Big End Bore (mm): 43
Big End Width (mm): 21
Big End Pin Diameter (mm): 34
Big End Pin Length (mm): 66.2
Small End Bearing (mm): None.
Small End Bore (mm): 20
Small End Width (mm): 19
Washer Thickness (mm): None.

Part No. 56-189.DR (radhouse.co.uk)

Cross reference numbers ONLY.

PROX 03.1499,
13000-HN1-000 /
13000-MBV-730,

Assemblies where 13000-MBV-730 is used

1999 TRX400EXA FOURTRAX 400EX (VIN# 478TE230-XA000001 To 478TE230-XA099999) - Crankshaft + Piston
2000 TRX400EXA FOURTRAX 400EX (VIN# 478TE230-Y4000001 To 478TE230-Y4099999) - Crankshaft + Piston
2001 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-14100001 To 478TE230-14199999) - Crankshaft + Piston
2002 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-24200001 To 478TE230-24299999) - Crankshaft + Piston
2003 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-34300001 To 478TE230-34399999) - Crankshaft + Piston
2004 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-44400001 To 478TE230-44499999) - Crankshaft + Piston
2005 TRX400EXA SPORTRAX 400EX (VIN# 1HFTE230-54500001~) - Crankshaft + Piston
2006 TRX400EXA SPORTRAX 400EX (VIN# 1HFTE230-64600001~) - Crankshaft + Piston
2007 TRX400EXA TRX400EX (VIN# 1HFTE230-74700001 To 1HFTE230-74799999) - Crankshaft + Piston
2008 TRX400EXA TRX400EX (VIN# 1HFTE230-84800001 To 1HFTE230-84899999) - Crankshaft + Piston
2009 TRX400X3A TRX400X (VIN# 1HFTE234-94900001 To 1HFTE234-94999999) - Crankshaft + Piston
2009 TRX400XA TRX400X (VIN# 1HFTE230-94900001 To 1HFTE230-94999999) - Crankshaft + Piston
2012 TRX400XA TRX400X (VIN# 1HFTE230-C4300001 To 1HFTE230-C4399999) - Crankshaft + Piston
2013 TRX400XAC TRX400X (VIN# 1HFTE230-D4400001 To 1HFTE230-D4499999) - Crankshaft + Piston
2014 TRX400XAC TRX400X (VIN# 1HFTE230-F4600001~) - Crankshaft + Piston
1999 TRX400EXA FOURTRAX 400EX (VIN# 478TE230-XA000001 To 478TE230-XA099999) - Crankshaft + Piston
2000 TRX400EXA FOURTRAX 400EX (VIN# 478TE230-Y4000001 To 478TE230-Y4099999) - Crankshaft + Piston
2001 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-14100001 To 478TE230-14199999) - Crankshaft + Piston
2002 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-24200001 To 478TE230-24299999) - Crankshaft + Piston
2003 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-34300001 To 478TE230-34399999) - Crankshaft + Piston
2004 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-44400001 To 478TE230-44499999) - Crankshaft + Piston
2005 TRX400EXA SPORTRAX 400EX (VIN# 1HFTE230-54500001~) - Crankshaft + Piston
2006 TRX400EXA SPORTRAX 400EX (VIN# 1HFTE230-64600001~) - Crankshaft + Piston
2007 TRX400EXA TRX400EX (VIN# 1HFTE230-74700001 To 1HFTE230-74799999) - Crankshaft + Piston
2008 TRX400EXA TRX400EX (VIN# 1HFTE230-84800001 To 1HFTE230-84899999) - Crankshaft + Piston
2009 TRX400X3A TRX400X (VIN# 1HFTE234-94900001 To 1HFTE234-94999999) - Crankshaft + Piston
2009 TRX400XA TRX400X (VIN# 1HFTE230-94900001 To 1HFTE230-94999999) - Crankshaft + Piston
2012 TRX400XA TRX400X (VIN# 1HFTE230-C4300001 To 1HFTE230-C4399999) - Crankshaft + Piston
2013 TRX400XAC TRX400X (VIN# 1HFTE230-D4400001 To 1HFTE230-D4499999) - Crankshaft + Piston
2014 TRX400XAC TRX400X (VIN# 1HFTE230-F4600001~) - Crankshaft + Piston

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	TRX X 400	2009-2014
HONDA	TRX EX 400	1999-2008
HONDA	TRX X 400	2009-2013
