Description
ATV (ARCTIC CAT)
2009-17 550 H1/TRV/GT/LTD/ALTERRA/XR/XT,
2005-12 650 H1/TBX/TRV/4X4,
2008-18 700 H1/TBX/HDX/XR/ALTERRA/VLX,
UTV (ARCTIC CAT)
2009-15 550 PROWLER/XT,
2006-09 650 PROWLER,
2008-17 700 PROWLER,

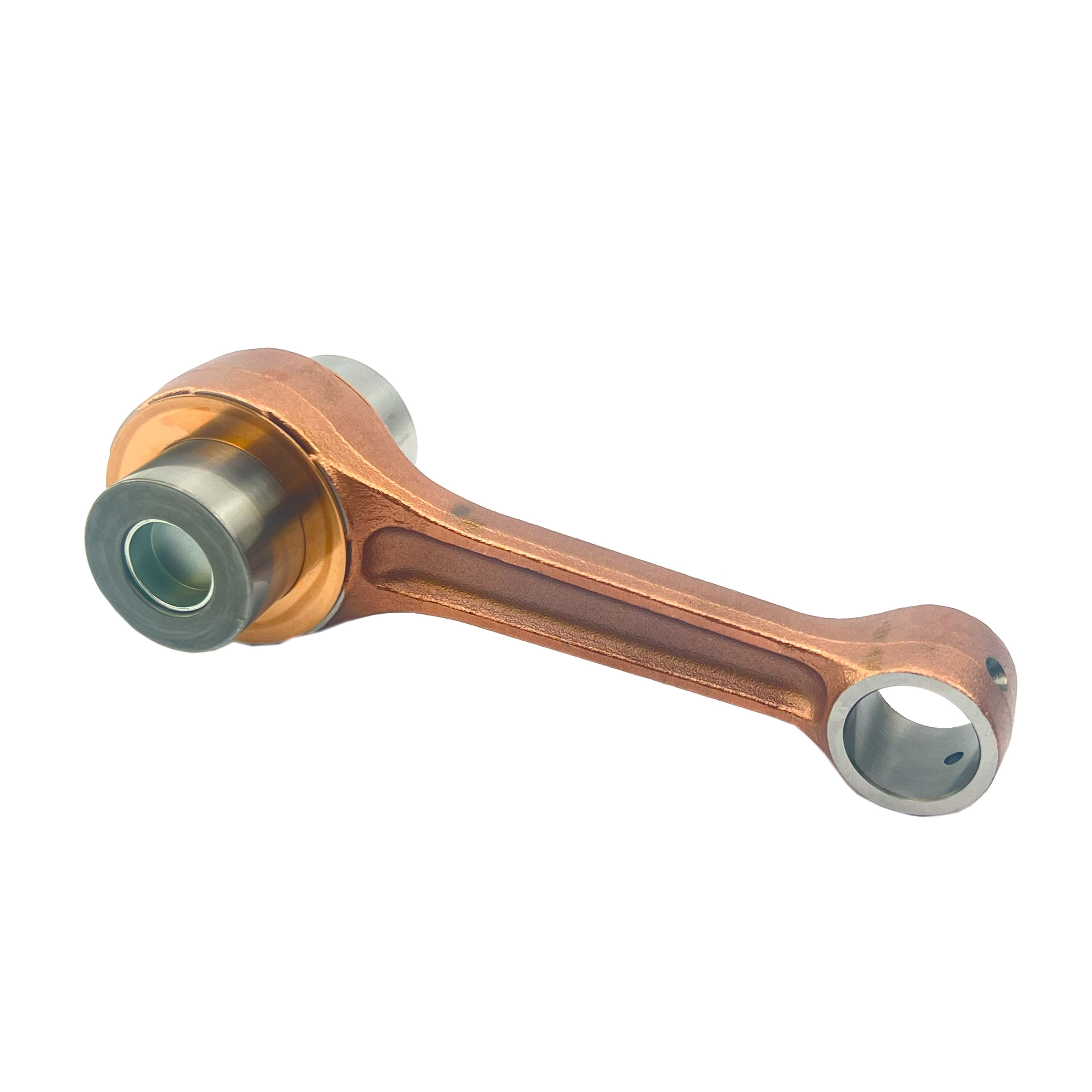

CONNECTING ROD REBUILD KIT BRONCO AT-09411
CENTER-TO-CENTER 139.8mm,
Big Bore 47x25mm,
Small Bore 23x25mm,
Brottom Bearing 37x47x24.80mm,
Washers 37.44x55x1.0mm,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Part No. 56-0357.BR (radhouse.co.uk)
Cross reference numbers ONLY.
0805-032, 0805-073, 0805-278, 0805-286, 0805-325, 0805-3
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| ARCTIC CAT |
XT 550 |
2009-2015 |
| ARCTIC CAT |
XT 550 |
2009-2017 |
| ARCTIC CAT |
TRV 550 |
2009-2017 |
| ARCTIC CAT |
TRV 650 |
2005-2012 |
| ARCTIC CAT |
TBX 650 |
2005-2012 |
| ARCTIC CAT |
TBX 700 |
2008-2018 |
| ARCTIC CAT |
H1 650 |
2005-2014 |
| ARCTIC CAT |
H1 700 |
2008-2018 |
| ARCTIC CAT |
GT 550 |
2009-2017 |
| ARCTIC CAT |
ALTERRA TRV 550 |
2009-2017 |
| ARCTIC CAT |
ALL 650 |
2006-2009 |
| ARCTIC CAT |
ALL 700 |
2008-2017 |
