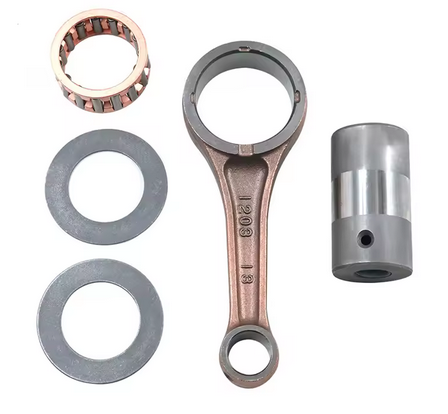

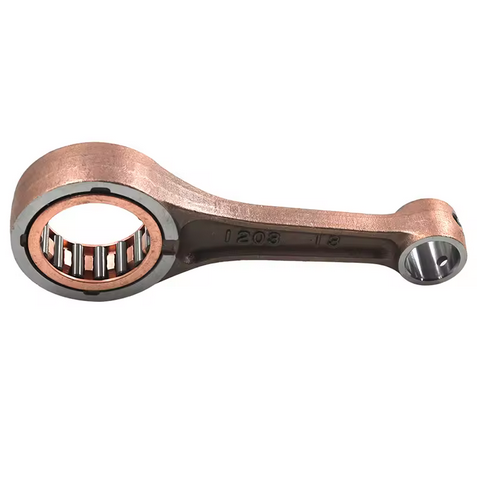

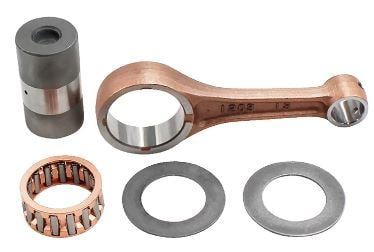

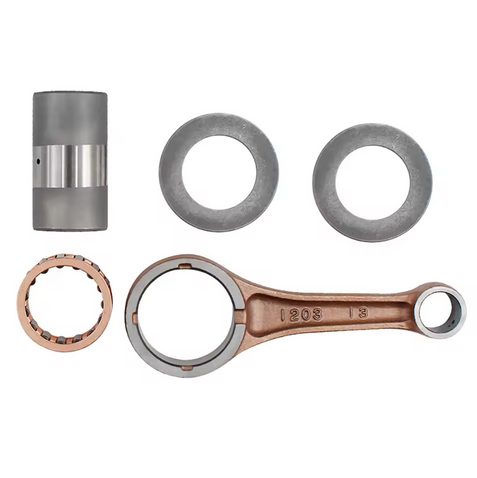

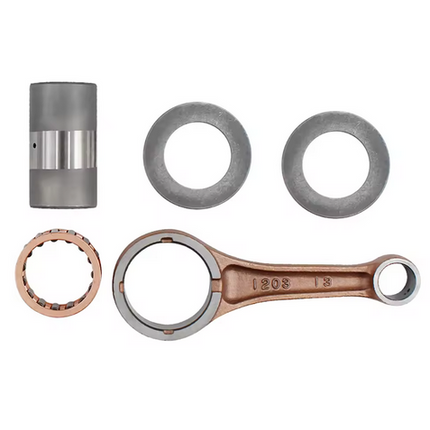

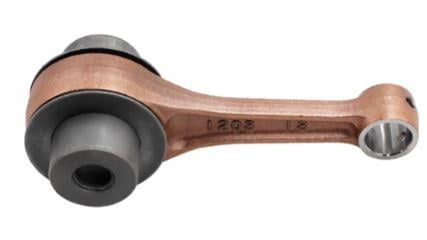

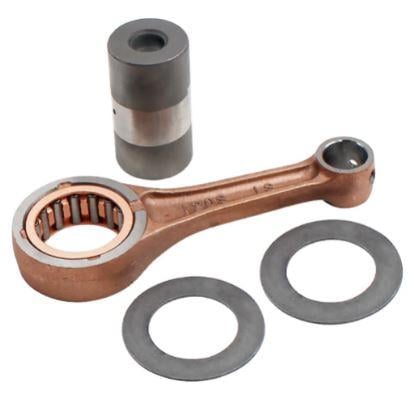

Connecting Rod Assembly Kit 1992-2017 Kawasaki KLX250 KLX300 13101-1253

Description

This connecting rod (crank rod) kit is manufactured to tight tolerances to support accurate fit and long-term reliability. Built to OEM specification, it is a direct replacement and supplied with dimensions detailed below for correct assembly.

Features

  • Meets or exceeds OEM quality
  • Direct OEM replacement
  • Manufactured to the tightest tolerances for an accurate fit
  • Cost-effective option
  • Please check the image before ordering to avoid mistakes
  • Easy to install; professional assistance recommended if unsure

Specifications

  • Centre to centre: 107 mm
  • Small end bore Ø: 17 mm
  • Small end width: 18.00 mm
  • Big end bearing: 32 × 41 × 17.75 mm
  • Big end bore Ø: 41 mm
  • Big end width: 18.00 mm
  • Big end pin Ø: 32 mm
  • Big end pin length: 58.60 mm
  • Washer thickness: 32 × 52 × 1.20 mm
  • Overall length of rod: 145 mm

Cross-Reference OEM Part Numbers

  • 13031-1427

Vehicle Fitments

  • Kawasaki KLX250 (1992–2017)
  • Kawasaki KLX300 (1996–2007)

Connecting Rod Assembly Kit 1992-2017 Kawasaki KLX250 KLX300 13101-1253

Product form

This connecting rod (crank rod) kit is manufactured to tight tolerances to support accurate fit and long-term reliability. Built to... Read more

Out of stock

£161.94 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-0011.AAA

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This connecting rod (crank rod) kit is manufactured to tight tolerances to support accurate fit and long-term reliability. Built to OEM specification, it is a direct replacement and supplied with dimensions detailed below for correct assembly.

    Features

    • Meets or exceeds OEM quality
    • Direct OEM replacement
    • Manufactured to the tightest tolerances for an accurate fit
    • Cost-effective option
    • Please check the image before ordering to avoid mistakes
    • Easy to install; professional assistance recommended if unsure

    Specifications

    • Centre to centre: 107 mm
    • Small end bore Ø: 17 mm
    • Small end width: 18.00 mm
    • Big end bearing: 32 × 41 × 17.75 mm
    • Big end bore Ø: 41 mm
    • Big end width: 18.00 mm
    • Big end pin Ø: 32 mm
    • Big end pin length: 58.60 mm
    • Washer thickness: 32 × 52 × 1.20 mm
    • Overall length of rod: 145 mm

    Cross-Reference OEM Part Numbers

    • 13031-1427

    Vehicle Fitments

    • Kawasaki KLX250 (1992–2017)
    • Kawasaki KLX300 (1996–2007)
