Description
Huaqvarna
CR125 WR125 1997 - 2013,
CR150 2011,
Connecting rod rebuild kit
ROD SIZE 105MM, BIG END 30 X 16MM, SMALL END 19 X 16 MM, WASHER : 24.2 X 39 X 1MM, BIG BEARING: 24 X 30 X 15.7 MM, SMALL BEARING: 15 X 19 X 17.2MM, PIN 24 X 55.3 MM

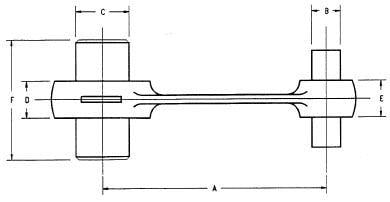

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 105, B = 15, C = 24, D = 16, E = 16, F = 55.3
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

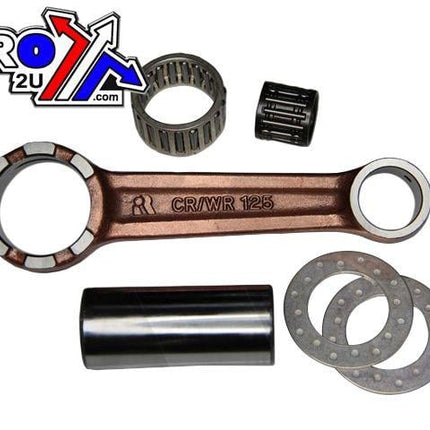

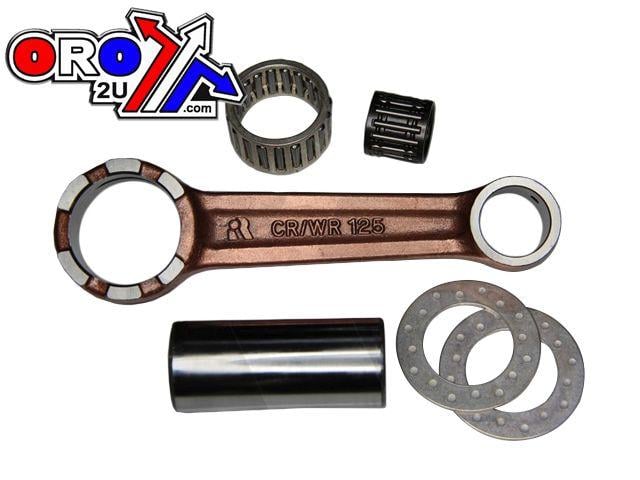

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Cross Reference Numbers Only:
RO-8209, MX-09065
Part No. 56-105.DR (radhouse.co.uk)
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HUSQVARNA |
WR 125 |
1997-2013 |
| HUSQVARNA |
CR 125 |
1997-2013 |
| HUSQVARNA |
CR 150 |
2011 |
