Name: Connecting Rod Kit 03-08 KTM Sx Pro Junior Senior 50 65 45030015500
Brand: Dirt Racing
SKU: 56-960.DR
Price: 65.94 GBP
Availability: InStock

Connecting Rod Kit 03-08 KTM Sx Pro Junior Senior 50 65 45030015500

Dirt Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

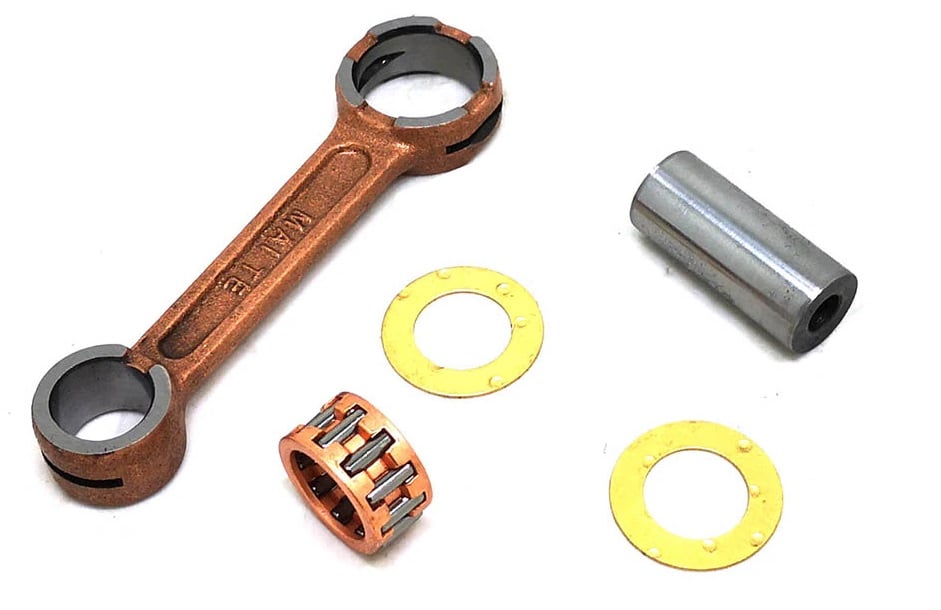

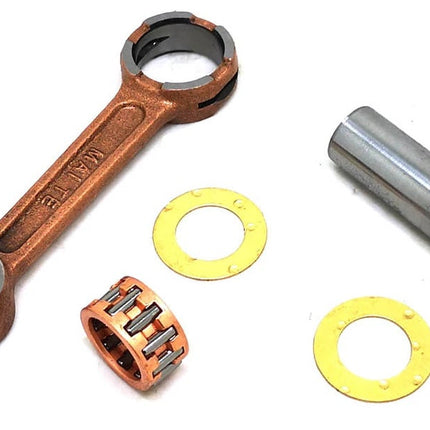

This connecting conrod rebuild kit is an OE replacement connecting rod assembly for KTM SX65 2003-2008 models and KTM 50 SX Mini 1997-2002 models fitted with the Franco Morini engine. It is designed for crankshaft rebuilding and is supplied as a complete rod assembly with the required crankpin, crankpin bearing, top end bearing and thrust washers where applicable.

Features

Heavy-duty OE replacement connecting rod
Designed for crankshaft rebuild applications
Uses a caged needle roller bearing design for high-RPM operation
Supplied complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers where required
Compatible with aftermarket and OE crankshafts

Specifications

Material: SNCM220 chrome alloy steel
Crankpin material: hot-rolled ASTM steel, case hardened
Thrust washer material: bronze phosphor with silver coating
Centre to centre: 88 mm
Small end bearing: 12 x 15 x 16.3 mm
Small end bore diameter: 15 mm
Small end width: 13 mm
Big end bearing: 18 x 24 x 14.8 mm
Big end bore diameter: 24 mm
Big end width: 14.90 mm
Big end pin diameter: 18 mm
Big end pin length: 42 mm
Washer thickness: 1.00 mm

Cross-Reference OEM Part Numbers

KTM: 46030015100
KTM: 45030015500
Hot Rods: 8626
ProX: 03-6023
Wossner: P2002
Psychic: MX-09039

Vehicle Fitments

KTM SX65, 2003-2008
KTM 50 SX Mini, 1997-2002, fitted with Franco Morini engine

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 65	2000-2008
KTM	SX 65	2003-2008

Connecting Rod Kit 03-08 KTM Sx Pro Junior Senior 50 65 45030015500

Dirt Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This connecting conrod rebuild kit is an OE replacement connecting rod assembly for KTM SX65 2003-2008 models and KTM 50... Read more

1 in stock 1-2 business days

£65.94 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-960.DR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This connecting conrod rebuild kit is an OE replacement connecting rod assembly for KTM SX65 2003-2008 models and KTM 50 SX Mini 1997-2002 models fitted with the Franco Morini engine. It is designed for crankshaft rebuilding and is supplied as a complete rod assembly with the required crankpin, crankpin bearing, top end bearing and thrust washers where applicable.

Features

Heavy-duty OE replacement connecting rod
Designed for crankshaft rebuild applications
Uses a caged needle roller bearing design for high-RPM operation
Supplied complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers where required
Compatible with aftermarket and OE crankshafts

Specifications

Material: SNCM220 chrome alloy steel
Crankpin material: hot-rolled ASTM steel, case hardened
Thrust washer material: bronze phosphor with silver coating
Centre to centre: 88 mm
Small end bearing: 12 x 15 x 16.3 mm
Small end bore diameter: 15 mm
Small end width: 13 mm
Big end bearing: 18 x 24 x 14.8 mm
Big end bore diameter: 24 mm
Big end width: 14.90 mm
Big end pin diameter: 18 mm
Big end pin length: 42 mm
Washer thickness: 1.00 mm

Cross-Reference OEM Part Numbers

KTM: 46030015100
KTM: 45030015500
Hot Rods: 8626
ProX: 03-6023
Wossner: P2002
Psychic: MX-09039

Vehicle Fitments

KTM SX65, 2003-2008
KTM 50 SX Mini, 1997-2002, fitted with Franco Morini engine

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 65	2000-2008
KTM	SX 65	2003-2008
