Name: Connecting Rod Kit 80-86 Honda Atc Xl Xr Trx Big Red Fourtrax S Es M X 125 185 200
Brand: Dirt Racing
SKU: 56-994

Connecting Rod Kit 80-86 Honda Atc Xl Xr Trx Big Red Fourtrax S Es M X 125 185 200

Dirt Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

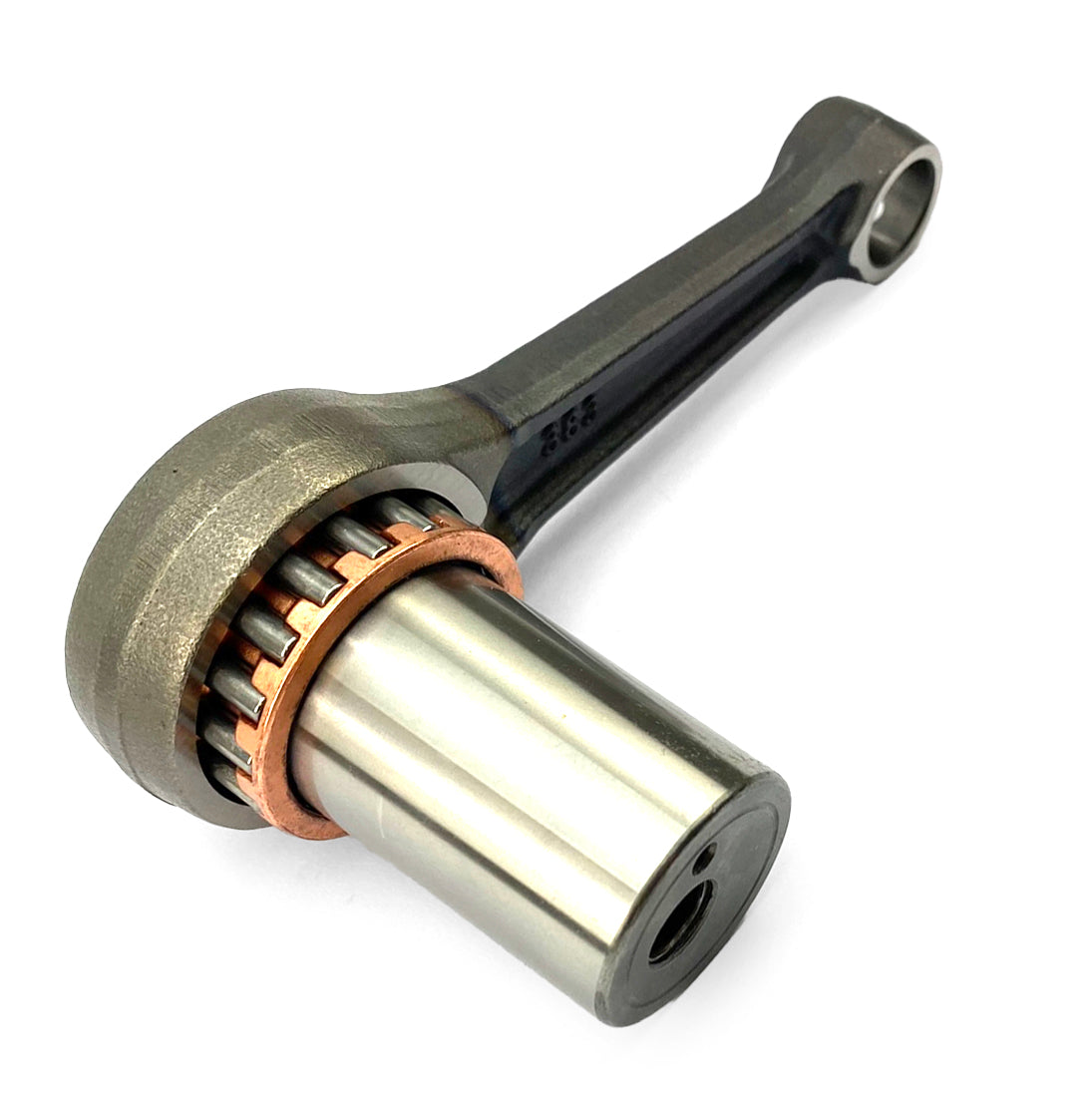

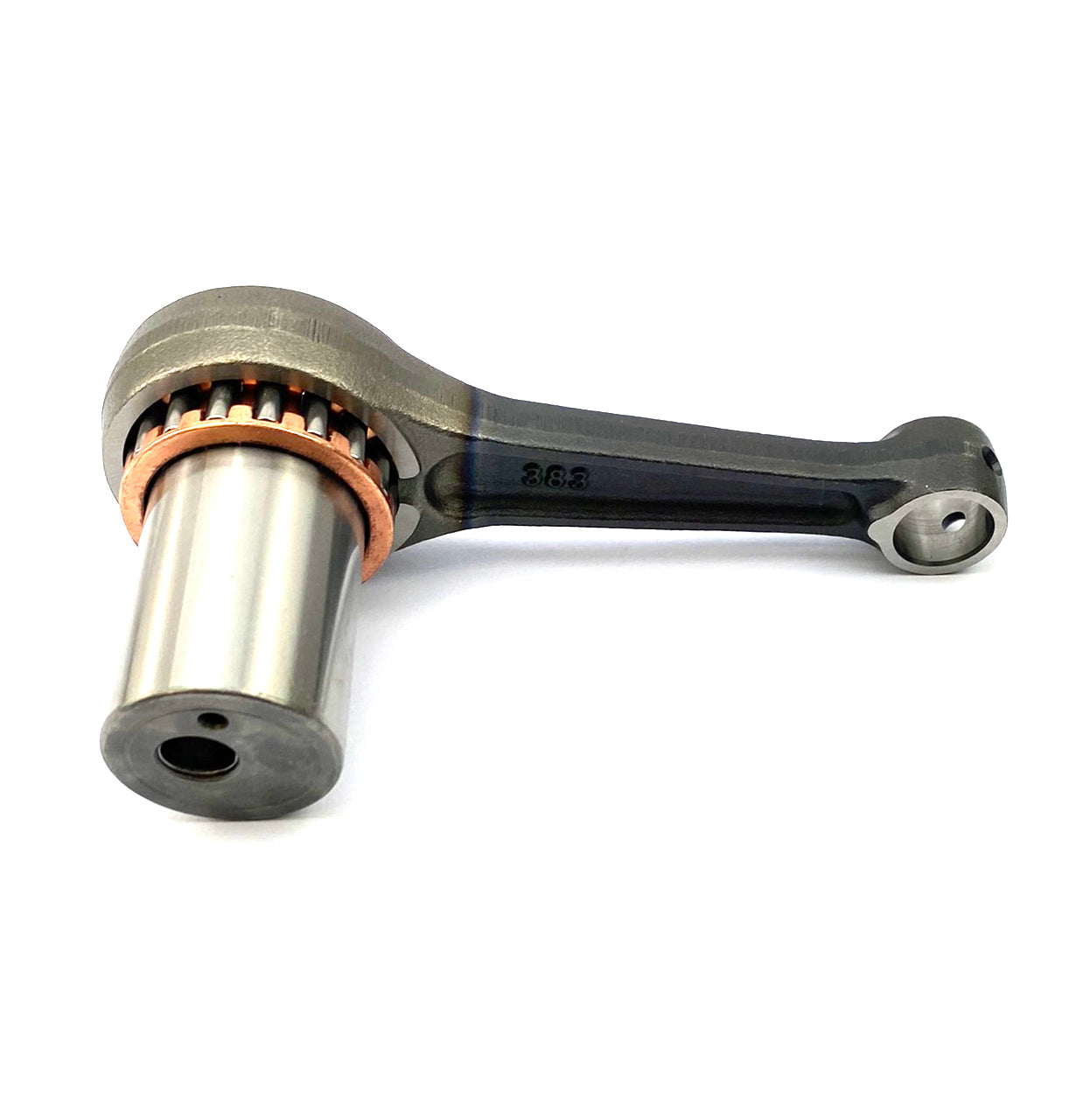

This connecting rod rebuild kit is designed for selected Honda XL, XR, ATC and TRX 125 cc to 200 cc engines. It is used during crankshaft and bottom-end rebuilds to replace the connecting rod assembly and related bearing components, helping restore OEM-style fit, appearance and mounting position.

Features

OE replacement connecting rod kit for engine rebuild applications.
Direct OEM-style replacement using stock mounting locations.
Supplied as a complete rod assembly with rod, crankpin, crankpin bearing, top-end bearing and thrust washers where required.
Compatible with aftermarket and OE crankshafts.
Designed to handle increased power loads.
Made to OEM specifications and matched to original equipment appearance.
Designed as a cost-effective replacement option.
Professional installation is recommended if the installer is unsure.
Product image should be checked before ordering to avoid specification or fitment errors.

Specifications

Material: SNCM220 chrome alloy steel.
Crankpin material: hot-rolled ASTM steel, case hardened.
Bearing design: caged needle roller bearing.
Thrust washer material: phosphor bronze, silver coated.
Centre-to-centre length: 103.50 mm.
Small end bearing: none.
Small end bore diameter: 15 mm.
Small end width: 16 mm.
Big end bearing: 30 x 38 x 15.80 mm.
Big end bore diameter: 38 mm.
Big end width: 16 mm.
Big end pin diameter: 30 mm.
Big end pin length: 54.00 mm.
Washer thickness: none.

Cross-Reference OEM Part Numbers

56-994.DR
VA-1005 [103]
VA-1004
RH-1020 [437]
13201-437-300
13202-437-300
ProX 03.1253
L23-11010
JH12

Vehicle Fitments

Honda XL125S
Honda XL185
Honda XR200
Honda ATC185, 1980
Honda ATC185S, 1981-1983
Honda ATC200, 1981-1983
Honda ATC200ES Big Red, 1984
Honda ATC200M, 1984-1985
Honda ATC200S Big Red, 1984-1986
Honda ATC200X, 1983-1985
Honda TRX200 Fourtrax 200, 1984

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	XL 185	1979-1983
HONDA	ATC 185	1980-1986
HONDA	ATC 200	1980-1986
HONDA	XL 125	1979-1983

Connecting Rod Kit 80-86 Honda Atc Xl Xr Trx Big Red Fourtrax S Es M X 125 185 200

Dirt Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This connecting rod rebuild kit is designed for selected Honda XL, XR, ATC and TRX 125 cc to 200 cc... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-994

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This connecting rod rebuild kit is designed for selected Honda XL, XR, ATC and TRX 125 cc to 200 cc engines. It is used during crankshaft and bottom-end rebuilds to replace the connecting rod assembly and related bearing components, helping restore OEM-style fit, appearance and mounting position.

Features

OE replacement connecting rod kit for engine rebuild applications.
Direct OEM-style replacement using stock mounting locations.
Supplied as a complete rod assembly with rod, crankpin, crankpin bearing, top-end bearing and thrust washers where required.
Compatible with aftermarket and OE crankshafts.
Designed to handle increased power loads.
Made to OEM specifications and matched to original equipment appearance.
Designed as a cost-effective replacement option.
Professional installation is recommended if the installer is unsure.
Product image should be checked before ordering to avoid specification or fitment errors.

Specifications

Material: SNCM220 chrome alloy steel.
Crankpin material: hot-rolled ASTM steel, case hardened.
Bearing design: caged needle roller bearing.
Thrust washer material: phosphor bronze, silver coated.
Centre-to-centre length: 103.50 mm.
Small end bearing: none.
Small end bore diameter: 15 mm.
Small end width: 16 mm.
Big end bearing: 30 x 38 x 15.80 mm.
Big end bore diameter: 38 mm.
Big end width: 16 mm.
Big end pin diameter: 30 mm.
Big end pin length: 54.00 mm.
Washer thickness: none.

Cross-Reference OEM Part Numbers

56-994.DR
VA-1005 [103]
VA-1004
RH-1020 [437]
13201-437-300
13202-437-300
ProX 03.1253
L23-11010
JH12

Vehicle Fitments

Honda XL125S
Honda XL185
Honda XR200
Honda ATC185, 1980
Honda ATC185S, 1981-1983
Honda ATC200, 1981-1983
Honda ATC200ES Big Red, 1984
Honda ATC200M, 1984-1985
Honda ATC200S Big Red, 1984-1986
Honda ATC200X, 1983-1985
Honda TRX200 Fourtrax 200, 1984

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	XL 185	1979-1983
HONDA	ATC 185	1980-1986
HONDA	ATC 200	1980-1986
HONDA	XL 125	1979-1983
