Name: Connecting Rod Kit 83-06 Kawasaki Suzuki Kfx Kdx Lt Lt-a Alt Jr 50 12161-07901 13032-S006
Brand: Dirt Racing
SKU: 56-248.DR
Price: 51.2 GBP
Availability: InStock

Connecting Rod Kit 83-06 Kawasaki Suzuki Kfx Kdx Lt Lt-a Alt Jr 50 12161-07901 13032-S006

Dirt Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

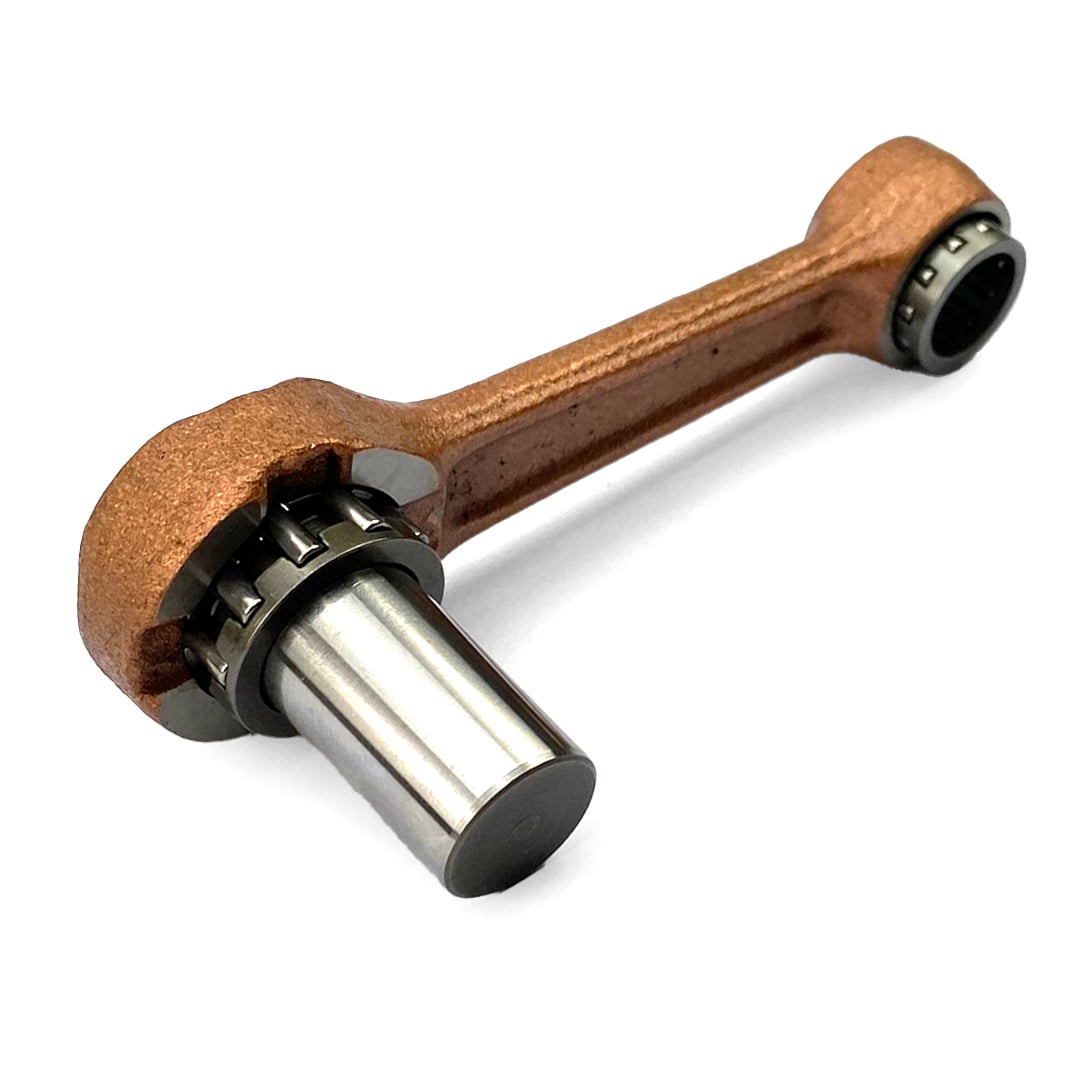

This connecting rod rebuild kit is designed for selected Kawasaki and Suzuki 50 cc ATV and mini bike engines, providing the internal components required when rebuilding or replacing the engine connecting rod assembly. The kit is supplied as a complete rod assembly set for use with compatible original equipment and aftermarket crankshafts, and includes the connecting rod, big end pin, big end bearing and small end bearing.

Features

OE replacement connecting rod kit
Designed for engine connecting rod rebuilds
Meets or exceeds OEM quality requirements
Suitable for use with compatible aftermarket and OE crankshafts
Uses a caged needle roller bearing design for high-rpm durability
Crankpin supplied for big end assembly
Supplied with big end and small end bearings
Check the product image before ordering to avoid incorrect fitment

Specifications

Material: SNCM220 chrome alloy steel
Crankpin material: hot-rolled ASTM steel
Crankpin finish: case hardened
Thrust washer material: phosphor bronze
Thrust washer finish: silver coated
Centre to centre length: 80 mm
Small end bearing: 12 x 16 x 15.60 mm
Small end bore diameter: 16 mm
Small end width: 12 mm
Big end bearing: 15 x 21 x 10 mm
Big end bore diameter: 21 mm
Big end width: 10 mm
Big end pin diameter: 15 mm
Big end pin length: 30.80 mm
Washer thickness: None
Included components: connecting rod, big end pin, big end bearing, small end bearing

Cross-Reference OEM Part Numbers

56-248.DR
RA-30007
L23-31010
AT-09170
VA-3001
12161-07901
13032-S006
162324
8603
421-8603

Vehicle Fitments

Kawasaki KFX50, 2003-2006
Kawasaki KDX50
Suzuki LT50 Quadrunner, 1984-1990
Suzuki LT-A50 Quadmaster, 2002-2006
Suzuki ALT50 Trailbuddy, 1983-1984
Suzuki JR50

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KFX 50	2003-2006
SUZUKI	ALT 50	1983-1984
SUZUKI	LT A 50	2002-2006
SUZUKI	LT 50	1984-1990
