Name: Connecting Rod Kit 85mm 50cc Scooter, Athena S410485321001
Brand: Athena
SKU: 56-6601.ATH
Price: 105.06 GBP
Availability: InStock

Connecting Rod Kit 85mm 50cc Scooter, Athena S410485321001

Athena
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

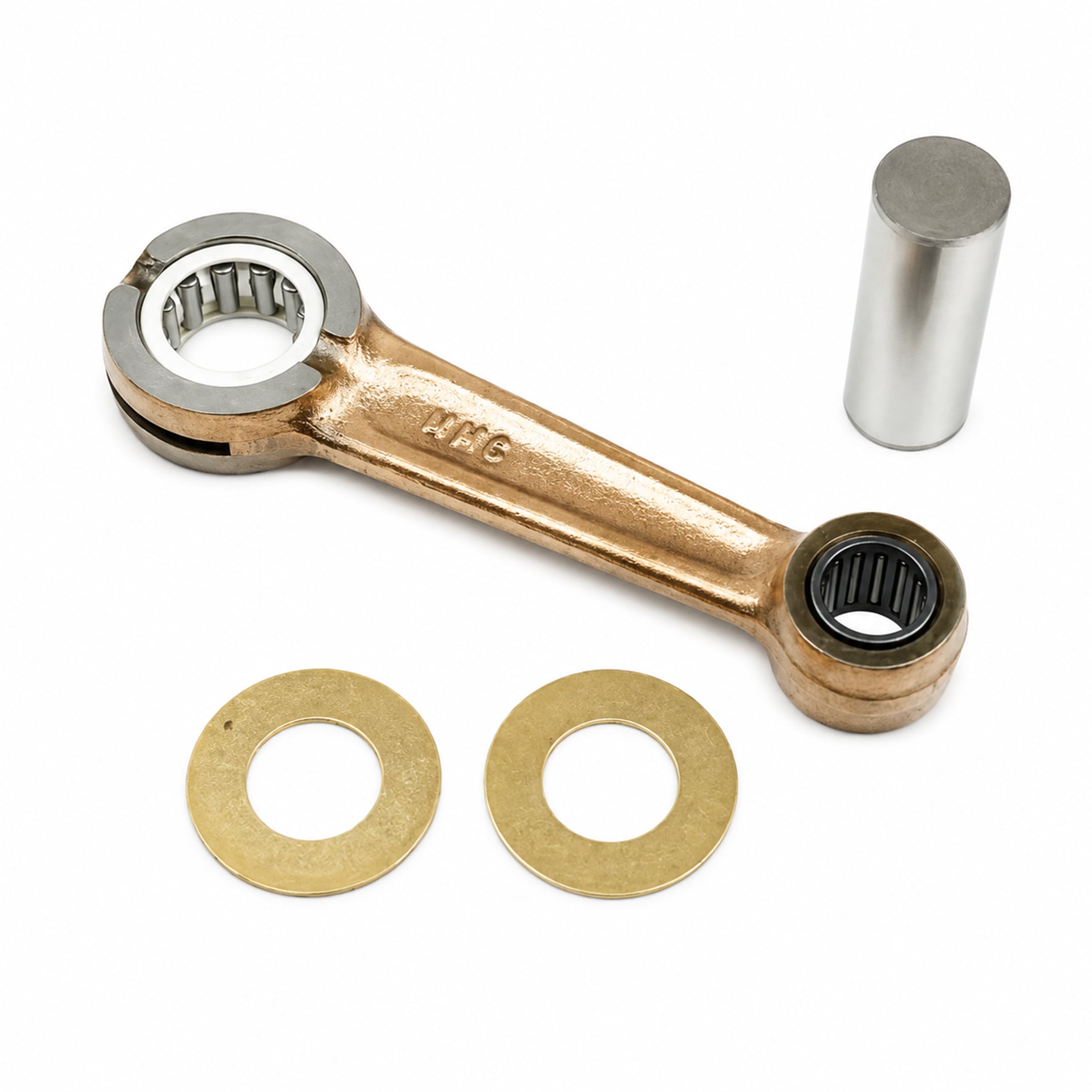

ATHENA Connecting Rod Kit 85 mm Center to Center - S410485321001

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

Big End Bearing (mm) 16x22x12
Big End Bore (mm) 22.00
Big End Pin Diameter (mm) 25.00
Big End Width (mm) 12.00
Center To Center (mm) 85.00
Net Weight (Kg) 0.21
Piston Pin Diameter (mm) 15.00
Small End Bearing (mm) 12x15x15
Washer Thickness (mm) 1.00

Vehicle compatibility

APRILIA AMICO 50 cc
APRILIA AREA 51 LC 50 cc
APRILIA GULLIVER 50 cc
APRILIA GULLIVER LC 50 cc
APRILIA RALLY 50 cc
APRILIA RALLY LC 50 cc
APRILIA SCARABEO 50 cc
APRILIA SONIC 50 cc
APRILIA SONIC GP 50 cc
APRILIA SR FINO 1994 MOT. VERT 50 cc
APRILIA SR LC 50 cc
APRILIA SR NETSCAPER LC 50 cc
APRILIA SR RACING LC 50 cc
APRILIA SR REPLICA ARIA 50 cc
APRILIA SR REPLICA LC 50 cc 1999
APRILIA SR STEALTH LC 50 cc
APRILIA SR WWW 50 cc
ATALA CAROSELLO 50 cc
BENELLI 491 GT AIR COOLED 50 cc
BENELLI 491 NAKED 50 cc
BENELLI 491 RACING LC 50 cc
BENELLI 491 RR LC 50 cc
BENELLI 491 SP LC 50 cc
BENELLI 491 SPORT LC 50 cc
BENELLI 491 ST 50 cc
BENELLI K2 50 cc
BENELLI K2 LC 50 cc
BENELLI PEPE 50 cc
BENELLI PEPE LX 50 cc 2003/2004
BETA ARK 50 cc
BETA ARK LC 50 cc
BETA ARK PRO RACE LC 50 cc
BETA EIKON LC 50 cc
BETA QUADRA CHRONO 2 50 cc
BETA TEMPO 50 cc
BRANDY JAGUAR 50 cc
BRANDY JT 50 cc
BS'V DIO JX 50 cc
BS VILLA AX 50 cc
BS VILLA DIO GZ 50 cc
FANTIC PONY SR 50 cc
GARELLI BIG WHEEL 50 cc
GARELLI PONY 50 cc
GARELLI SR 50 cc
ITALJET ASCOT 50 cc
ITALJET ASTRA 50 cc
ITALJET BA ZOOKA 1 50 cc
ITALJET DRAGSTER LC 50 cc
ITALJET PISTA1 50 cc
ITALJET PISTA 2 YANKEE 50 cc
ITALJET REPORTER 50 cc
ITALJET SCOOP 2/3 50 cc
KL CLUB 50 cc
KL RACER 50 cc
KOTIR SR 50 cc
KTM CHRONO 50 cc
KTM GO 50 cc
KTM K 50 cc
LEM FLASH 50 cc
LEM GHIBLI 50 cc
LEM TORNADO SS1 50 cc
MACAL CY STING 50 cc
MACAL THUNDER 50 cc
MALAGUTI CENTRO BASE 50 cc
MALAGUTI CENTRO SL 50 cc
MALAGUTI CENTRO SL KAT 50 cc
MALAGUTI CIAK 50 cc
MALAGUTI CIAK MASTER 50 cc 2004
MALAGUTI CIAK MONO EURO 2 2.3 50 cc
MALAGUTI CIAK MONO EURO 2 50 cc
MALAGUTI CIAK TD 50 cc
MALAGUTI F10 JET LINE / KAT 50 cc
MALAGUTI F10 RESTYLING EU1 50 cc
MALAGUTI F10 RESTYLING / EURO2-2.3 50 cc
MALAGUTI F10 RESTYLING EURO2 50 cc
MALAGUTI F12 PHANTOM 50 cc
MALAGUTI F12 PHANTOM EURO1 50 cc
MALAGUTI F12 PHANTOM EURO1 LC 50 cc
MALAGUTI F12 PHANTOM KAT 50 cc
MALAGUTI F12 PHANTOM LC 50 cc
MALAGUTI F12 PHANTOM LC KAT 50 cc
MALAGUTI F12 PHANTOM LC TWIN DISK 50 cc
MALAGUTI F12 PHANTOM RESTYLING EU1 50 cc
MALAGUTI F12 PHANTOM RESTYLING EU1 LC 50 cc 2001/2002
MALAGUTI F12 PHANTOM RESTYLING EU2-2.3 50 cc
MALAGUTI F12 PHANTOM RESTYLING EU2-2.3 LC 50 cc 2003/2004
MALAGUTI F12 PHANTOM RESTYLING EU2 50 cc
MALAGUTI F12 PHANTOM RESTYLING EU2 LC 50 cc 2002
MALAGUTI F15 FIREFOX AC 50 cc 2005
MALAGUTI F15 FIREFOX EURO2 50 cc
MALAGUTI F15 FIRE FOX LC / KAT 50 cc
MALAGUTI F15 FIREFOX RESTYLING EURO2-2.3 50 cc 2003/2004
MALAGUTI F15 FIREFOX TWIN DISKS DIGIT LC KAT 50 cc
MALAGUTI F15 FIREFOX TWIN DISKS & SPECIAL LC 50 cc
MALAGUTI F15 RESTYLING EURO2 LC 50 cc 2004/2005
MALAGUTI F15 TDS RESTYLING EURO1 LC 50 cc
MALAGUTI YESTERDAY-YESTERDAY EURO 50 cc
MBK ACTIVE 50 cc
MBK BOOSTER CW 50 cc
MBK BOOSTER CW L 50 cc
MBK BOOSTER CW L SPIRIT 50 cc
MBK BOOSTER CW NAKED 50 cc
MBK BOOSTER CW R ROAD 50 cc
MBK BOOSTER CW RS NG 50 cc
MBK BOOSTER CW RS NG EURO1 50 cc
MBK BOOSTER CW RSP ROCKET 50 cc
MBK BOOSTER CW RSX TRACK 50 cc
MBK BOOSTER CW SPIRIT 50 cc
MBK BOOSTER CW SPIRIT EURO2 50 cc
MBK BOOSTER CW SP SPIRIT EURO2 50 cc
MBK CR Z TARGET 50 cc
MBK CS MACH EU2 50 cc 2002/2004
MBK CS MACH G 50 cc 2002/2003
MBK CT S / SS SORRISO 50 cc
MBK EW STUNT 50 cc
MBK HOT CHAMP 50 cc
MBK YA EQUALIS 50 cc
MBK YA R FORTE 50 cc
MBK YA TA NEW SORRISO 50 cc
MBK YE EVOLIS 50 cc
MBK YH FLIPPER 50 cc
MBK YH FLIPPER CAT 50 cc
MBK YH FLIPPER EURO2 50 cc
MBK YM FIZZ 50 cc
MBK YN R OVETTO 50 cc
MBK YN R OVETTO EURO1 50 cc
MBK YN R OVETTO EURO2 50 cc
MBK YQ L NITRO JAGUAR 50 cc 2004
MBK YQ NITRO EURO2 50 cc
MBK YQ NITRO LC / CAT 50 cc 2004
MOTRON STING 50 cc
MOTRON SYNCRO 50 cc
MOTRON THUNDER 50 cc
PGO BIG MAX / SPORT 50 cc
PGO SUPER FIFTY 50 cc
RIEJU FIRST ARIA 50 cc
RIEJU WINDY 50 cc
SUNDOWN SUPER FIFTY 50 cc
YAMAHA BW'S BUMP 50 cc
YAMAHA BW'S NAKED 50 cc
YAMAHA BW'S NEXT GENERATION 50 cc
YAMAHA BW'S NEXT GENERATION KAT 50 cc
YAMAHA BW'S ORIGINAL / SPY 50 cc
YAMAHA BW'S R 50 cc
YAMAHA CR Z TARGET 50 cc
YAMAHA CS JOG R EURO2 50 cc
YAMAHA CT SUPER SPORT 50 cc
YAMAHA CW BW'S ORIGINAL EURO2 50 cc
YAMAHA CW L BW'S 50 cc
YAMAHA CW RS SPY 50 cc
YAMAHA EW SLIDER 50 cc
YAMAHA JOG 50 cc
YAMAHA JOG ER 50 cc
YAMAHA YA R AXIS 50 cc
YAMAHA YA ZA JOG Z 50 cc
YAMAHA YE ZEST 50 cc
YAMAHA YH WHY 50 cc 1999/2000
YAMAHA YH WHY EURO1 50 cc
YAMAHA YH WHY EURO2 50 cc 2005
YAMAHA YM BREEZE 50 cc
YAMAHA YN NEO'S EURO2 50 cc
YAMAHA YN R NEO'S / OVETTO 50 cc
YAMAHA YQ AEROX LC 50 cc 1997/2002
YAMAHA YQ L AEROX EURO2 50 cc
YAMAHA YW50 ZUMA 50 cc

Part No. 56-6601.ATH (radhouse.co.uk)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HUSQVARNA	FE 250	2014-2016
HUSQVARNA	FC 250	2014-2015
HUSABERG	FE 250	2014
