Description
Yamaha
YZ125 1986-1996,

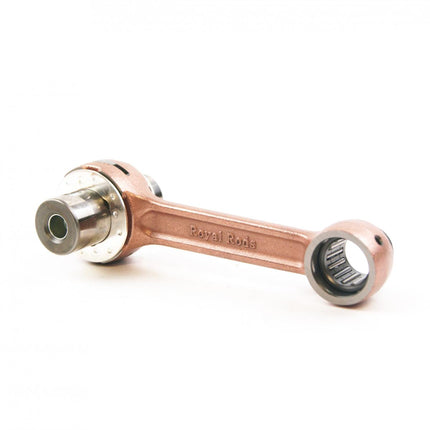

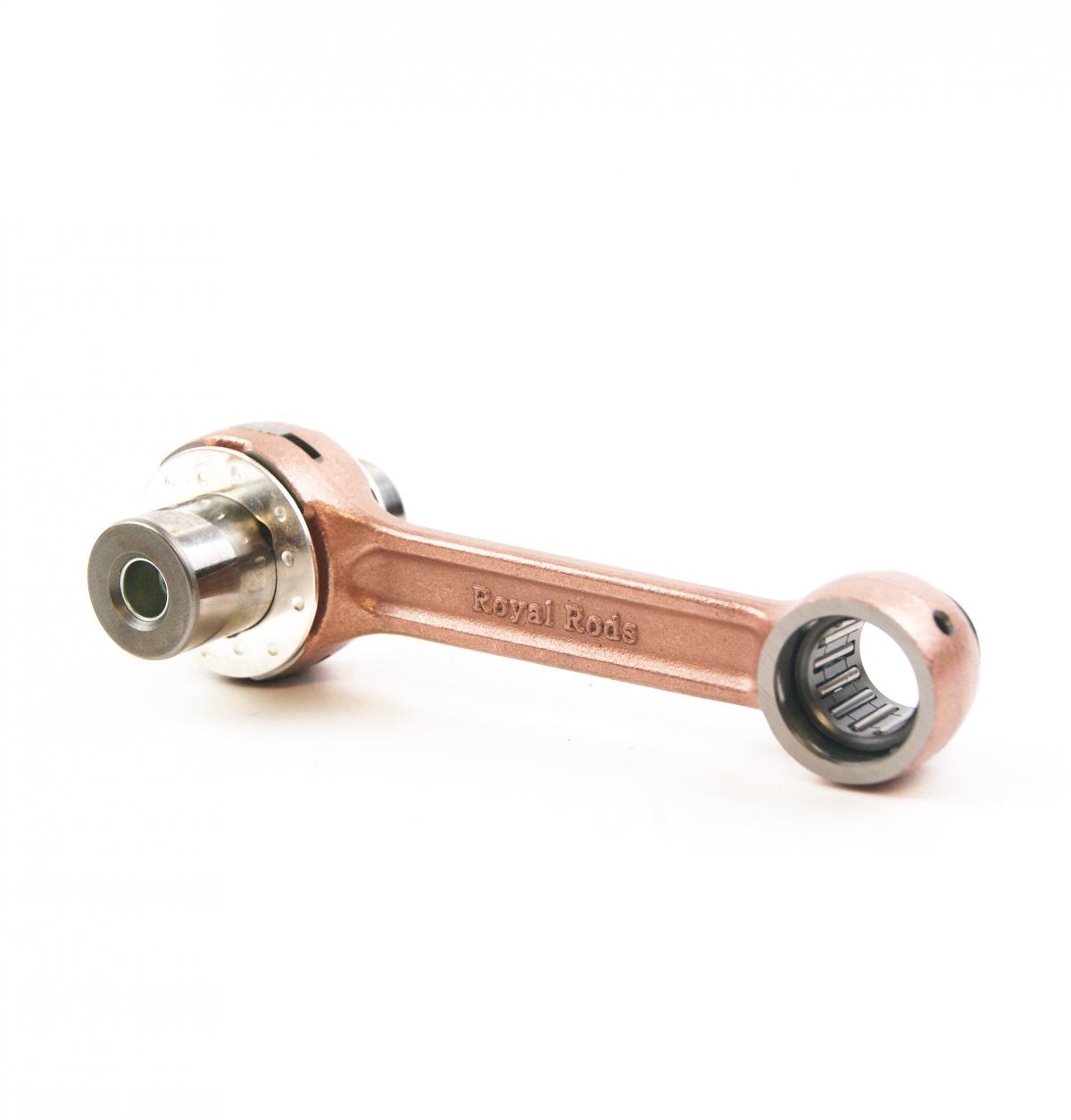

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09077
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 105 |
| Small End Bearing | 16x20x19.5 |
| Small End Bore Ø | 20 |
| Small End Width | 17 |
| Big End Bearing | 22x29x16.8
|
| Big End Bore Ø | 29 |
| Big End Width | 17
|
| Big End Pin Ø | 22 |
| Big End Pin Length | 55
|
| Washer Thickness | 1.00
|
Part No. 56-981.DR (radhouse.co.uk)
Cross reference numbers ONLY.
4PE-11651-02-00, PSYCHIC MX-09077, PROX 03.2217, WOSSNER P2047, HOTRODS 8104, YAMAHA: 1LX-11651-00-00, YAMAHA: 2HG-11651-00-00, YAMAHA: 4PE-11651-00-00, YAMAHA: 4PE-11651-01-00, YAMAHA: 4PE-11651-02-00,
56-981.ATH, 56-981.HR, 56-981.PROX, 56-981.WO
Small end Bearing. 16x20x19.50mm [09-B016-1],
Big end Bearing. 22x29x16.80mm [09-3101B],
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| YAMAHA |
YZ 125 |
1997-2000 |
| YAMAHA |
YZ 125 |
1986-1996 |
| YAMAHA |
YZ 125 |
1986-2000 |
| YAMAHA |
YZ 1LX 125 |
1986-1996 |
