Description
SUZUKI
RM250 1986-1995,
RMX250 1989-1998,
CONNECTING CONROD ROD REBUILD KIT. NAMURA MX-09053
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

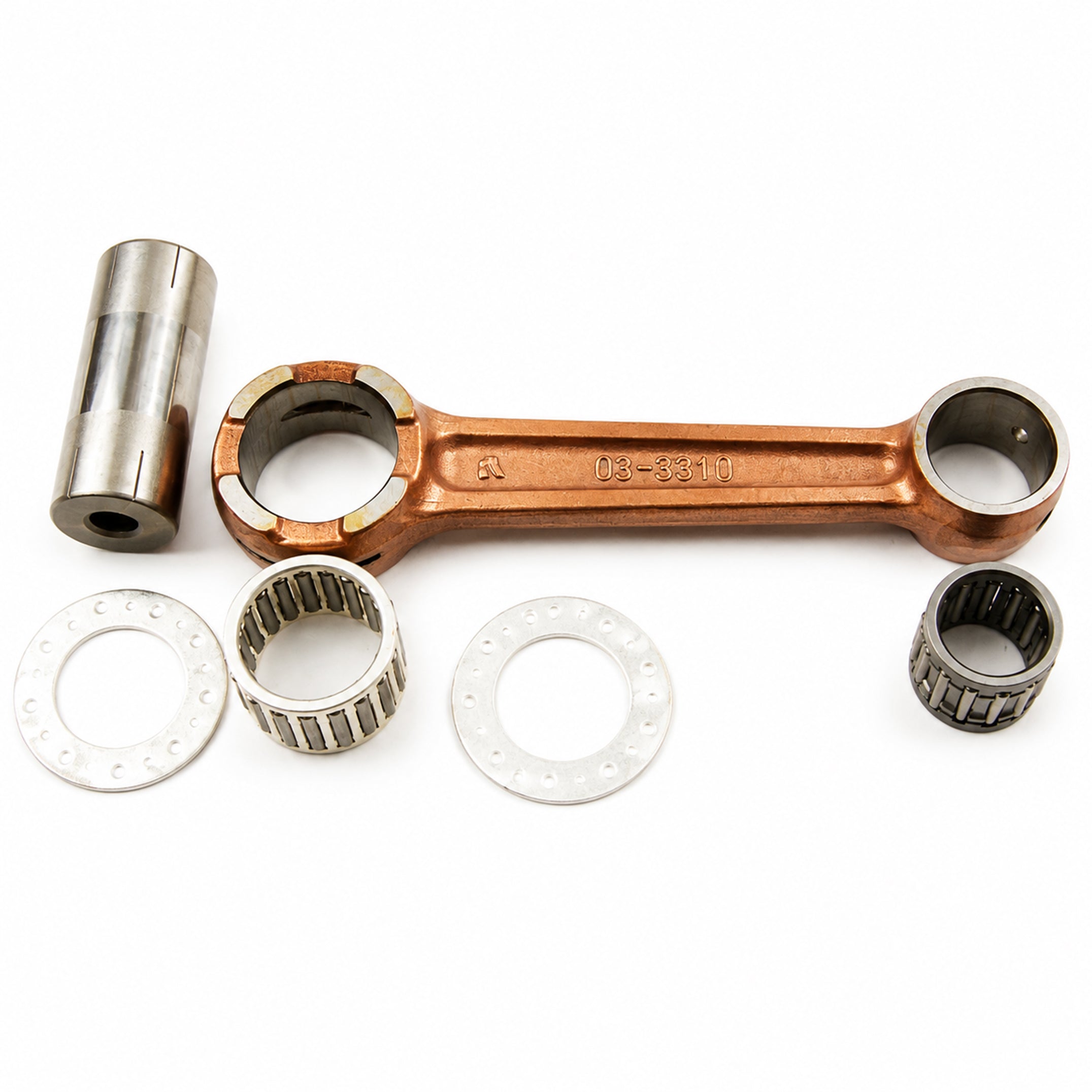

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 128 |
| Small End Bearing | 18x23x21.8 |
| Small End Bore Ø | 23 |
| Small End Width | 20 |
| Big End Bearing | 24x30x19.8
|
| Big End Bore Ø | 30
|
| Big End Width | 20
|
| Big End Pin Ø | 24
|
| Big End Pin Length | 58
|
| Washer Thickness | 24x40x1.5
|
Part No. 56-988.DR (radhouse.co.uk)
Cross Reference Numbers Only:
HOTRODS 8105 , SUZUKI: 12161-00B00, SUZUKI: 12161-05D00, SUZUKI: 12161-28C30, PROX 03-3310, WOSSNER P2027,
91 RM250 (M) 91 RM250 89 RM250 (K)
89 RM250 98 RMX250 (W) 98 RMX250 87 RM250 (H) 87 RM250 96 RMX250 (T) 96 RMX250 94 RMX250 (R) 94 RMX250
94 RM250 (R) 94 RM250 92 RM250 (N)
