Description
Big End Bearing (mm): 24x32x19.7
Big End Bore (mm): 32.00

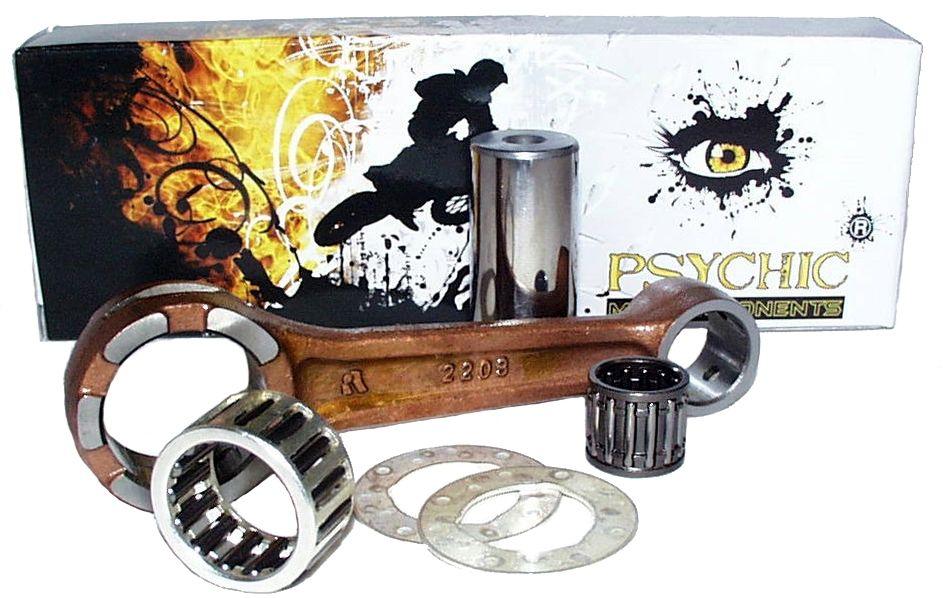

CONNECTING ROD CONROD REBUILD KIT PSYCHIC MX-09054
SUZUKI
RM250 1996 - 2002,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 125.50 |
| Small End Bearing | 18x23x22 |
| Small End Bore Ø | 23 |
| Small End Width | 20 |
| Big End Bearing | 24x30x19.8 |
| Big End Bore Ø | 30 |
| Big End Width | 20 |
| Big End Pin Ø | 24 |
| Big End Pin Length | 58.00 |
| Washer Thickness | 1.50 |
Part No. 56-879.DR (radhouse.co.uk)
Cross reference numbers.
MX-09054, 12161-37E00, WPR161, HOT RODS 8141, WOSSNER P2026,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
RM 250 |
1996-2002 |
