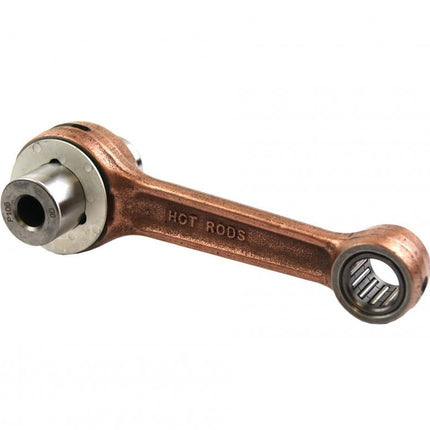

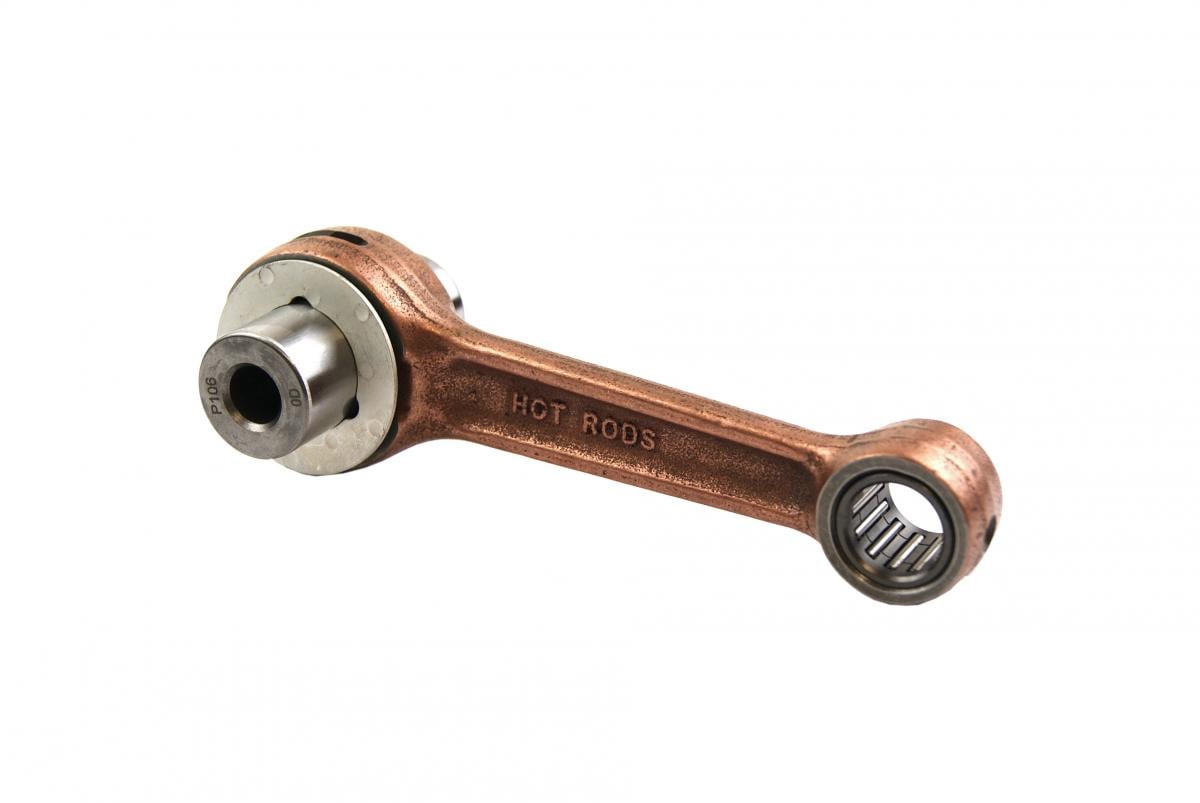

Name: Connecting Rod Kit 98-02 KX125, Hotrod 8140 Kawasaki MX
Brand: Hot Rods
SKU: 56-877.HR

Connecting Rod Kit 98-02 KX125, Hotrod 8140 Kawasaki MX

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Heavy-duty connecting rod kit designed for the Kawasaki KX125, offering a durable and high-performance solution for demanding applications. Manufactured to stringent standards, this kit provides excellent reliability and strength while minimizing high-rpm bearing race distortion.

Features:

Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional durability.
Advanced design incorporates strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.
Double-forged rods ensure improved grain flow and dimensional consistency.
Shot-peened and double-honed construction provides superior strength under heavy loads.
Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings increase lubricity and longevity.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Big End Bore (mm): 29.00
Big End Width (mm): Not specified
Center to Center (mm): 104.00
Pin Diameter (mm): 22.00
Pin Length (mm): 51.00
Small End Bore (mm): 19.00
Small End Width (mm): Not specified
Washer Thickness (mm): 1.00

Cross-Reference OEM Part Numbers:
KAWASAKI: 13032-0010, 13032-1225, 13032-1253

Vehicle Compatibility:

1998 Kawasaki KX125
1999 Kawasaki KX125
2000 Kawasaki KX125
2001 Kawasaki KX125
2002 Kawasaki KX125

Part Number: 56-877.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 125	1998-2002
KAWASAKI	KX 125	1988-2002

Connecting Rod Kit 98-02 KX125, Hotrod 8140 Kawasaki MX

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Heavy-duty connecting rod kit designed for the Kawasaki KX125, offering a durable and high-performance solution for demanding applications. Manufactured to... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-877.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Heavy-duty connecting rod kit designed for the Kawasaki KX125, offering a durable and high-performance solution for demanding applications. Manufactured to stringent standards, this kit provides excellent reliability and strength while minimizing high-rpm bearing race distortion.

Features:

Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional durability.
Advanced design incorporates strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.
Double-forged rods ensure improved grain flow and dimensional consistency.
Shot-peened and double-honed construction provides superior strength under heavy loads.
Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings increase lubricity and longevity.
Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Big End Bore (mm): 29.00
Big End Width (mm): Not specified
Center to Center (mm): 104.00
Pin Diameter (mm): 22.00
Pin Length (mm): 51.00
Small End Bore (mm): 19.00
Small End Width (mm): Not specified
Washer Thickness (mm): 1.00

Cross-Reference OEM Part Numbers:
KAWASAKI: 13032-0010, 13032-1225, 13032-1253

Vehicle Compatibility:

1998 Kawasaki KX125
1999 Kawasaki KX125
2000 Kawasaki KX125
2001 Kawasaki KX125
2002 Kawasaki KX125

Part Number: 56-877.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 125	1998-2002
KAWASAKI	KX 125	1988-2002
