Description

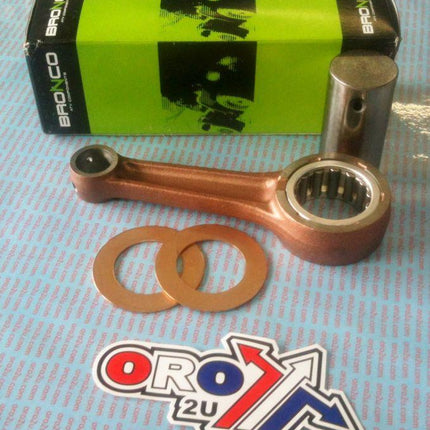

CONNECTING CONROD ROD REBUILD KIT BRONCO AT-09164,
KAWASAKI
95-00 Kawasaki KEF300 Lakota 300,
01-03 Kawasaki KEF 300 Lakota Sport,
86-04 Kawasaki KLF300 Bayou 300,
89-05 Kawasaki KLF300 Bayou 4x4,
99-02 Kawasaki KVF300 Prairie 300 4x4,
99-02 Kawasaki KVF300 Prairie 300,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 117 |
| Small End Bearing | None |
| Small End Bore Ø | 18 |
| Small End Width | 18
|
| Big End Bearing | 32x43x22.5 |
| Big End Bore Ø | 43 |
| Big End Width | 22.6
|
| Big End Pin Ø | 32 |
| Big End Pin Length | 58.10
|
| Washer Thickness |
32x52x1.2
|
Part No. 56-250.DR (radhouse.co.uk)
Cross reference numbers ONLY.
Vesrah VA4008 / VA-4008, 13044-5066
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| KAWASAKI |
KLF BAYOU 300 |
1986-2004 |
| KAWASAKI |
KLF BAYOU 300 |
1989-2005 |
| KAWASAKI |
KVF PRAIRIE 300 |
1999-2002 |
| KAWASAKI |
KEF 300 |
1995-2003 |
| KAWASAKI |
KEF 300 |
1995-2000 |
| KAWASAKI |
KEF 300 |
2001-2003 |
| KAWASAKI |
KLF BAYOU 300 |
1986-2005 |
