Description
KAWASAKI
KXF250 KX250F 2004-2009,
SUZUKI
RM-Z250 RMZ250 2004-2018,

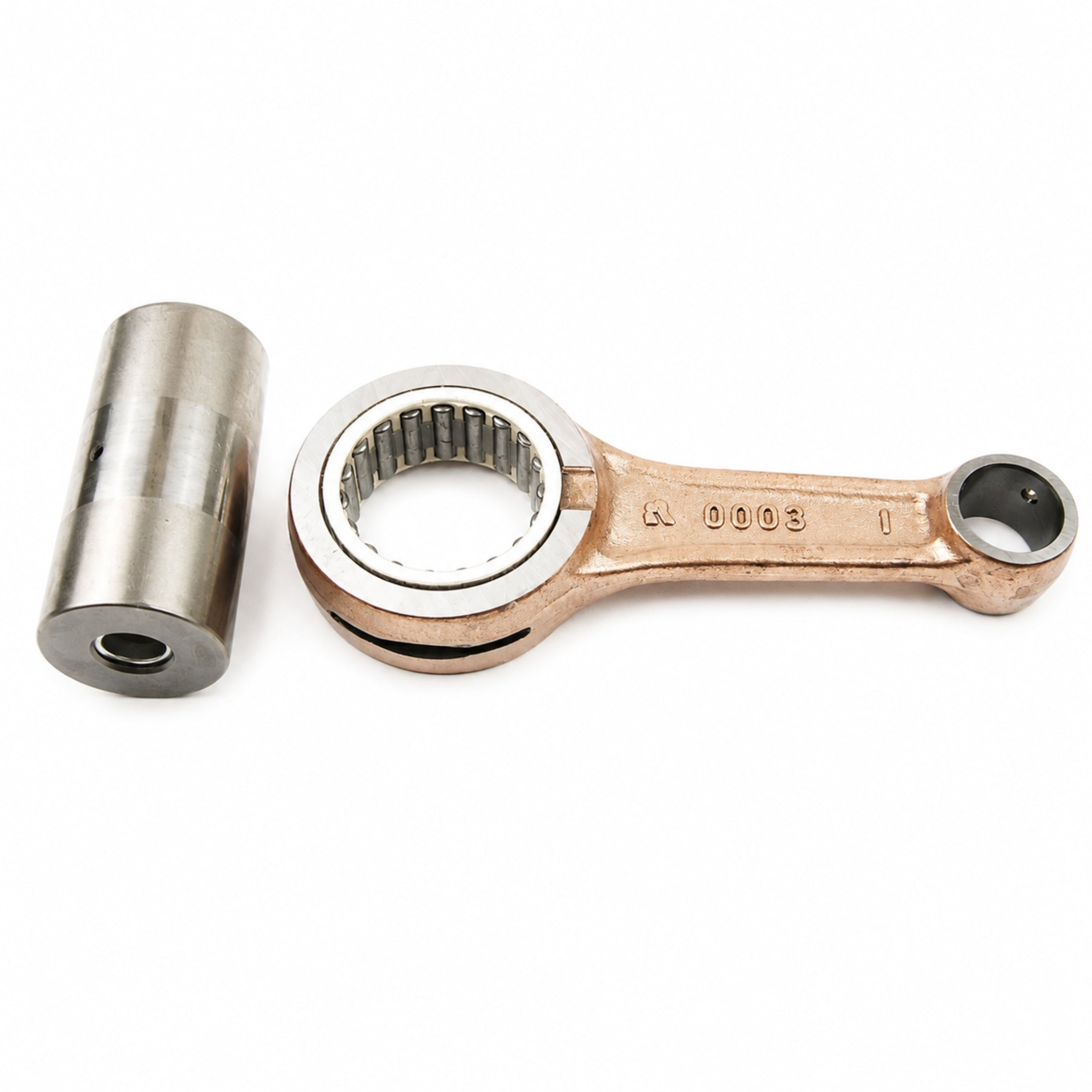

CONNECTING CONROD ROD REBUILD KIT. NAMURA MX-09050
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 92.50 |
| Small End Bearing | None |
| Small End Bore Ø | 16 |
| Small End Width | 15.00 |
| Big End Bearing | 30x38x18.8 |
| Big End Bore Ø | 38 |
| Big End Width | 19.00
|
| Big End Pin Ø | 30 |
| Big End Pin Length | 55.00
|
| Washer Thickness | 1.00
|
Part No. 56-936.DR (radhouse.co.uk)
Cross reference numbers ONLY.
ATHENA P40321029 HOTROD 8622, WOSSNER P4002, WISECO WPR201, PSYCHIC MX-09050, KAWASAKI: 13032-0003, KAWASAKI: 13032-0047, SUZUKI: K1303-20003, SUZUKI: K1303-20047, 56-936_HR,
