Description
KAWASAKI
KXF250 KX250F 2004-2009,
SUZUKI
RM-Z250 RMZ250 2004-2018,

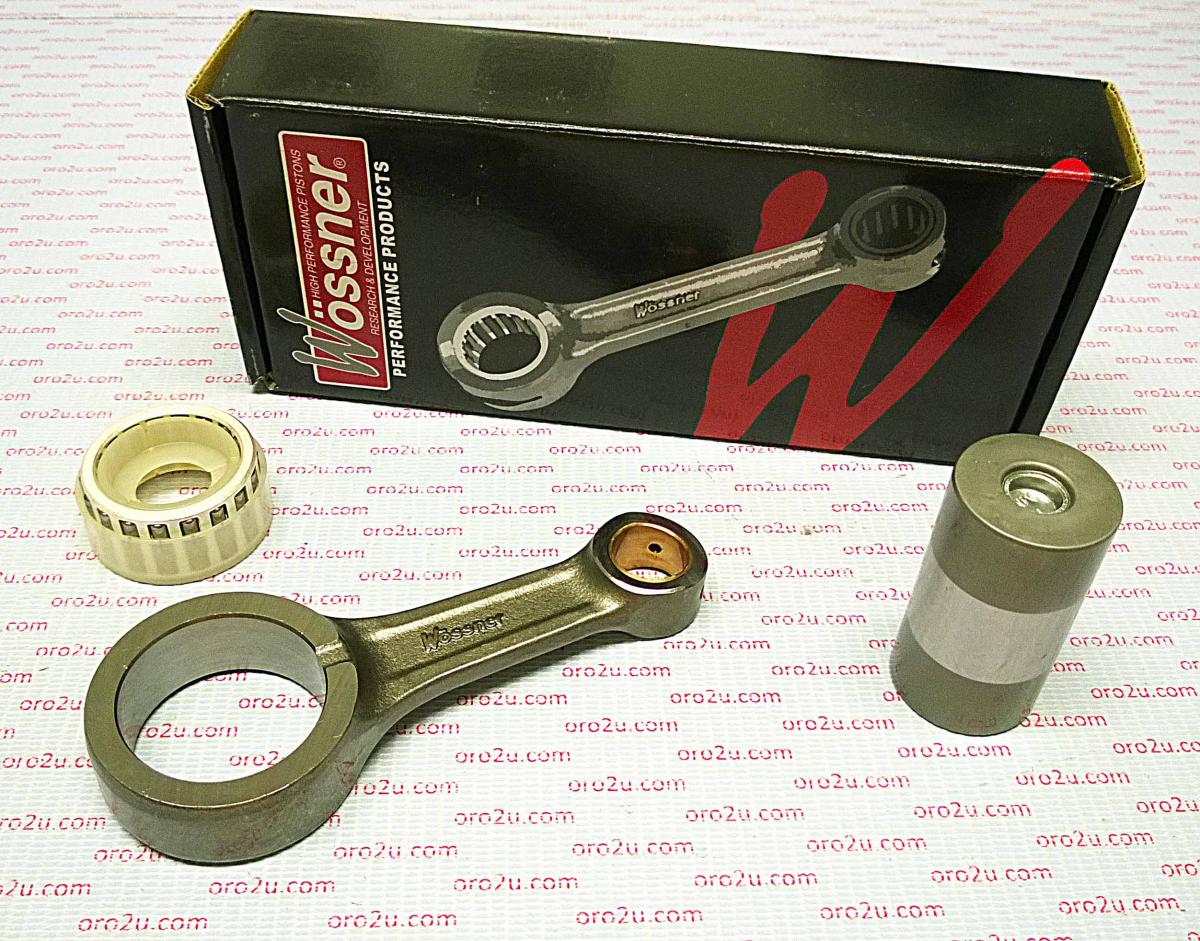

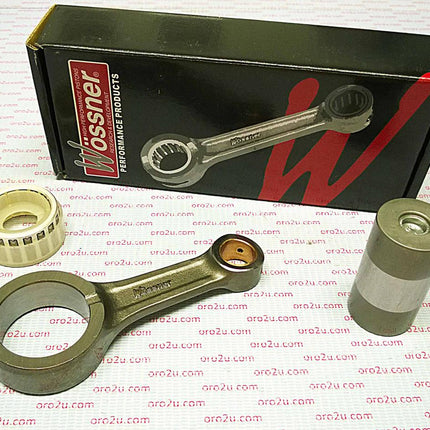

CONNECTING, CONROD REBUILDING KIT WOSSNER P4002
- Made in Germany
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 92.50 |
| Small End Bearing | None |
| Small End Bore Ø | 16 |
| Small End Width | 15.00 |
| Big End Bearing | 30x38x18.8 |
| Big End Bore Ø | 38 |
| Big End Width | 19.00
|
| Big End Pin Ø | 30 |
| Big End Pin Length | 55.00
|
| Washer Thickness | 1.00
|
Part No. 56-936.WO (radhouse.co.uk)
Cross reference numbers.
HOTROD 8622, WOSSNER P4002, WISECO WPR201, PSYCHIC MX-09050
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
RM Z 250 |
2004-2006 |
| KAWASAKI |
KX F 250 |
2004-2009 |
| SUZUKI |
RM Z 250 |
2004-2021 |
| SUZUKI |
RM Z 250 |
2004-2020 |
| SUZUKI |
RM Z 250 |
2004-2017 |
| SUZUKI |
RM Z 250 |
2004-2019 |
