Description
MAICO
MC / GS 250 1979-1983,
Connecting ConRod rebuild kit. Made in Italy. BCO0562A
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Dirt Racing Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

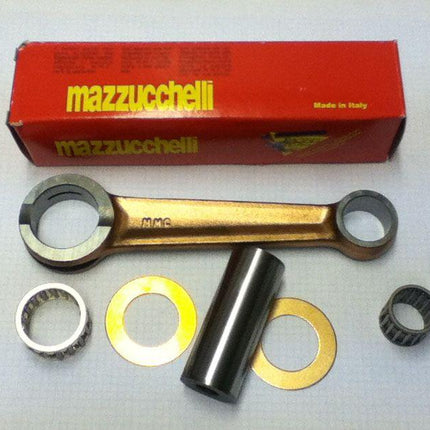

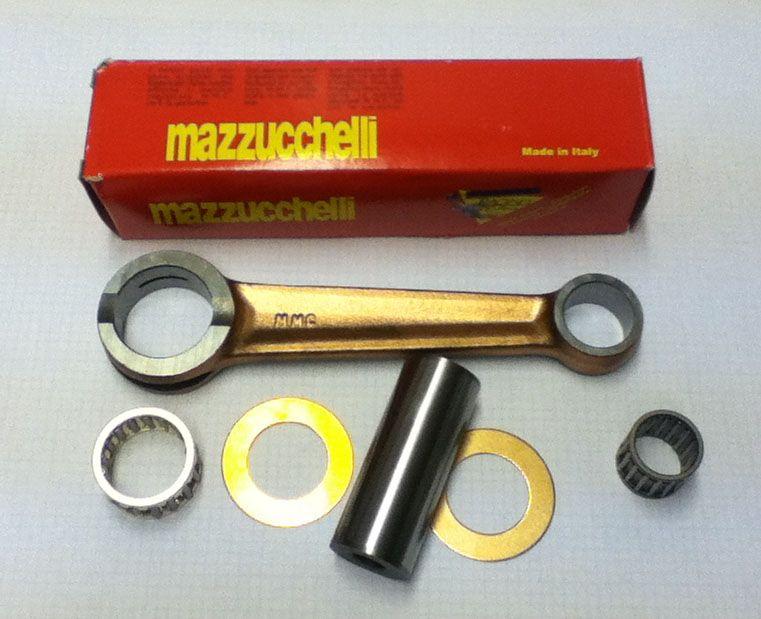

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 132 |
| Small End Bearing | 18x22x22 |
| Small End Bore Ø | 22 |
| Small End Width | 17 |
| Big End Bearing | 25x31x17 |
| Big End Bore Ø | 31 |
| Big End Width | 17 |
| Big End Pin Ø | 25 |
| Big End Pin Length | 57 |
| Washer Thickness | 25x41x1 |

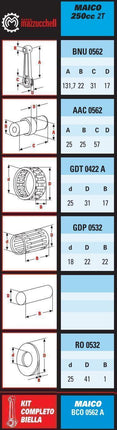

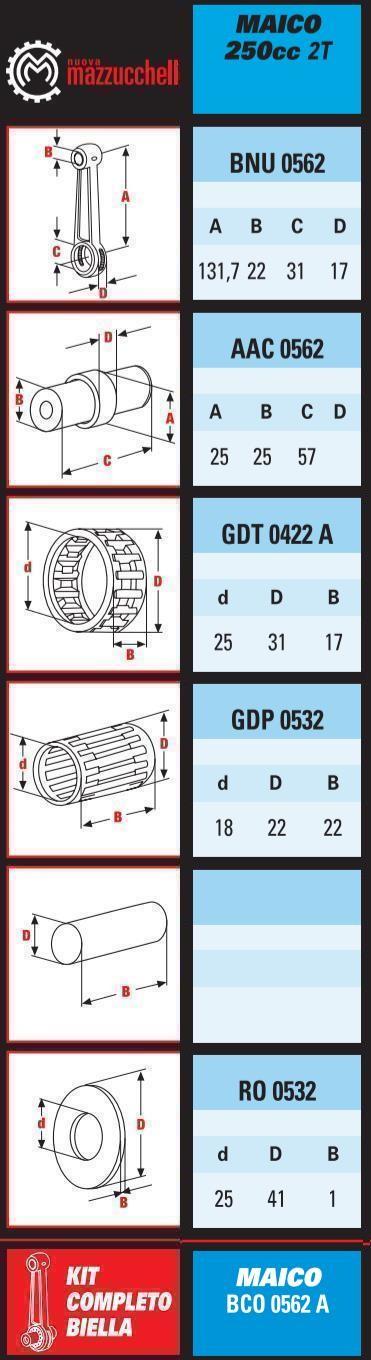

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 132, B = 18, C = 25, D = 17, E = 17, F = 57
Part No. 56-964 (radhouse.co.uk)
Cross reference numbers ONLY.
Mazzucchelli BCO0458, ROTAX BT20,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| MAICO |
MX 250 |
1978-1983 |
| MAICO |
GS 250 |
1978-1983 |
