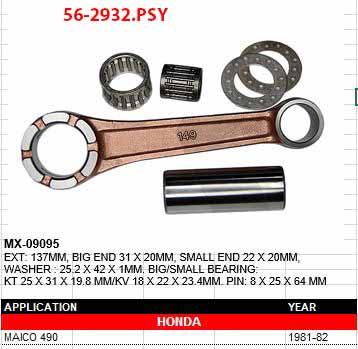

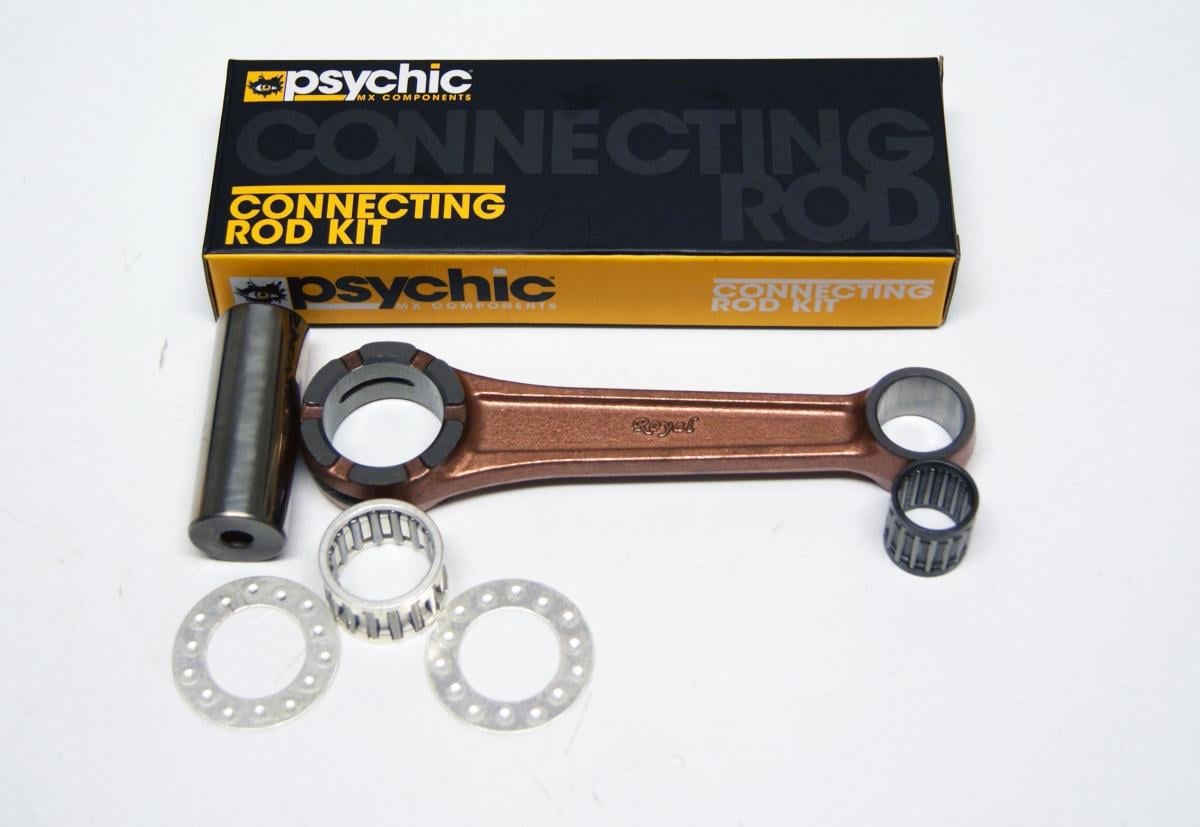

Connecting Rod Kit Maico 490 81-82, Psychic RX-12004

Description

This connecting rod rebuild kit is designed for the 1981–1982 MAICO 490 models and includes all essential components for a complete rod replacement. Engineered for durability, it features heavy-duty materials and precise manufacturing standards to ensure performance and compatibility with both OEM and aftermarket crankshafts.

Features

  • Heavy-duty OE replacement connecting rod

  • Manufactured from certified chrome alloy steel (SNCM220) for superior strength

  • Crankpins made from hot-rolled ASTM steel and case hardened

  • Equipped with caged needle roller bearing design for high RPM longevity

  • Bronze phosphor thrust washers with silver coating

  • Complete rod assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if needed)

  • Fully compatible with aftermarket and OEM crankshafts

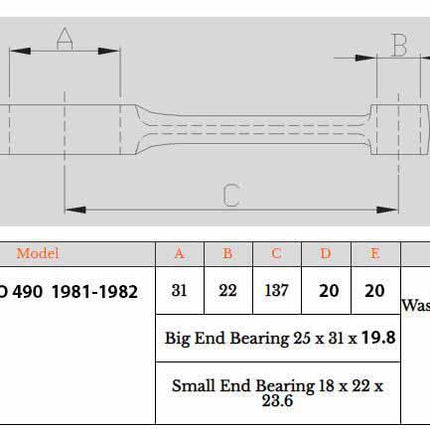

Specifications

  • Centre-to-centre length: 137 mm

  • Small end bearing: 18x22x23.5 mm

  • Small end bore diameter: 22 mm

  • Small end width: 20 mm

  • Big end bearing: 25x31x19.8 mm

  • Big end bore diameter: 31 mm

  • Big end width: 20 mm

  • Big end pin diameter: 25 mm

  • Big end pin length: 64 mm

  • Washer dimensions: 25x42x1 mm

Cross-Reference OEM Part Numbers

  • 03.1553

Vehicle Fitments

  • MAICO 490 (1981–1982)

Connecting Rod Kit Maico 490 81-82, Psychic RX-12004

Product form

This connecting rod rebuild kit is designed for the 1981–1982 MAICO 490 models and includes all essential components for a... Read more

4 in stock 1-2 business days

£72.69 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-2932.PSY

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This connecting rod rebuild kit is designed for the 1981–1982 MAICO 490 models and includes all essential components for a complete rod replacement. Engineered for durability, it features heavy-duty materials and precise manufacturing standards to ensure performance and compatibility with both OEM and aftermarket crankshafts.

    Features

    • Heavy-duty OE replacement connecting rod

    • Manufactured from certified chrome alloy steel (SNCM220) for superior strength

    • Crankpins made from hot-rolled ASTM steel and case hardened

    • Equipped with caged needle roller bearing design for high RPM longevity

    • Bronze phosphor thrust washers with silver coating

    • Complete rod assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if needed)

    • Fully compatible with aftermarket and OEM crankshafts

    Specifications

    • Centre-to-centre length: 137 mm

    • Small end bearing: 18x22x23.5 mm

    • Small end bore diameter: 22 mm

    • Small end width: 20 mm

    • Big end bearing: 25x31x19.8 mm

    • Big end bore diameter: 31 mm

    • Big end width: 20 mm

    • Big end pin diameter: 25 mm

    • Big end pin length: 64 mm

    • Washer dimensions: 25x42x1 mm

    Cross-Reference OEM Part Numbers

    • 03.1553

    Vehicle Fitments

    • MAICO 490 (1981–1982)
