Description
MAICO
490 LATE MODEL 1983-ON,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09070
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

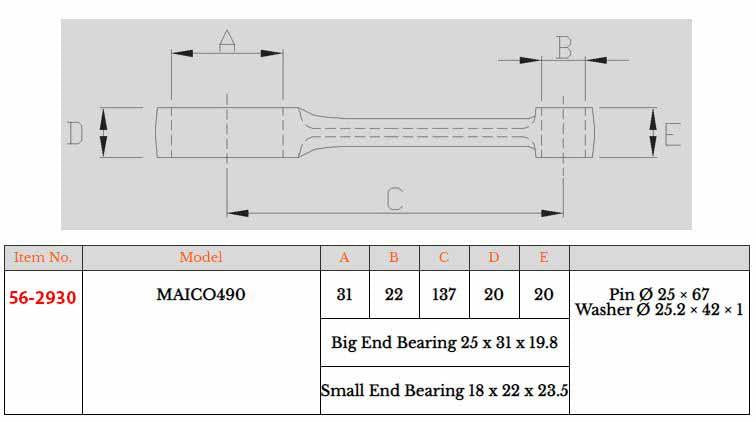

| SIZE | MM |
| Centre 2 Centre | 137 |
| Small End Bearing | 18x22x23.5 |
| Small End Bore Ø | 22 |
| Small End Width | 20 |
| Big End Bearing | 25x31x19.8 |
| Big End Bore Ø | 31 |
| Big End Width | 20 |
| Big End Pin Ø | 25 |
| Big End Pin Length | 67
|
| Washer Thickness | 25x42x1 |
Part No. 56-2930 (radhouse.co.uk)
Cross reference numbers ONLY.
RO-8201 / 149
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| MAICO |
WR ENDURO 490 |
1981-1983 |
| MAICO |
MX 490 |
1981-1983 |
| MAICO |
MC 490 |
1981-1983 |
| MAICO |
LC 490 |
1981-1983 |
| MAICO |
GS 490 |
1981-1983 |
| MAICO |
ENDURO 490 |
1981-1983 |
| MAICO |
2T 490 |
1981-1983 |
