Description
POLARIS
335 Sportsman 4x4 1999-2000,
400L Sportsman 4x4 2001,
425L Magnum 2x4/4x4/6x6 1995-1998,

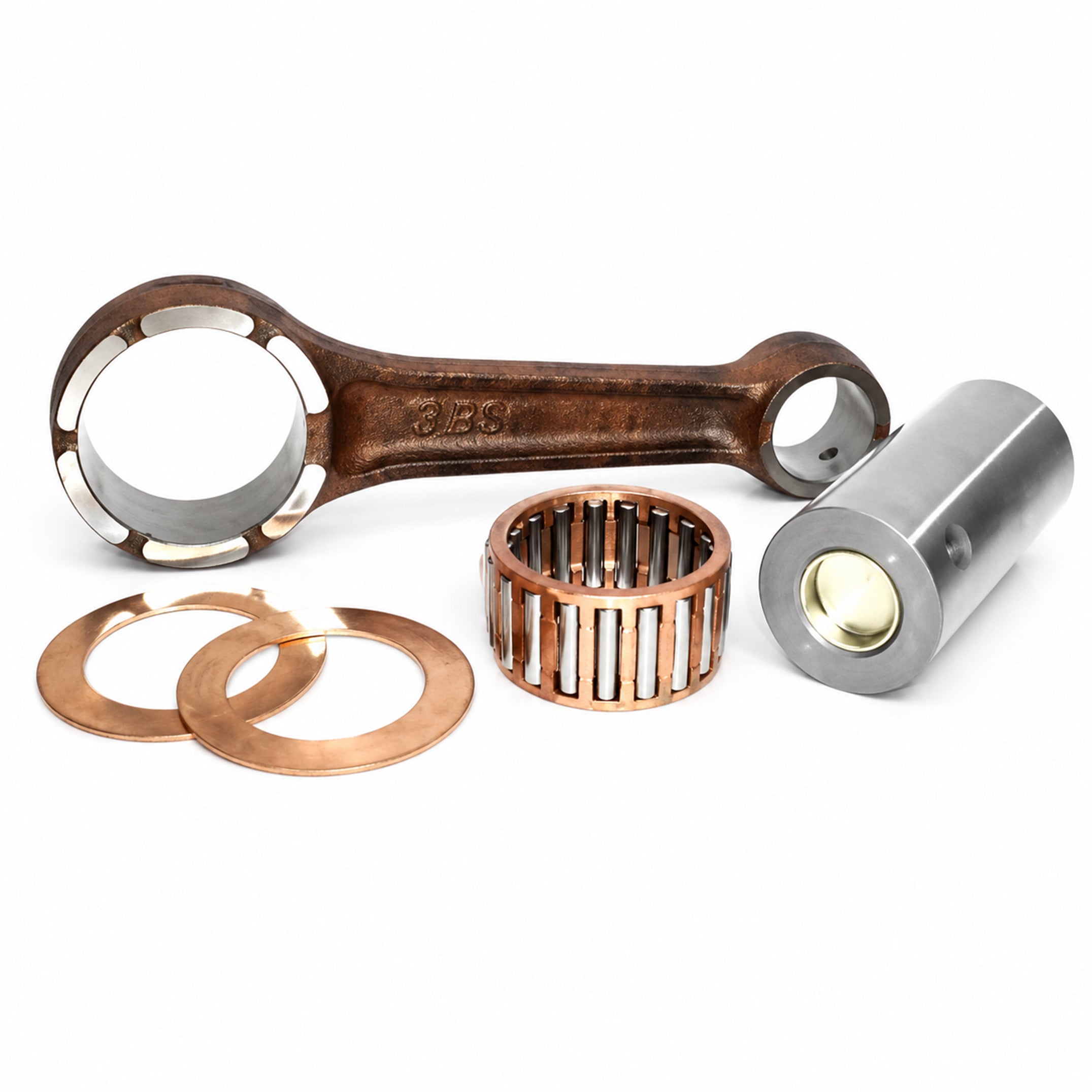

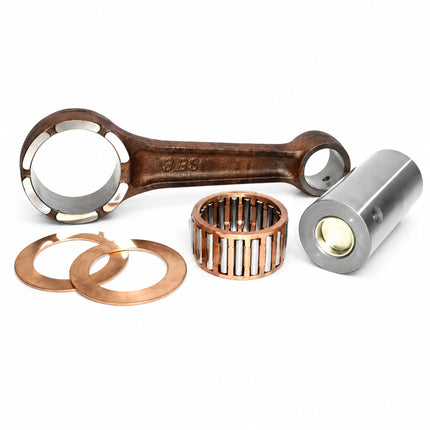

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09167
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 130 |
| Small End Bearing | None |
| Small End Bore Ø | 23 |
| Small End Width | 22 |
| Big End Bearing | 34x43x21.80 |
| Big End Bore Ø | 43 |
| Big End Width | 22 |
| Big End Pin Ø | 34 |
| Big End Pin Length | 71 |
| Washer Thickness | 34x52x1.00 |
Part No. 56-271.DR (radhouse.co.uk)
Cross reference numbers.
AT-09167, OEM 3085342,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| POLARIS |
SPORTSMAN 335 |
1999-2000 |
| POLARIS |
MAGNUM 425 |
1995-1998 |
| POLARIS |
SPORTSMAN 4X4 400 |
2001 |
| POLARIS |
SPORTSMAN L 400 |
2001 |
| POLARIS |
MAGNUM 6X6 425 |
1995-1998 |
