Name: Connecting Rod Kit Suzuki RM-Z 250 04-25, Athena P40321029 Kawasaki KX 250F 04-09
Brand: Athena
SKU: 56-936.ATH
Price: 144.48 GBP
Availability: InStock

Connecting Rod Kit Suzuki RM-Z 250 04-25, Athena P40321029 Kawasaki KX 250F 04-09

Athena
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

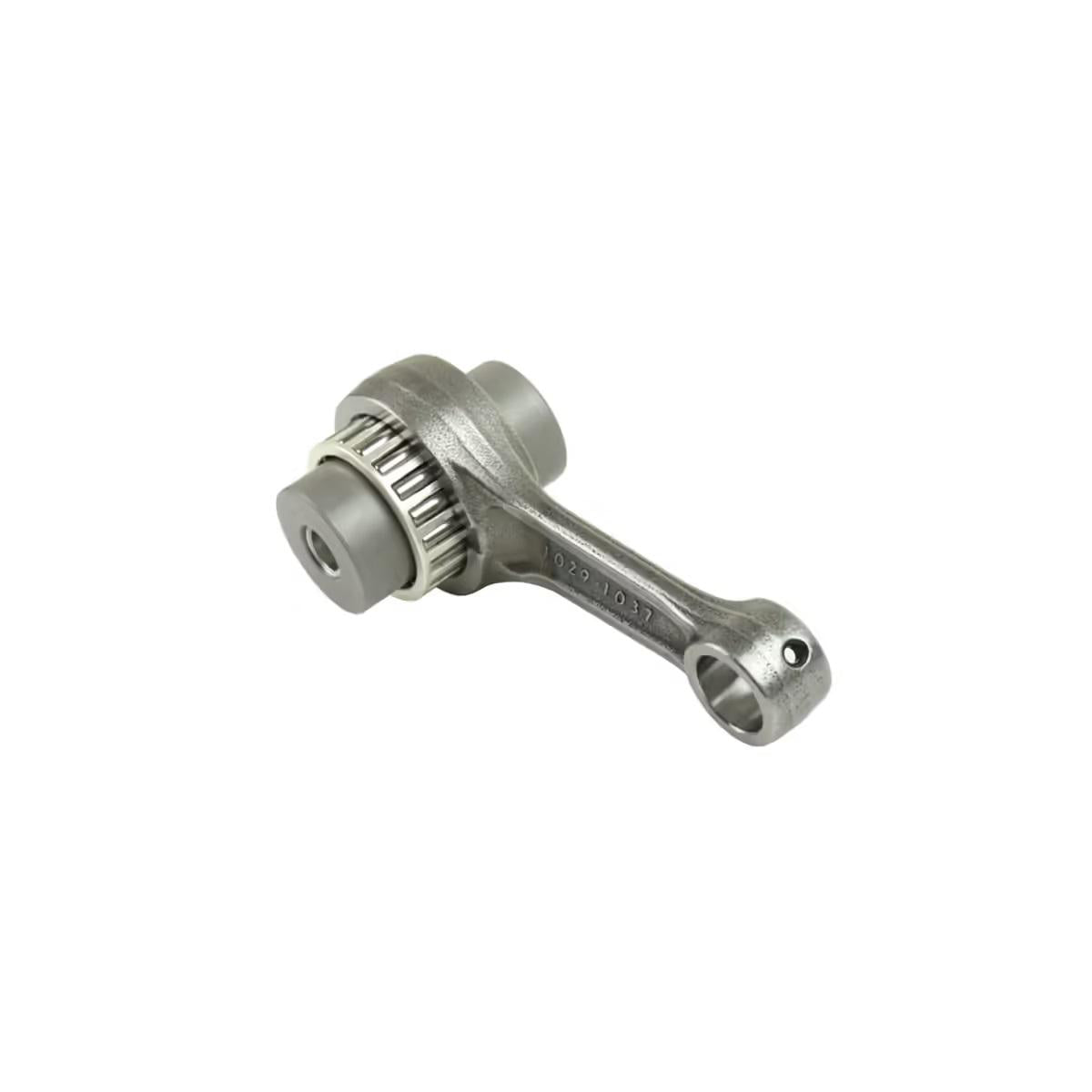

ATHENA Connecting Rod Offroad Kit - P40321029

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

Big End Bore (mm) 38.00
Big End Pin Diameter (mm) 30.00
Big End Width (mm) 18.00
Center To Center (mm) 92.50
Net Weight (Kg) 0.53
Piston Pin Diameter (mm) 16.00
Small End Width (mm) 15.00

Partner Cross Reference code

HOTROD 8622
WOSSNER P4002
WISECO WPR201
PSYCHIC MX-09050
KAWASAKI: 13032-0003
KAWASAKI: 13032-0047
Suzuki: K1303-20003
Suzuki: K1303-20047

Vehicle compatibility

KAWASAKI KX F 250 cc 2004/2009
SUZUKI RM-Z 250 cc 2004/2025

Part No. 56-936.ATH (radhouse.co.uk)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2017
SUZUKI	RM Z 250	2007
SUZUKI	RM Z 250	2008-2009
KAWASAKI	KX F 250	2005
KAWASAKI	KX F 250	2004
SUZUKI	RM Z 250	2004-2006
KAWASAKI	KX F 250	2004-2009
SUZUKI	RM Z 250	2010
SUZUKI	RM Z 250	2004-2021
SUZUKI	RM Z 250	2004-2020
SUZUKI	RM Z 250	2018
SUZUKI	RM Z 250	2019
SUZUKI	RM Z 250	2016
SUZUKI	RM Z 250	2015
SUZUKI	RM Z 250	2014
SUZUKI	RM Z 250	2013
SUZUKI	RM Z 250	2012
SUZUKI	RM Z 250	2011
KAWASAKI	KX F 250	2009
KAWASAKI	KX F 250	2008
KAWASAKI	KX F 250	2007
KAWASAKI	KX F 250	2006
SUZUKI	RM Z 250	2004-2017
SUZUKI	RM Z 250	2004-2019

Connecting Rod Kit Suzuki RM-Z 250 04-25, Athena P40321029 Kawasaki KX 250F 04-09

Athena
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

ATHENA Connecting Rod Offroad Kit - P40321029 Description Athena’s connecting rods are made using the most advanced materials and treatments... Read more

1 in stock 1-2 business days

£144.48 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-936.ATH
Barcode: 8057018267460

Free shipping on all orders above £75

No hassle returns within 30 days

Description

ATHENA Connecting Rod Offroad Kit - P40321029

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

Big End Bore (mm) 38.00
Big End Pin Diameter (mm) 30.00
Big End Width (mm) 18.00
Center To Center (mm) 92.50
Net Weight (Kg) 0.53
Piston Pin Diameter (mm) 16.00
Small End Width (mm) 15.00

Partner Cross Reference code

HOTROD 8622
WOSSNER P4002
WISECO WPR201
PSYCHIC MX-09050
KAWASAKI: 13032-0003
KAWASAKI: 13032-0047
Suzuki: K1303-20003
Suzuki: K1303-20047

Vehicle compatibility

KAWASAKI KX F 250 cc 2004/2009
SUZUKI RM-Z 250 cc 2004/2025

Part No. 56-936.ATH (radhouse.co.uk)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2017
SUZUKI	RM Z 250	2007
SUZUKI	RM Z 250	2008-2009
KAWASAKI	KX F 250	2005
KAWASAKI	KX F 250	2004
SUZUKI	RM Z 250	2004-2006
KAWASAKI	KX F 250	2004-2009
SUZUKI	RM Z 250	2010
SUZUKI	RM Z 250	2004-2021
SUZUKI	RM Z 250	2004-2020
SUZUKI	RM Z 250	2018
SUZUKI	RM Z 250	2019
SUZUKI	RM Z 250	2016
SUZUKI	RM Z 250	2015
SUZUKI	RM Z 250	2014
SUZUKI	RM Z 250	2013
SUZUKI	RM Z 250	2012
SUZUKI	RM Z 250	2011
KAWASAKI	KX F 250	2009
KAWASAKI	KX F 250	2008
KAWASAKI	KX F 250	2007
KAWASAKI	KX F 250	2006
SUZUKI	RM Z 250	2004-2017
SUZUKI	RM Z 250	2004-2019
