Description
HONDA
1997 - 2001 TRX250 Recon,
2001 - 2008 TRX250EX Sportrax 250EX,
2002 - 2013 TRX250TE Fourtrax Recon ES,
2002 - 2005 TRX250TM Fourtrax Recon,
2006 TRX250TM Recon ES,
2006 - 2013 TRX250TM Fourtrax Recon,
2009 - 2013 TRX250X Fourtrax,
2002 - 2017 Honda TRX 250TE RECON,
2002 - 2017 Honda TRX 250TM,
2009 - 2017 Honda TRX 250X

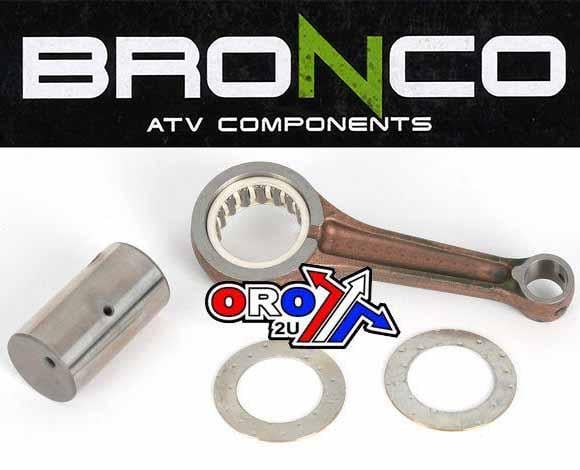

CONROD Connecting Rod Kit - BRONCO AT-09196
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- BRONCO Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- FIR Racing products are a high quality replacement part and
- Please check the image before ordering to avoid mistakes.
| SIZE | MM |
| Centre 2 Centre | 105.50 |
| Small End Bearing | None |
| Small End Bore Ø | 15 |
| Small End Width | 18 |
| Big End Bearing | 30x38x18 |
| Big End Bore Ø | 38 |
| Big End Width | 18 |
| Big End Pin Ø | 30 |
| Big End Pin Length | 54.00 |
| Washer Thickness | 35x45x1.0 |
Part No. 56-215.BR (radhouse.co.uk)
Cross reference numbers ONLY.
Vesrah VA1015 VA-1015, 0401015, HOTRODS 8691,
[Fits into 13000-HM8-A40]
[FITS INTO CRANKSHAFT 13000-HM8-000]
ROD, CONNECTING 13201-KCN-300
PLATE, CONNECTING ROD SIDE 13202-958-300
PIN, CRANK 13381-HF1-670
BEARING A, CONNECTING ROD LARGE 91002-446-771
2001 - 2008 Honda TRX 250EX ATV,
2002 - 2016 Honda TRX 250TE RECON ATV,
2002 - 2016 Honda TRX 250TM RECON ATV,
2009 - 2016 Honda TRX 250X ATV,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HONDA |
TRX EX SPORTRAX 250 |
2001-2008 |
| HONDA |
TRX EX 250 |
2001-2008 |
| HONDA |
TRX RECON 250 |
1997-2001 |
| HONDA |
TRX X 250 |
2009-2019 |
| HONDA |
TRX TM TE FOURTRAX RECON 250 |
2006-2007 |
| HONDA |
TRX TM TE FOURTRAX RECON 250 |
2002-2005 |
| HONDA |
TRX TM TE FOURTRAX RECON 250 |
2002-2007 |
| HONDA |
TRX TM TE FOURTRAX RECON 250 |
2002-2013 |
| HONDA |
TRX RECON 250 |
2006 |
| HONDA |
TRX RECON 250 |
2002-2013 |
| HONDA |
TRX 250 |
2003-2005 |
| HONDA |
TRX 250 |
2003-2006 |
| HONDA |
TRX 250 |
1997-2003 |
| HONDA |
TRX 250 |
2009-2019 |
| HONDA |
TRX 250 |
2002-2017 |
