Description
YAMAHA
1972 DS7,
1973 RD250 , 1975 RD250B , 1974 RD250A ,
1974 RD350A , 1975 RD350B , 1973 RD350 ,
1971 R5B ,
1972 R5C ,
1970 R5 ,
Y125Z 1998-2015,
RD250 RD350,
1998+ Y125Z 1972 DS7 , 1981 EC340E 1983 EC340G,

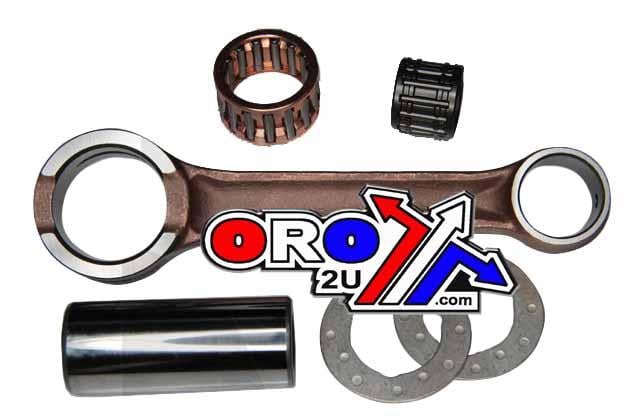

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09077
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 110 |
| Small End Bearing | 16x20x16.8 |
| Small End Bore Ø | 20 |
| Small End Width | 16 |
| Big End Bearing | 22x28x15.8
|
| Big End Bore Ø | 28 |
| Big End Width | 16
|
| Big End Pin Ø | 22 |
| Big End Pin Length | 53
|
| Washer Thickness | 22x37x1.00
|
Part No. 56-985 (radhouse.co.uk)
Cross reference numbers ONLY.
34X-11651-00-00, RY-2019, MC-09206,
Yamaha Motorcycle 1972 DS7 CRANK & PISTON
Yamaha Motorcycle 1973 RD250 CRANK & PISTON
Yamaha Motorcycle 1975 RD250B CRANK & PISTON
Yamaha Motorcycle 1974 RD250A CRANK & PISTON
Yamaha Snowmobile 1979 ET300C CRANK & PISTON
Yamaha Snowmobile 1979 ET340C CRANK & PISTON
Yamaha Snowmobile 1978 ET340B CRANK & PISTON
Yamaha Snowmobile 1984 EXCEL III - EC340H CRANK & PISTON
Yamaha Snowmobile 1979 ET340EC CRANK & PISTON
Yamaha Motorcycle 1974 RD350A CRANKSHAFT PISTON
Yamaha Motorcycle 1975 RD350B CRANKSHAFT PISTON
Yamaha Motorcycle 1971 R5B CRANKSHAFT PISTON
Yamaha Motorcycle 1972 R5C CRANKSHAFT PISTON
Yamaha Motorcycle 1973 RD350 CRANKSHAFT PISTON
Yamaha Motorcycle 1970 R5 CRANKSHAFT PISTON
Yamaha Snowmobile 2000 CS340 - CS340ED CRANKSHAFT PISTON
Yamaha Snowmobile 1999 OVATION LE - CS340EC CRANKSHAFT PISTON
Yamaha Snowmobile 1994 OVATION LE - CS340EU CRANKSHAFT PISTON
Yamaha Snowmobile 1995 OVATION LE - CS340EV CRANKSHAFT PISTON
Yamaha Snowmobile 1992 OVATION LE - CS340ES CRANKSHAFT PISTON
Yamaha Snowmobile 1993 OVATION LE - CS340ET CRANKSHAFT PISTON
Yamaha Snowmobile 1998 OVATION LE - CS340EB CRANKSHAFT PISTON
Yamaha Snowmobile 1997 OVATION LE - CS340EA CRANKSHAFT PISTON
Yamaha Snowmobile 1996 OVATION LE - CS340EW CRANKSHAFT PISTON
Yamaha Snowmobile 1988 ENTICER 340 - ET340M CRANKSHAFT PISTON
Yamaha Snowmobile 1988 ENTICER 340T (LONG TRACK) - ET340TM CRANKSHAFT PISTON
Yamaha Snowmobile 1988 ENTICER LTR (LONG TRACK+REVERSE) - ET340TRM CRANKSHAFT PISTON
Yamaha Snowmobile 1988 EXCEL III - EC340M CRANKSHAFT PISTON
Yamaha Snowmobile 1990 OVATION LE (ELEC START) - CS340EP CRANKSHAFT PISTON
Yamaha Snowmobile 1990 OVATION - CS340P CRANKSHAFT PISTON
Yamaha Snowmobile 1989 CS340EN CRANKSHAFT PISTON
Yamaha Snowmobile 1989 CS340N CRANKSHAFT PISTON
Yamaha Snowmobile 1980 ET340ED CRANKSHAFT PISTON
Yamaha Snowmobile 1980 ET340D CRANKSHAFT PISTON
Yamaha Snowmobile 1981 EC340E CRANKSHAFT PISTON
Yamaha Snowmobile 1981 ET300E CRANKSHAFT PISTON
Yamaha Snowmobile 1982 ET340F CRANKSHAFT PISTON
Yamaha Snowmobile 1983 EC340G CRANKSHAFT PISTON
Yamaha Snowmobile 1983 ET300G CRANKSHAFT PISTON
Yamaha Snowmobile 1984 ENTICER 340 - ET340H CRANKSHAFT PISTON
Yamaha Snowmobile 1984 ENTICER 300 - ET300H CRANKSHAFT PISTON
Yamaha Snowmobile 1984 ENTICER 340T (LONG TRACK) - ET340TH CRANKSHAFT PISTON
Yamaha Snowmobile 1986 EXCEL III - EC340K CRANKSHAFT PISTON
Yamaha Snowmobile 1987 EXCEL III - EC340L CRANKSHAFT PISTON
Yamaha Snowmobile 1987 ENTICER 340 - ET340L CRANKSHAFT PISTON
Yamaha Snowmobile 1987 ENTICER 340T (LONG TRACK) - ET340TL CRANKSHAFT PISTON
Yamaha Snowmobile 1986 ENTICER 340 - ET340K CRANKSHAFT PISTON
Yamaha Snowmobile 1986 ENTICER 340T (LONG TRACK) - ET340TK CRANKSHAFT PISTON
Yamaha Snowmobile 1985 ENTICER 340 - ET340J CRANKSHAFT PISTON
Yamaha Snowmobile 1985 ENTICER 340T (LONG TRACK) - ET340TJ CRANKSHAFT PISTON
Yamaha Snowmobile 1985 EXCEL III - EC340J CRANKSHAFT PISTON
Yamaha Snowmobile 1982 ET340TF CRANKSHAFT-PISTON ET340TF - TG
