Description
KTM
125 EXC 2007 - 2016,
125 SX 2007 - 2015,
144 SX 2007 - 2008,
150 SX 2009 - 2015,
150 XC 2010 - 2013,
HUSABERG
TE 125 2012-2014,
HUSQVARNA
TE 125 2014 - 2015,
TC 125 2014 - 2015,
GAS-GAS

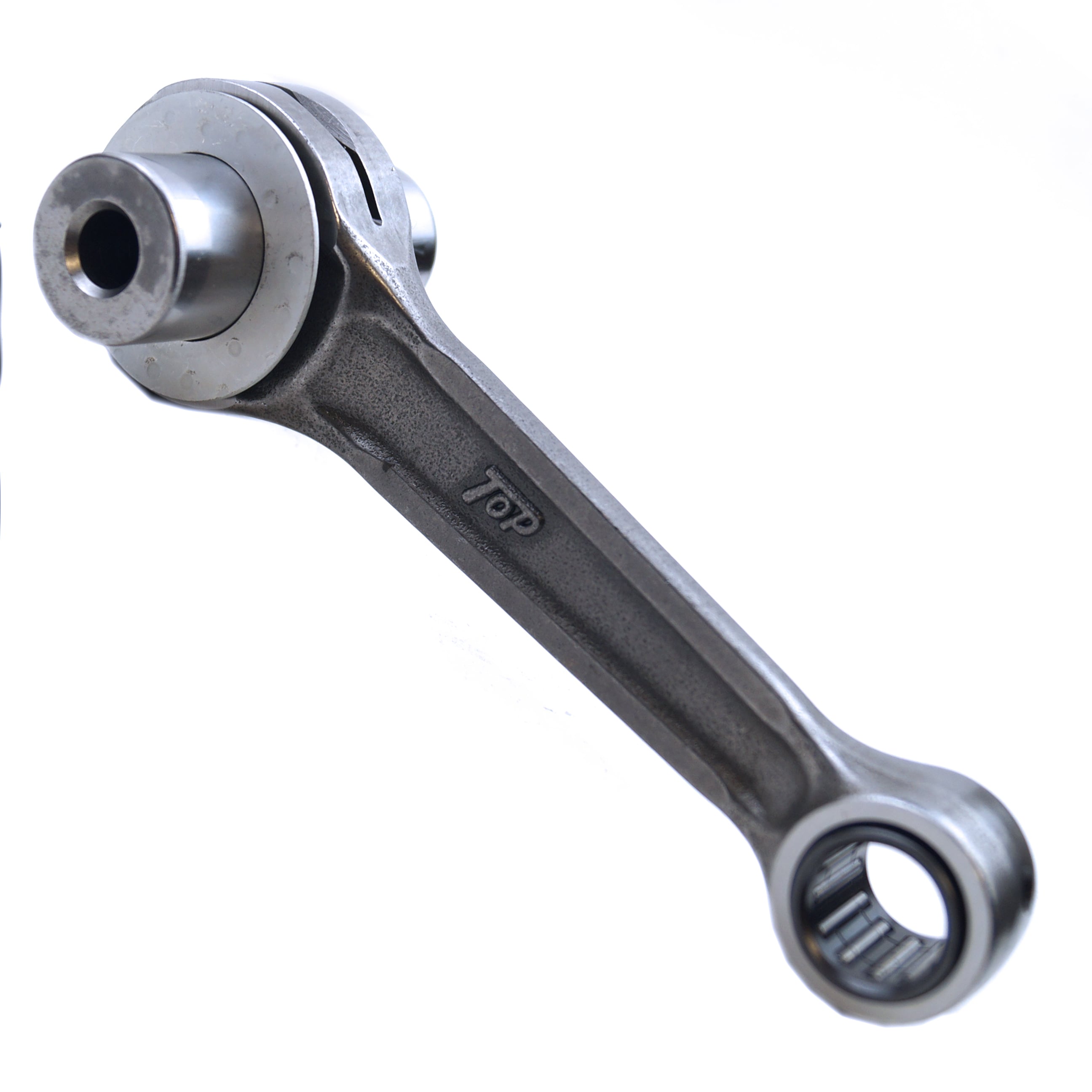

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 110 |
| Small End Bearing | 15x19x19.80 |
| Small End Bore Ø | 19 |
| Small End Width | 15.90 |
| Big End Bearing | 22x28x15.8 |
| Big End Bore Ø | 28 |
| Big End Width | 15.90 |
| Big End Pin Ø | 22 |
| Big End Pin Length | 54.85 |
| Washer Thickness | 1.00 |
CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 110, B = 15, C = 22, D = 15.9, E = 15.9, F = 54.8
Part No. 56-867.RO (radhouse.co.uk)
Cross reference numbers ONLY.
50330015100, ATHENA P40321047, HOTRODS 8670, PROX 03.6220, WOSSNER P2012, PSYIHC MX-09059
