Name: Connecting Rod KTM 85 03-12, Hotrod 8724 KTM SX105
Brand: Hot Rods
SKU: 56-961.HR
Price: 139.57 GBP
Availability: InStock

Connecting Rod KTM 85 03-12, Hotrod 8724 KTM SX105

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

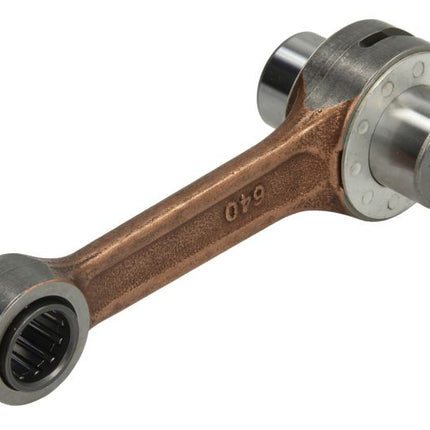

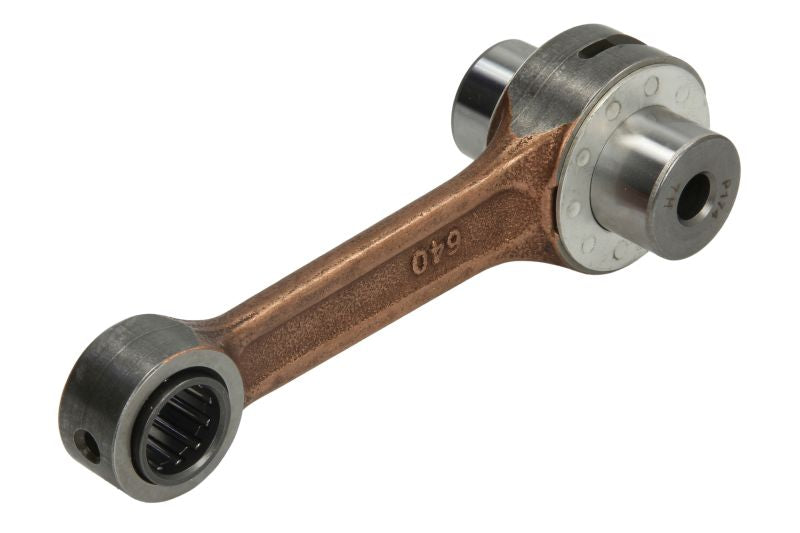

Connecting rod kit designed for KTM 85 SX (2003–2012) and KTM 105 SX (2004–2011) models. This high-quality replacement kit provides exceptional strength and performance for heavy-duty use.

Features:

Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
Advanced design incorporates side scalloping and vent slots to minimize bearing race distortion at high RPM.
Double-forged rods ensure improved grain flow and dimensional consistency.
Shot-peened and double-honed for superior durability under heavy loads.
Double-drilled small ends provide enhanced lubrication and cooling for the wrist pin bearing.
Thrust washers and crank pin bearings feature silver coating for added lubricity.

Specifications:

Centre to Centre: 96.00 mm
Big End Bore Ø: 28.00 mm
Big End Width: Not specified
Pin Diameter: 22.00 mm
Pin Length: 46.10 mm
Small End Bore Ø: 18.00 mm
Small End Width: Not specified
Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006

Vehicle Fitment:

KTM 85 SX (2003–2012, 17"/14" wheel diameter)
KTM 85 SX (2006, 19"/16" wheel diameter)
KTM 105 SX (2004–2011)

Part Number: 56-961.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 85	2003-2012
KTM	SX 105	2004-2011
KTM	SX 105	2003-2011
KTM	SX 105	2004-2009
KTM	SX 105	2003-2008

Connecting Rod KTM 85 03-12, Hotrod 8724 KTM SX105

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Connecting rod kit designed for KTM 85 SX (2003–2012) and KTM 105 SX (2004–2011) models. This high-quality replacement kit provides... Read more

1 in stock 1-2 business days

£139.57 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-961.HR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Connecting rod kit designed for KTM 85 SX (2003–2012) and KTM 105 SX (2004–2011) models. This high-quality replacement kit provides exceptional strength and performance for heavy-duty use.

Features:

Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc.
Advanced design incorporates side scalloping and vent slots to minimize bearing race distortion at high RPM.
Double-forged rods ensure improved grain flow and dimensional consistency.
Shot-peened and double-honed for superior durability under heavy loads.
Double-drilled small ends provide enhanced lubrication and cooling for the wrist pin bearing.
Thrust washers and crank pin bearings feature silver coating for added lubricity.

Specifications:

Centre to Centre: 96.00 mm
Big End Bore Ø: 28.00 mm
Big End Width: Not specified
Pin Diameter: 22.00 mm
Pin Length: 46.10 mm
Small End Bore Ø: 18.00 mm
Small End Width: Not specified
Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006

Vehicle Fitment:

KTM 85 SX (2003–2012, 17"/14" wheel diameter)
KTM 85 SX (2006, 19"/16" wheel diameter)
KTM 105 SX (2004–2011)

Part Number: 56-961.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 85	2003-2012
KTM	SX 105	2004-2011
KTM	SX 105	2003-2011
KTM	SX 105	2004-2009
KTM	SX 105	2003-2008
