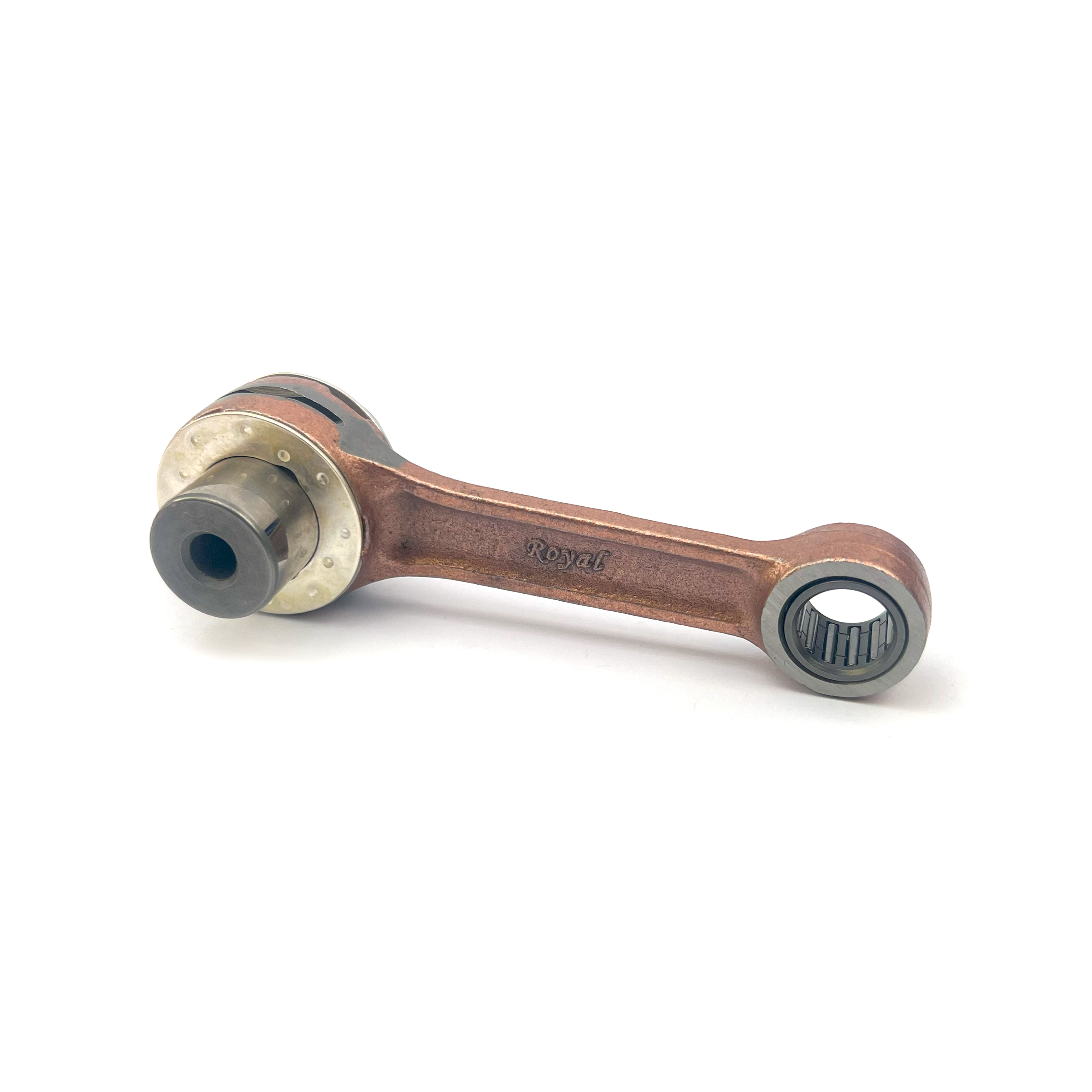

Name: Connecting Rod KTM 85 03-12, Psychic MX-09040 KTM SX105
Brand: Psychic
SKU: 56-961.DR
Price: 77.95 GBP
Availability: InStock

Connecting Rod KTM 85 03-12, Psychic MX-09040 KTM SX105

Psychic
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Connecting rod rebuild kit designed for KTM 85 SX (2003–2012) and KTM 105 SX (2004–2011) models. This kit is built with heavy-duty materials to ensure durability and compatibility with both OE and aftermarket crankshafts.

Features:

Heavy-duty OE replacement connecting rods.
Made from certified chrome alloy steel for superior strength.
Crankpins constructed from hot-rolled ASTM steel and case-hardened.
Equipped with advanced caged needle roller bearing designs for high RPM performance.
Bronze phosphor thrust washers with silver coating for enhanced durability.
Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if required).
Compatible with OE and aftermarket crankshafts.
Manufactured using SNCM220 material.

Specifications:

Centre to Centre: 96 mm
Small End Bearing: 14x18x16.8 mm
Small End Bore Ø: 18 mm
Small End Width: 13 mm
Big End Bearing: 22x28x15.8 mm
Big End Bore Ø: 28 mm
Big End Width: 16 mm
Big End Pin Ø: 22 mm
Big End Pin Length: 46 mm
Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006

Vehicle Fitment:

KTM 85 SX (2003–2012, 17"/14" wheel diameter)
KTM 85 SX (2006, 19"/16" wheel diameter)
KTM 105 SX (2004–2011)

Part Number: 56-961.DR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 85	2003-2012
KTM	SX 105	2004-2011
KTM	SX 105	2003-2011
KTM	SX 105	2004-2009
KTM	SX 105	2003-2008

Connecting Rod KTM 85 03-12, Psychic MX-09040 KTM SX105

Psychic
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Connecting rod rebuild kit designed for KTM 85 SX (2003–2012) and KTM 105 SX (2004–2011) models. This kit is built... Read more

2 in stock 1-2 business days

£77.95 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-961.DR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Connecting rod rebuild kit designed for KTM 85 SX (2003–2012) and KTM 105 SX (2004–2011) models. This kit is built with heavy-duty materials to ensure durability and compatibility with both OE and aftermarket crankshafts.

Features:

Heavy-duty OE replacement connecting rods.
Made from certified chrome alloy steel for superior strength.
Crankpins constructed from hot-rolled ASTM steel and case-hardened.
Equipped with advanced caged needle roller bearing designs for high RPM performance.
Bronze phosphor thrust washers with silver coating for enhanced durability.
Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if required).
Compatible with OE and aftermarket crankshafts.
Manufactured using SNCM220 material.

Specifications:

Centre to Centre: 96 mm
Small End Bearing: 14x18x16.8 mm
Small End Bore Ø: 18 mm
Small End Width: 13 mm
Big End Bearing: 22x28x15.8 mm
Big End Bore Ø: 28 mm
Big End Width: 16 mm
Big End Pin Ø: 22 mm
Big End Pin Length: 46 mm
Washer Thickness: 1.00 mm

Cross-Reference OEM Part Numbers:
47030015100, ATHENA P40321040, PSYCHIC MX-09040, HOTROD 8640, PROX 03.6104, WOSSNER P2006

Vehicle Fitment:

KTM 85 SX (2003–2012, 17"/14" wheel diameter)
KTM 85 SX (2006, 19"/16" wheel diameter)
KTM 105 SX (2004–2011)

Part Number: 56-961.DR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 85	2003-2012
KTM	SX 105	2004-2011
KTM	SX 105	2003-2011
KTM	SX 105	2004-2009
KTM	SX 105	2003-2008
