Description
KTM
2013-2015 350 SX-F,
2014-2016 350 EXC-F,
2013-2015 350 XC-F,
2014-2016 350 XCF-W,
2015-2017 350 FREERIDE,
HUSQVARNA
2014-2016 FC 350,
2014-2016 FE 350,

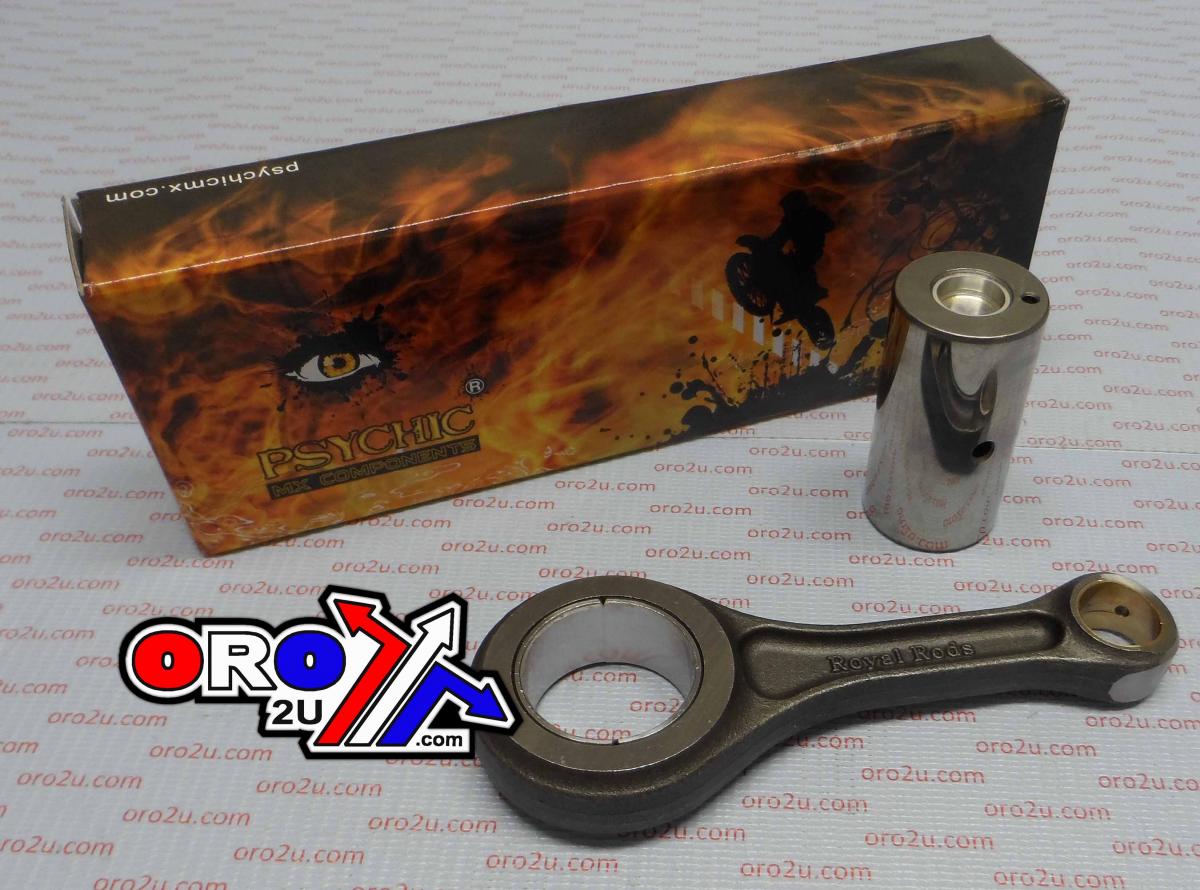

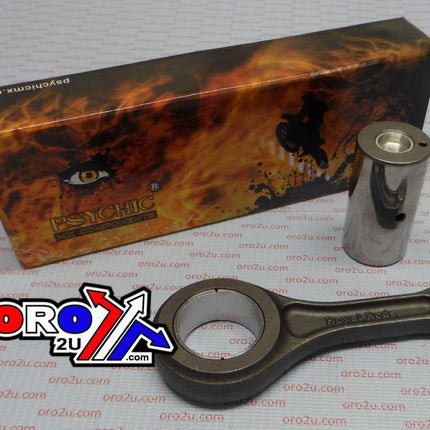

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09023
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 102 |
| Small End Bearing | None |
| Small End Bore Ø | 18 |
| Small End Width | 17 |
| Big End Bearing | 32 Shell
|
| Big End Bore Ø | 36 |
| Big End Width | 20
|
| Big End Pin Ø | 32 |
| Big End Pin Length | 60
|
| Washer Thickness | None
|
Part No. 56-957.DR (radhouse.co.uk)
Cross reference numbers ONLY.
WOSSNER P4061, 77830015044, 778.30.015.044, HOTRODS 8710
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HUSQVARNA |
FE 350 |
2014-2016 |
| KTM |
XC F 350 |
2013-2015 |
| KTM |
SX F 350 |
2013-2015 |
| HUSQVARNA |
FC 350 |
2014-2016 |
| HUSQVARNA |
FC 350 |
2014-2015 |
| KTM |
XCF W 350 |
2014-2016 |
| HUSQVARNA |
FC 250 |
2014-2016 |
| KTM |
XCF W 350 |
2014-2015 |
| KTM |
EXC F 350 |
2014-2016 |
| KTM |
EXC F 350 |
2014-2015 |
| KTM |
FREERIDE 350 |
2015-2017 |
| KTM |
EXC F 350 |
2013-2015 |
