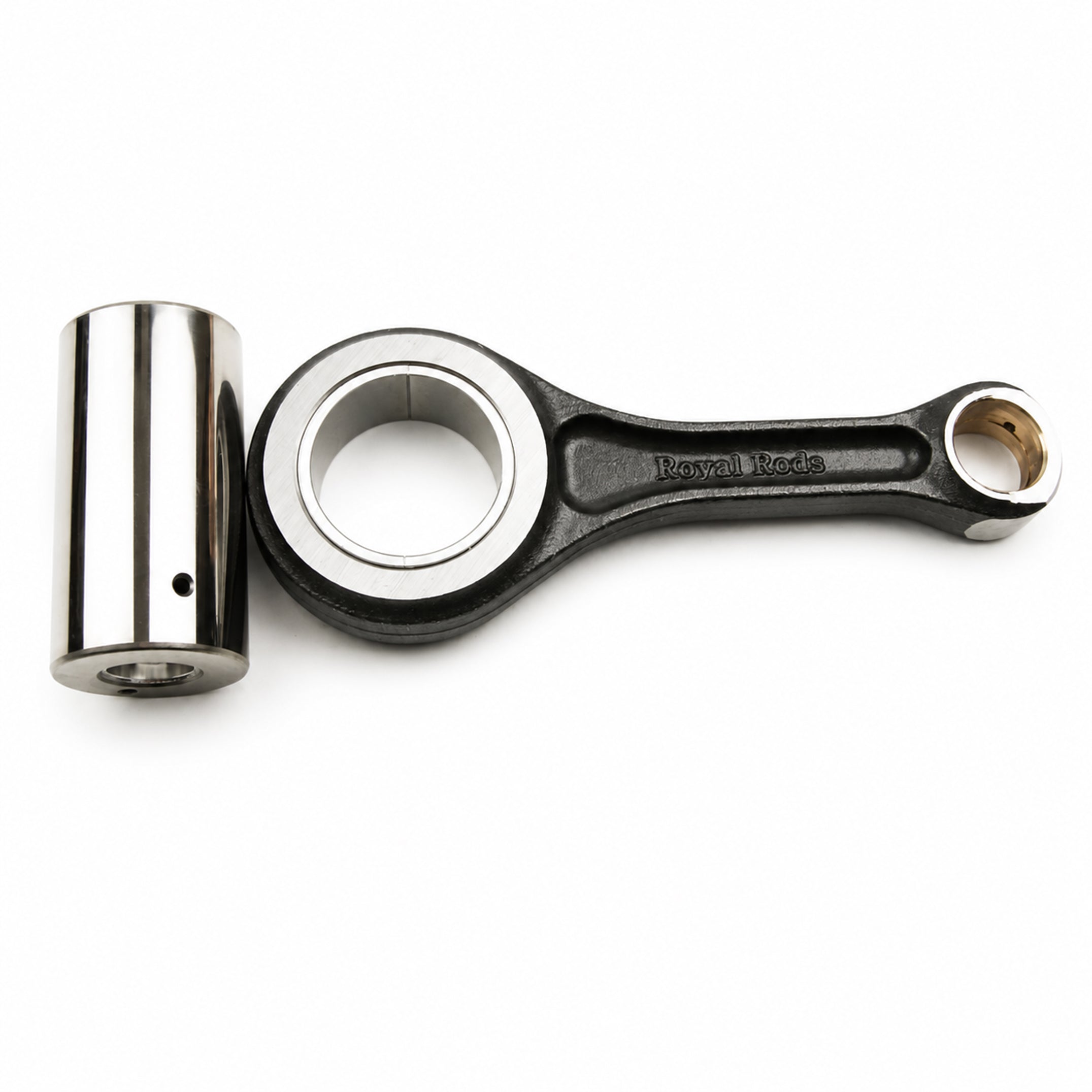

Connecting Rod KTM SX-F250, Namura RX-70002, 77730015144, MX-09022

Description

Connecting rod rebuild kit for KTM, Husqvarna, and Husaberg models, designed as a heavy-duty OE replacement. Constructed from certified chrome alloy steel for superior strength and reliability, this kit is fully compatible with both aftermarket and OE crankshafts. It includes all components required for a complete assembly.

Features

  • Heavy-duty OE replacement connecting rod.
  • Certified chrome alloy steel provides enhanced durability.
  • Crankpins are manufactured from hot-rolled ASTM steel and case-hardened for strength.
  • Thrust washers are made from bronze phosphor and silver-coated for improved performance.
  • Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if required.
  • Fully compatible with aftermarket and OE crankshafts.
  • Manufactured using SNCM220 material for reliability.

Specifications

  • Centre-to-Centre: 98 mm
  • Small End Bearing: None
  • Small End Bore Ø: 16 mm
  • Small End Width: 15 mm
  • Big End Bearing: 30 shell
  • Big End Bore Ø: Not provided
  • Big End Width: 18 mm
  • Big End Pin Ø: 30 mm
  • Big End Pin Length: 56 mm
  • Washer Thickness: None

Cross Reference OEM Part Numbers

  • Athena P40321043
  • 77730015144
  • Psychic MX-09022
  • Hotrods 8701
  • ProX 03.6333
  • Wossner P4059
  • 777.30.015.144

Vehicle Fitments

KTM

  • 250 EXC-F: 2014–2016
  • 250 EXC-F Factory Edition: 2015
  • 250 EXC-F Six Days: 2014–2016
  • 250 SX-F: 2013–2015
  • 250 XC-F: 2013–2015
  • 350 SX-F: 2013–2015

Husqvarna

  • FE 250: 2014–2016
  • FC 250: 2014–2015

Husaberg

  • FE250: 2014

Part Number: 56-932.NW

Connecting Rod KTM SX-F250, Namura RX-70002, 77730015144, MX-09022

Product form

Connecting rod rebuild kit for KTM, Husqvarna, and Husaberg models, designed as a heavy-duty OE replacement. Constructed from certified chrome... Read more

5 in stock 1-2 business days

£130.28 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-932.NM

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Connecting rod rebuild kit for KTM, Husqvarna, and Husaberg models, designed as a heavy-duty OE replacement. Constructed from certified chrome alloy steel for superior strength and reliability, this kit is fully compatible with both aftermarket and OE crankshafts. It includes all components required for a complete assembly.

    Features

    • Heavy-duty OE replacement connecting rod.
    • Certified chrome alloy steel provides enhanced durability.
    • Crankpins are manufactured from hot-rolled ASTM steel and case-hardened for strength.
    • Thrust washers are made from bronze phosphor and silver-coated for improved performance.
    • Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if required.
    • Fully compatible with aftermarket and OE crankshafts.
    • Manufactured using SNCM220 material for reliability.

    Specifications

    • Centre-to-Centre: 98 mm
    • Small End Bearing: None
    • Small End Bore Ø: 16 mm
    • Small End Width: 15 mm
    • Big End Bearing: 30 shell
    • Big End Bore Ø: Not provided
    • Big End Width: 18 mm
    • Big End Pin Ø: 30 mm
    • Big End Pin Length: 56 mm
    • Washer Thickness: None

    Cross Reference OEM Part Numbers

    • Athena P40321043
    • 77730015144
    • Psychic MX-09022
    • Hotrods 8701
    • ProX 03.6333
    • Wossner P4059
    • 777.30.015.144

    Vehicle Fitments

    KTM

    • 250 EXC-F: 2014–2016
    • 250 EXC-F Factory Edition: 2015
    • 250 EXC-F Six Days: 2014–2016
    • 250 SX-F: 2013–2015
    • 250 XC-F: 2013–2015
    • 350 SX-F: 2013–2015

    Husqvarna

    • FE 250: 2014–2016
    • FC 250: 2014–2015

    Husaberg

    • FE250: 2014

    Part Number: 56-932.NW
