Name: Connecting Rod KTM SX50 01-18, Hotrod 8135
Brand: Hot Rods
SKU: 56-869.HR

Connecting Rod KTM SX50 01-18, Hotrod 8135

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Heavy-duty connecting rod kit designed as a direct OE replacement, offering superior strength and durability. Constructed from certified 8620 AISI steel, this kit provides reliable performance for high-rpm applications. Advanced design minimizes bearing race distortion and ensures long-lasting functionality. Fully compatible with Hot Rods and OE crankshafts.

Features:

Manufactured from certified 8620 AISI steel for exceptional strength and durability.
Big end design features strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.
Crankpins made from hot-rolled ASTM 4115, case-hardened to 58-62 Rc.
Latest caged needle roller bearing designs for enhanced longevity at high rpm.
Thrust washers made from bronze phosphor and silver-coated for improved lubricity.

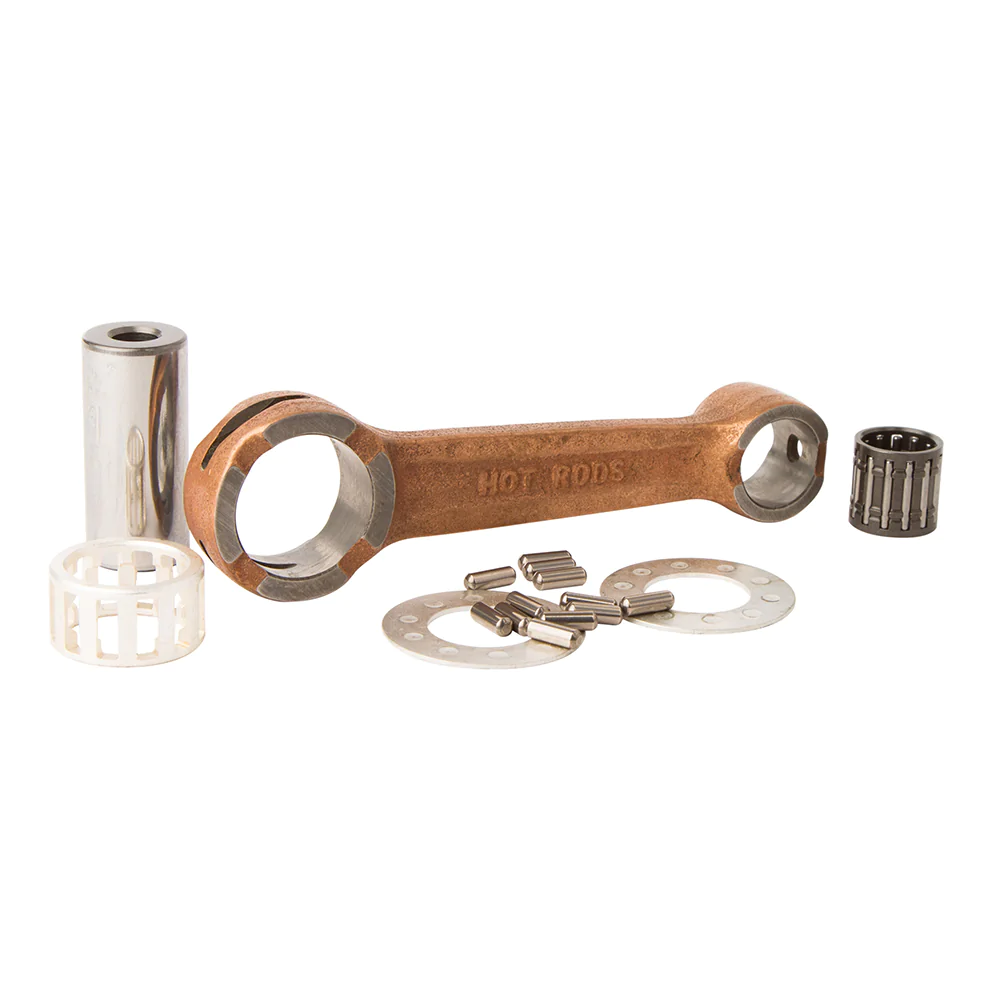

Complete rod assembly includes connecting rod, crankpin, crankpin bearing, needle bearings, top-end bearing, and thrust washers.
Made in the U.S.A.

Technical Specifications:

Big End Bore (mm): 22.00
Big End Width (mm): Not specified
Center to Center (mm): 85.00
Pin Diameter (mm): 16.00
Pin Length (mm): 36.00
Small End Bore (mm): 15.00
Small End Width (mm): Not specified
Washer Thickness (mm): 0.85

Vehicle Compatibility:

KTM:

2018 KTM 50 SX
2017 KTM 50 SX
2016 KTM 50 SX
2015 KTM 50 SX
2014 KTM 50 SX
2013 KTM 50 SX
2012 KTM 50 SX
2011 KTM 50 SX
2010 KTM 50 SX
2009 KTM 50 SX
2017 KTM 50 SX Mini
2016 KTM 50 SX Mini
2015 KTM 50 SX Mini
2014 KTM 50 SX Mini
2006–2008 KTM 50 SX Pro Jr
2004–2005 KTM 50 SX Pro Junior LC
2004–2005 KTM 50 SX Pro Sr

Husqvarna:

2018 Husqvarna TC50
2017 Husqvarna TC50

Part Number: 8135

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HUSQVARNA	TC 50	2017-2020
HUSQVARNA	TC 50	2017-2021
GAS-GAS	MC 50	2021
KTM	SX 50	2001-2021
KTM	SX 50	2001-2015
KTM	SX 50	2001-2019
KTM	SX 50	2001-2020
