Name: Connecting Rod LT-A450 7-10, Bronco AT-09251 12161-11H00
Brand: Namura Technologies
SKU: 56-9000.DR

Connecting Rod LT-A450 7-10, Bronco AT-09251 12161-11H00

Namura Technologies
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Connecting rod rebuild kit for Suzuki KingQuad models, including LT-A450X and LT-A500 variants, spanning years 2007 to 2017. This kit is engineered for reliability and high performance, constructed from certified chrome alloy steel for superior durability. Compatible with both aftermarket and OE crankshafts, it meets or exceeds original equipment standards.

Features:

Heavy-duty OE replacement connecting rods.
Certified chrome alloy steel for exceptional strength.
Crankpins made from hot-rolled ASTM steel, case-hardened for longevity.
Caged needle roller bearing design ensures durability under high RPM conditions.
Thrust washers made from bronze phosphor and silver-coated for enhanced wear resistance.

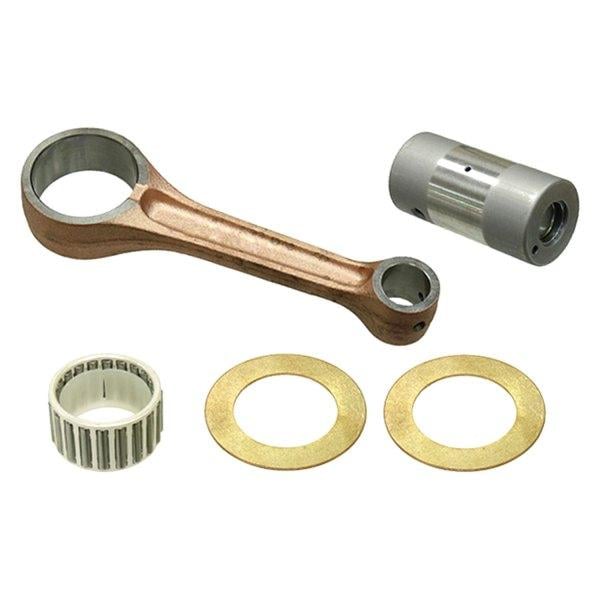

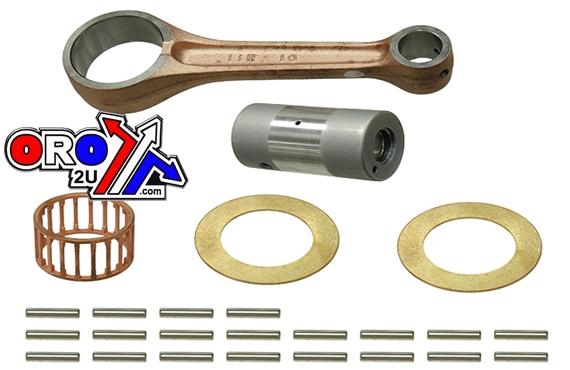

Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers where applicable.
Fully compatible with aftermarket and OE crankshafts.

Specifications:

Material: SNCM220
Centre-to-Centre Length: 141 mm
Small End Bearing: None
Small End Bore Ø: 20 mm
Small End Width: 25.00 mm
Big End Bearing Dimensions: 35 x 44 x 25 mm
Big End Bore Ø: 44 mm
Big End Width: 25.00 mm
Big End Pin Ø: 35 mm
Big End Pin Length: 71.00 mm
Washer Thickness: 35 x 55 x 1 mm

Cross-Reference OEM Part Numbers:

12161-11H00, 12210-11H00

Vehicle Compatibility:

2007-2010 Suzuki LT-A450X KingQuad AXi 4x4
2009-2017 Suzuki LT-A500X KingQuad
2011-2014 Suzuki LT-A500 KingQuad AXi
2011-2014 Suzuki LT-A500 KingQuad AXi Power Steering
2009 Suzuki LT-A500 KingQuad AXi Power Steering

Part Number: BRONCO AT-09251

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	LT A X KINGQUAD 450	2007-2010
SUZUKI	LT A X KINGQUAD 500	2009-2018
SUZUKI	LT A X KINGQUAD 500	2009-2014
