Connecting Rod Ossa 22x24 Conrod 439 BCO0439

Description

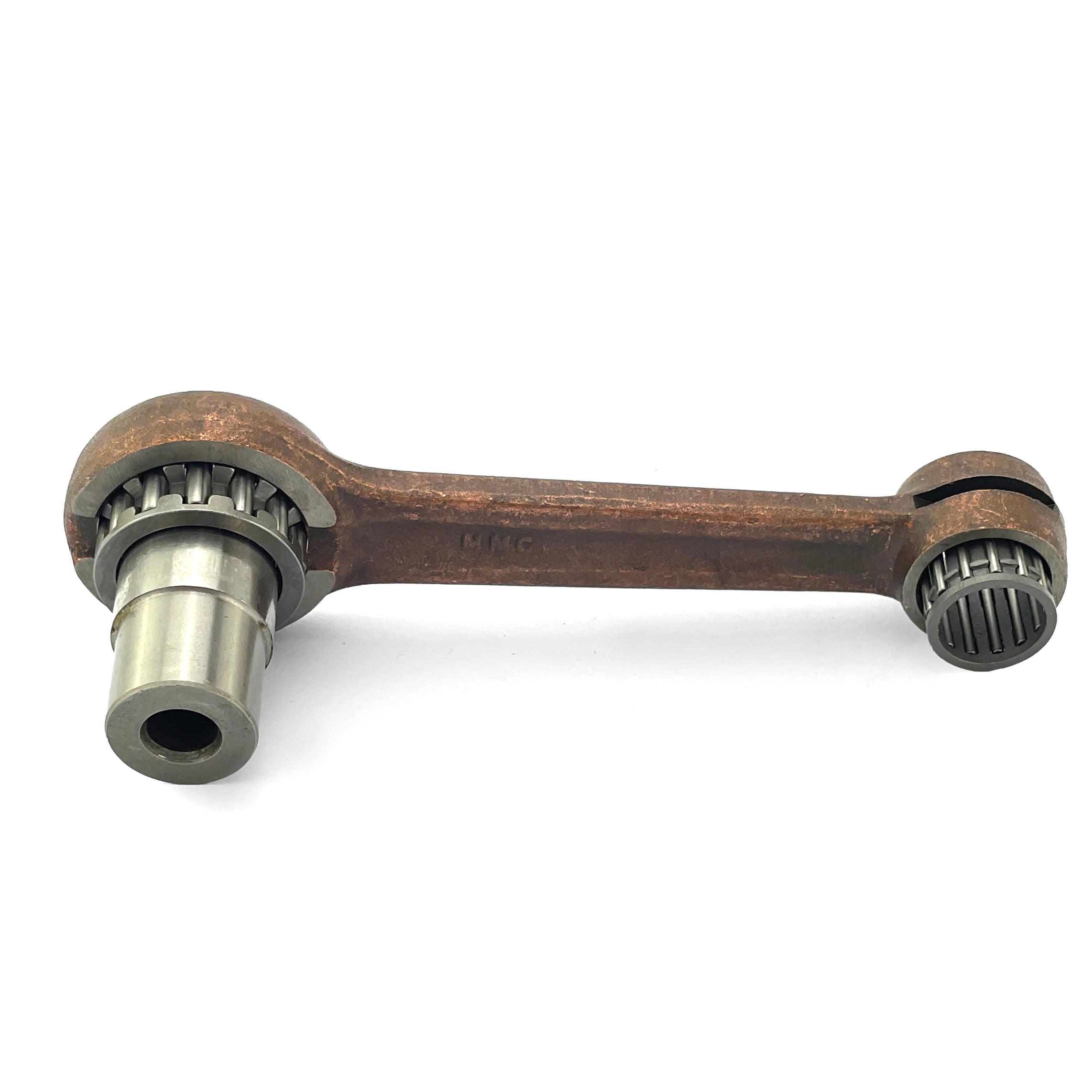

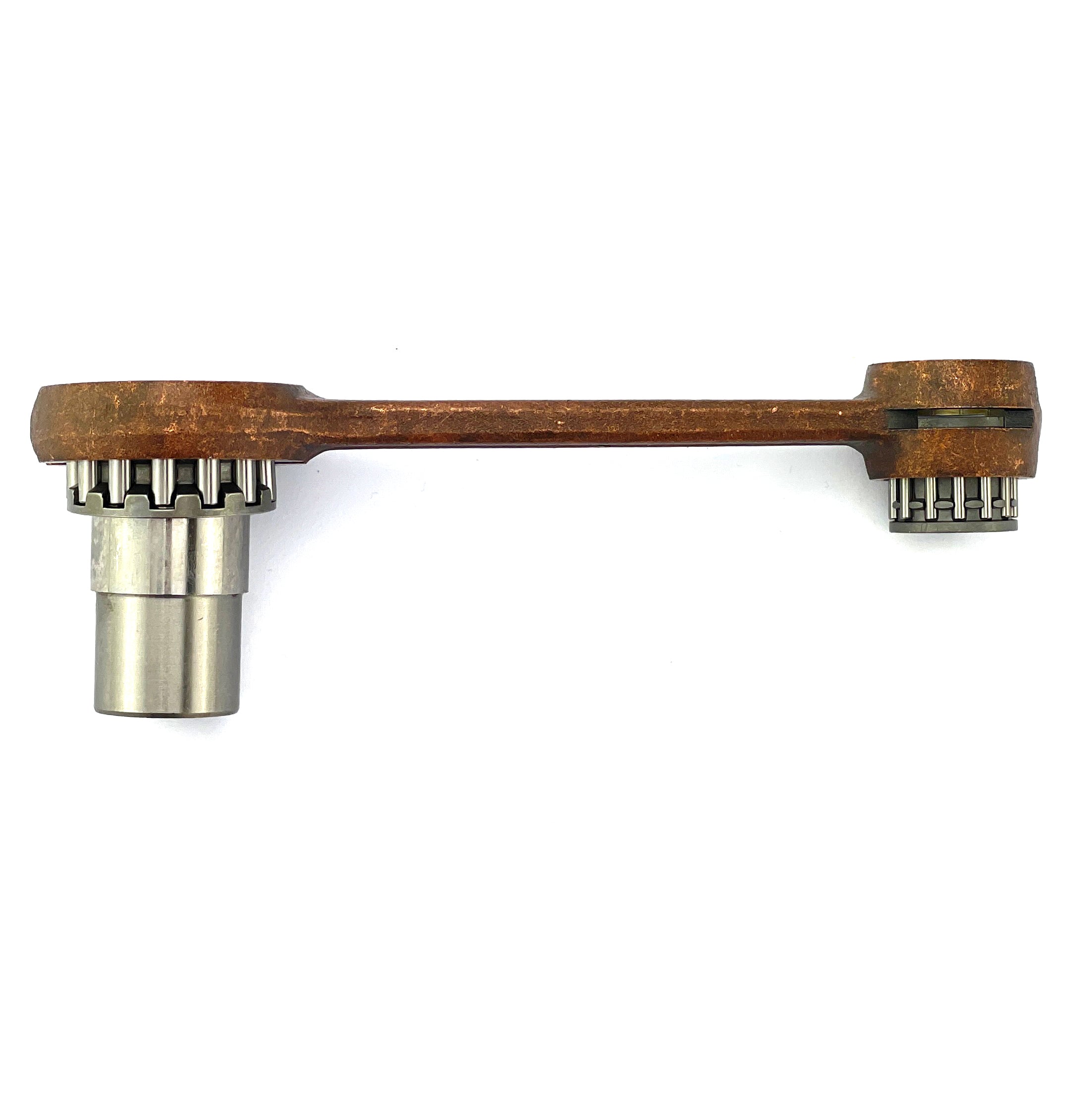

OSSA 200cc / 250cc MK1 Connecting ConRod Rebuild Kit BCO0439

  • Made in Italy.
  • Heavy-duty OE replacement connecting rods.
  • Certified Chrome alloy steel provides superior strength.
  • Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
  • Dirt Racing Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
  • Thrust washers are manufactured from bronze phosphor and are silver coated.
  • Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if needed.
  • Fully compatible with aftermarket and OE crankshafts.
  • Material: SNCM220

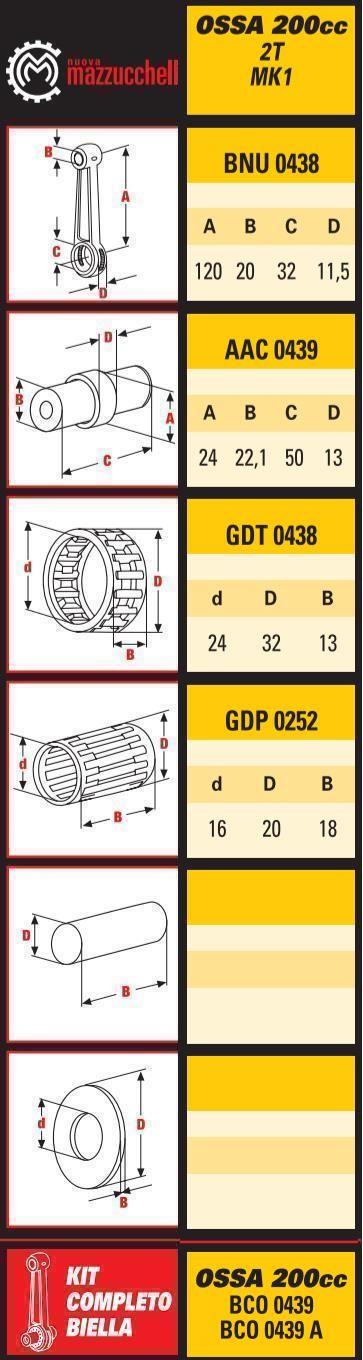

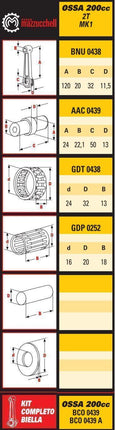

Size (MM):

  • Centre-to-Centre: 120
  • Small End Bearing: 16x20x18
  • Small End Bore Ø: 20
  • Small End Width: 11.50
  • Big End Bearing: 24x32x13
  • Big End Bore Ø: 32
  • Big End Width: 11.50
  • Big End Pin Ø: 22/24/22
  • Big End Pin Length: 50
  • Washer Thickness: None
  • PIN Size: 22x24x22 / 50mm LONG
  • ROD Size: Center-to-Center 120mm, Top Eye 20mm, Bottom Eye 32mm, Thickness 11.50mm
  • Small End Bearing & Big End Bearing.

Part No.: 56-968

Cross-reference numbers ONLY:

  • Mazzucchelli BCO0439

Connecting Rod Ossa 22x24 Conrod 439 BCO0439
