Name: Connecting Rod RMZ450, Hotrods 8647 RM-Z450
Brand: Hot Rods
SKU: 56-136.HR
Price: 232.29 GBP
Availability: InStock

Connecting Rod RMZ450, Hotrods 8647 RM-Z450

Hot Rods
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

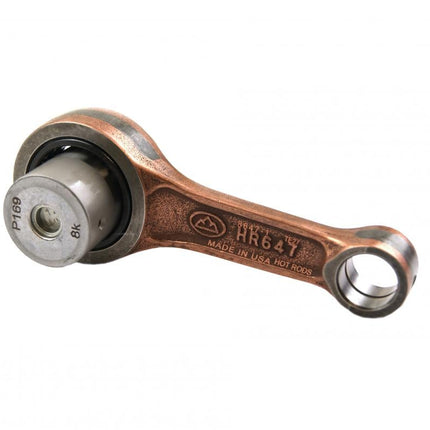

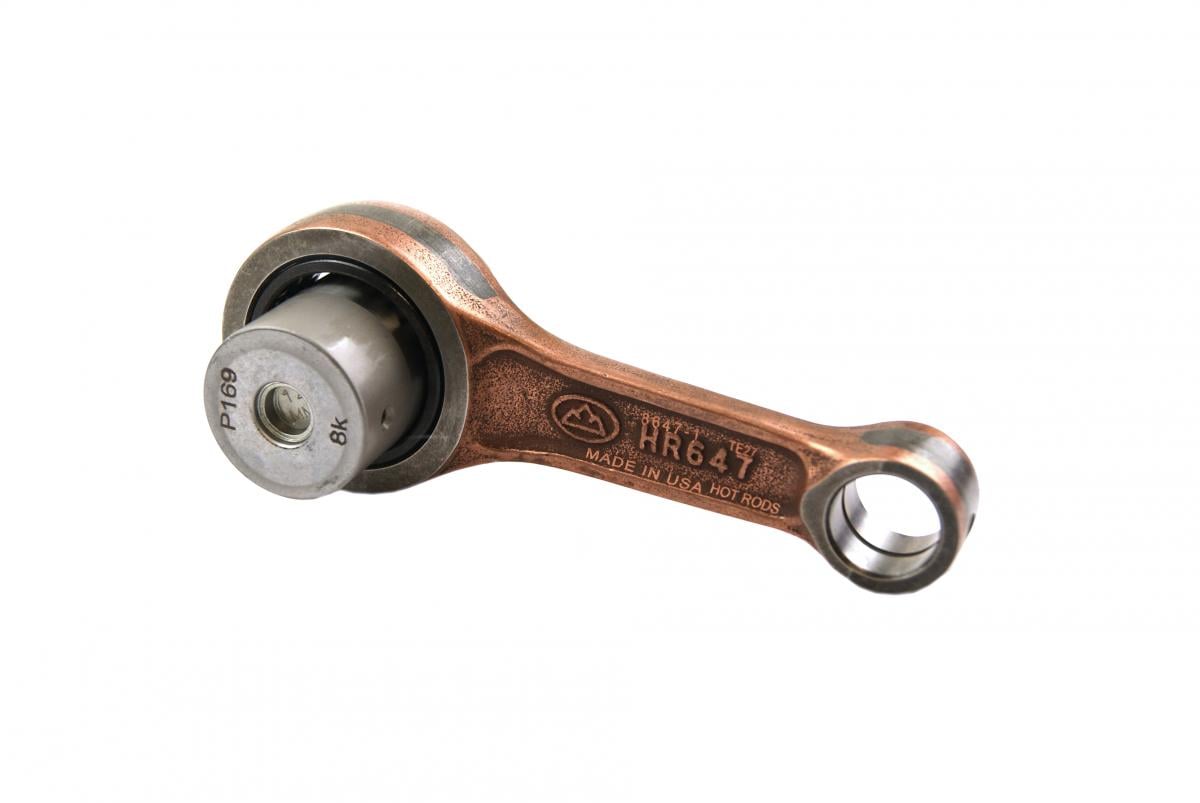

High-quality heavy-duty connecting rod kit, designed for the Suzuki RM-Z450. Manufactured to withstand demanding conditions, this kit ensures durability, optimal performance, and superior strength.

Features:

Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum reliability.
Advanced design with side scalloping and vent slots to minimize high RPM bearing race distortion.
Double-forged rods for improved grain flow and consistent dimensions.
Shot-peened and double-honed for enhanced strength under heavy loads.
Double-drilled small ends for superior lubrication and cooling of the wrist pin bearing.
Silver-coated thrust washers and crank pin bearings for reduced friction and increased lubricity.
Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a complete rebuild.

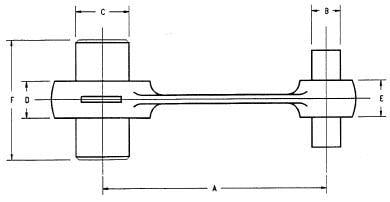

Technical Specifications:

Big End Bearing (mm): [Data missing]
Big End Bore (mm): 42.00
Big End Width (mm): [Data missing]
Center to Center (mm): 106.10
Pin Diameter (mm): 34.00
Pin Length (mm): 60.80
Small End Bearing (mm): [Data missing]
Small End Bore (mm): 19.00
Small End Width (mm): [Data missing]
Washer Thickness (mm): [Data missing]

Cross-Reference OEM Part Numbers:

ATHENA P40321030
12210-10H10 / 12210-10H11
09263-30060-0B0
12161-49H00-0B0
HR008661
HOTRODS 8661
PROX 03.3405
PSYCHIC MX-09016
12161-35G00-0B0 / 12161-35G01-0B0
WOSSNER P4012
WISECO
HOTRODS 8647

Vehicle Fitment:

Suzuki:

RM-Z450 (2005–2016)

Part Number: 56-136.HR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 450	2005-2007
SUZUKI	RM Z 450	2013-2020
SUZUKI	RM Z 450	2013-2018
SUZUKI	RM Z 450	2013-2021
SUZUKI	RM Z 450	2013-2016
