Description

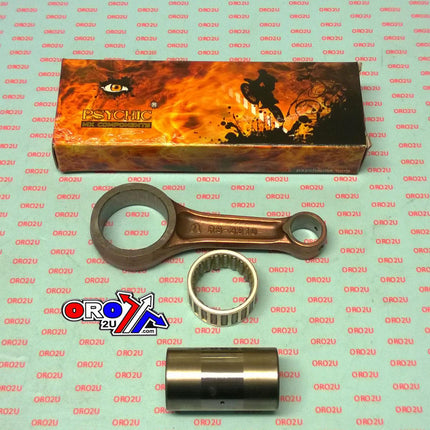

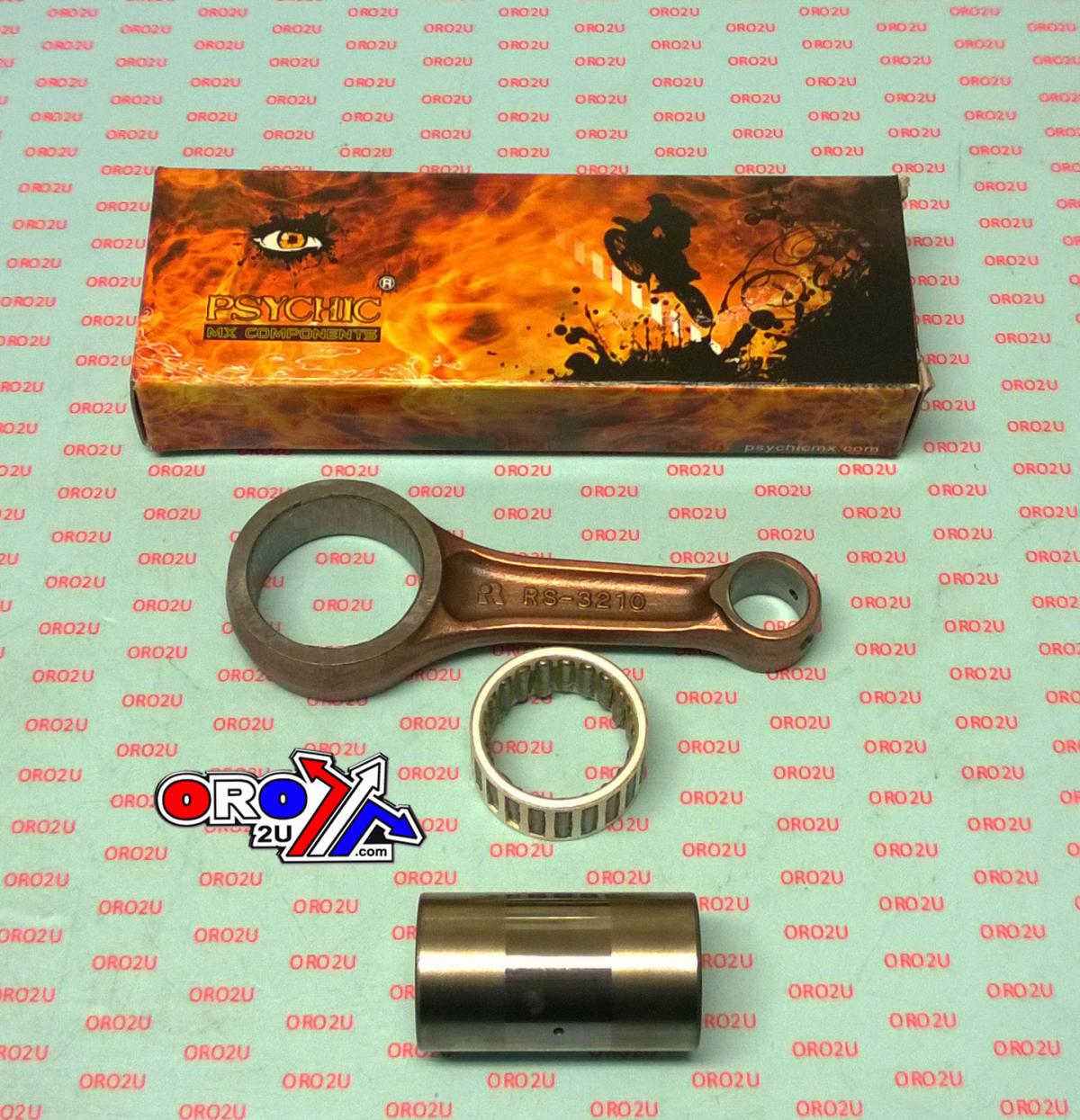

CONNECTING ROD REBUILD CONROD KIT PSYCHIC MX-09016
SUZUKI
RM-Z450 RMZ450 2005-2007,
RM-Z450 RMZ450 2013-2020,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Technical Specifications:
Big End Bearing (mm): 34x42x19.7
Big End Bore (mm): 42.00
Big End Width (mm): 19.75
Center To Center (mm): 106.10mm
Pin Diameter (mm): 34.00
Pin Length (mm): 60.80
Small End Bearing (mm): No Bushing
Small End Bore (mm): 19.00
Small End Width (mm): 16.50
Part No. 56-136.PS (radhouse.co.uk)
Cross reference numbers ONLY.
ATHENA P40321030, 12210-10H10 / 12210-10H11, 09263-30060- 0B0, 12161-49H00-0B0, HR008661, HOTRODS 8661, PROX 03.3405, PSYCHIC MX-09016, ATHENA P40321030, 12161-35G00-0B0, 12161-35G01-0B0, WOSSNER P4012, WISECO, HOTRODS 8647,
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
RM Z 450 |
2005-2007 |
| SUZUKI |
RM Z 450 |
2013-2020 |
| SUZUKI |
RM Z 450 |
2013-2018 |
| SUZUKI |
RM Z 450 |
2013-2021 |
| SUZUKI |
RM Z 450 |
2013-2016 |
