Name: Connecting Rod TRX200 ATV, Bronco AT-09135 Conrod Kit
Brand: Namura Technologies
SKU: 56-143.DR
Price: 58.74 GBP
Availability: InStock

Connecting Rod TRX200 ATV, Bronco AT-09135 Conrod Kit

Namura Technologies
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

The Bronco AT-09135 connecting rod rebuild kit is for rebuilding the connecting rod assembly on the Honda ATC and TRX models listed below. It supplies a replacement rod and crankpin components for use during a crankshaft rebuild.

Features

OE replacement connecting rod.
Compatible with OE and aftermarket crankshafts.
Caged needle roller bearing design.

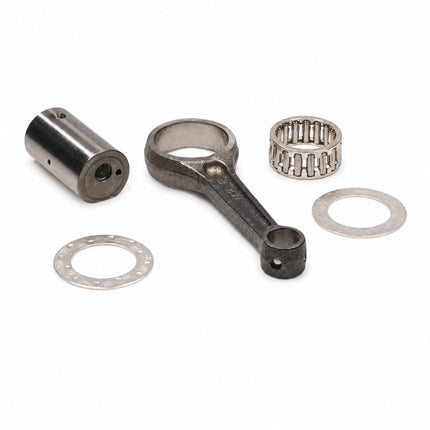

Kit Contents

Connecting rod, crankpin and crankpin bearing.
Thrust washers where required.

Specifications

Rod material: SNCM220 steel.
Crankpin: case-hardened, hot-rolled ASTM steel.
Thrust washers: silver-coated phosphor bronze.
Big-end bearing: 30 × 38 × 16 mm.
Big-end bore: 38.00 mm.
Big-end width: 16 mm.
Centre-to-centre length: 103.5 mm.
Crankpin diameter: 30.00 mm.
Crankpin length: 53.80 mm.
Small-end bore: 15.00 mm.
Small-end width: 16.00 mm.
Thrust washer dimensions: 30.15 × 46 × 1.0 mm.

Cross-Reference OEM Part Numbers

Bronco AT-09135
13202-427-300
13202-958-300
13381-HF1-670
91003-437-004
91003-440-003
VA-1012

Vehicle Fitments

Honda ATC185: 1980
Honda ATC185S: 1981–1983
Honda ATC200: 1981–1983
Honda ATC200ES Big Red: 1984
Honda ATC200M: 1984–1985
Honda ATC200S Big Red: 1984–1986
Honda ATC200X: 1983–1985
Honda TRX200 FourTrax 200: 1984

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	TRX FOURTRAX 200	1991-1997
HONDA	ATC 185	1980-1983
HONDA	TRX SX 200	1986-1988
HONDA	TRX 200	1984
HONDA	ATC SX 200	1981-1985
HONDA	TRX FOURTRAX 200	1990-1993
