Description
SUZUKI
TS185 ALL.

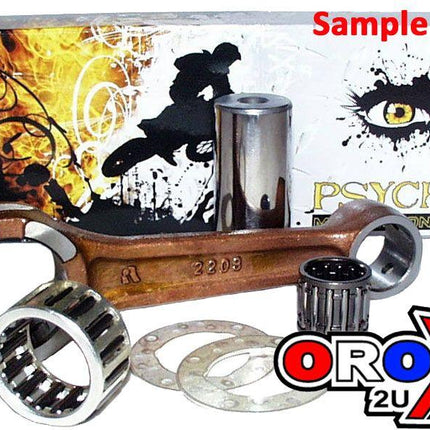

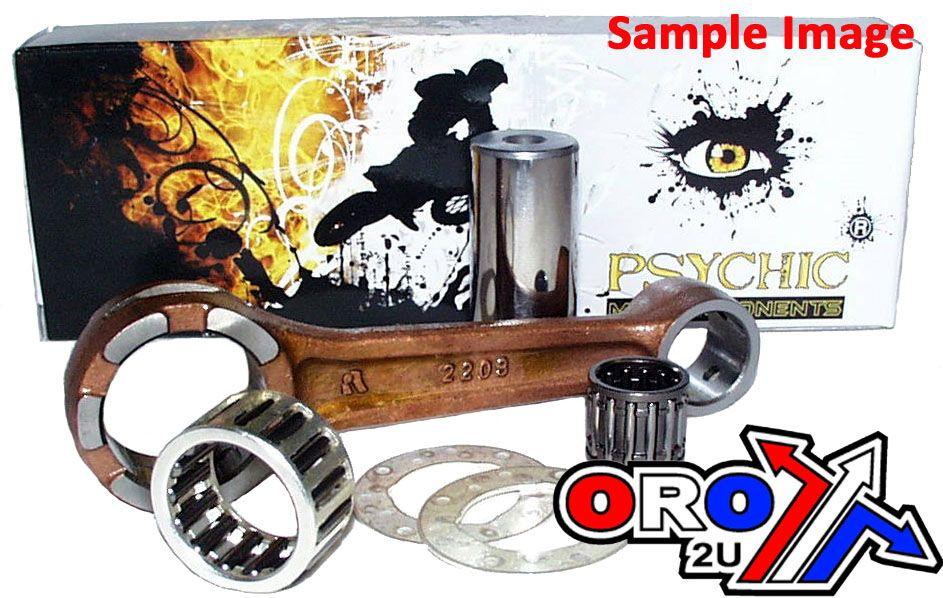

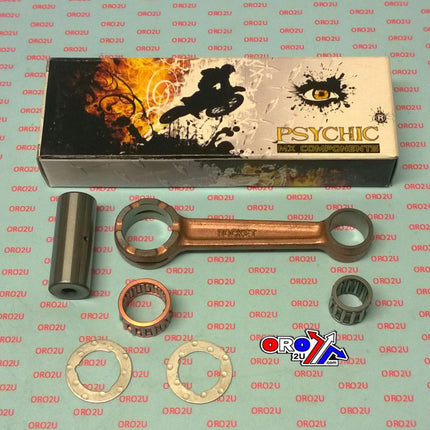

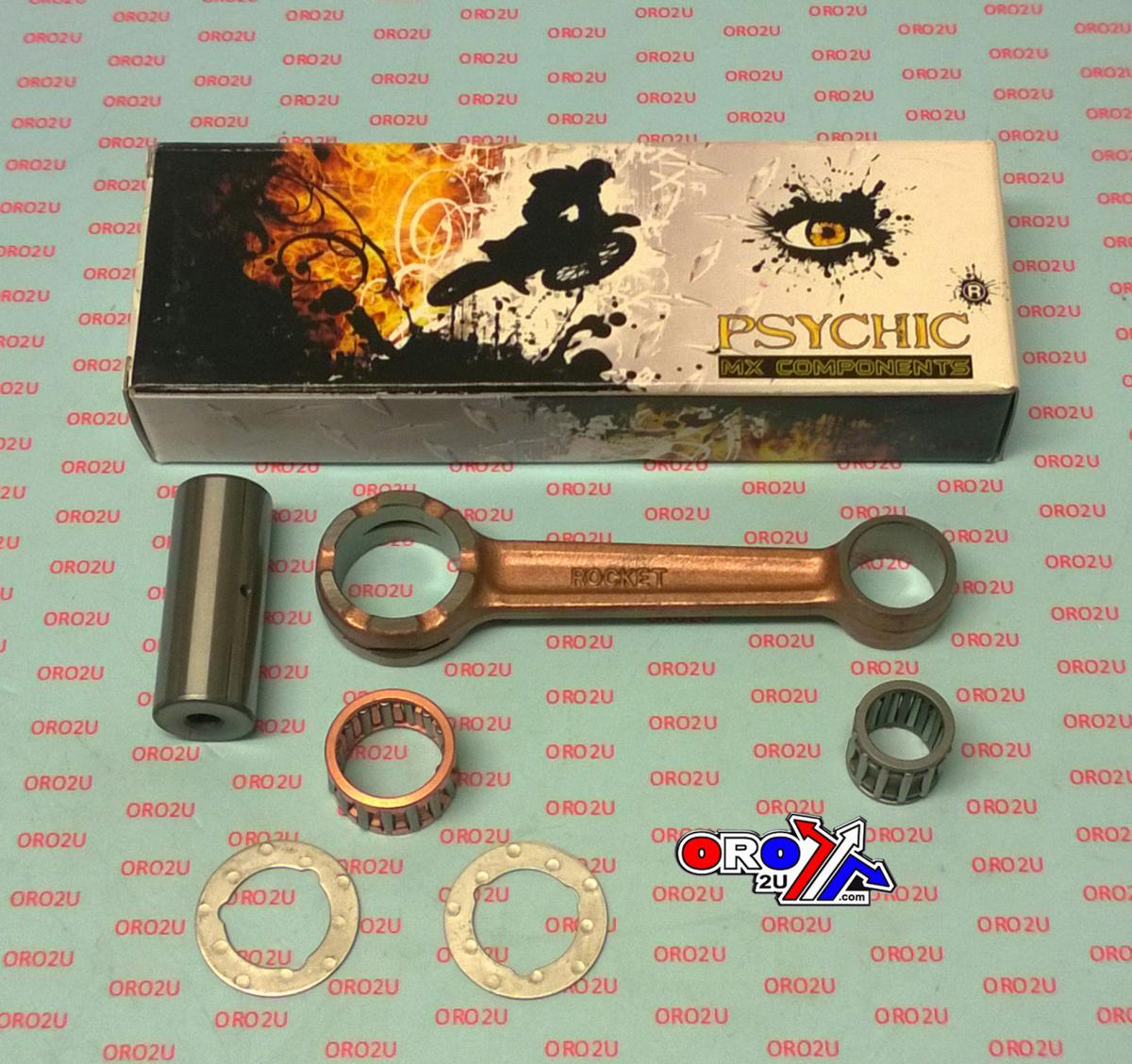

Connecting Conrod rod rebuild kit. PSYCHIC MC-09462
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 110 |
| Small End Bearing |
16x21x19.6
|
| Small End Bore Ø | 21 |
| Small End Width | 17 |
| Big End Bearing | 22x28x16 |
| Big End Bore Ø | 28 |
| Big End Width | 17 |
| Big End Pin Ø | 22 |
| Big End Pin Length | 56 |
| Washer Thickness | 22x39x1.00 |
OverAll Length 145mm
Part No. 56-895.DR (radhouse.co.uk)
Cross reference numbers ONLY.
PROX 03.3018, CRK054, 0637165,
SMALL END BEARING16X21X19.6BR 09263-16015
CONECTING ROD 12161-41500
WASHER 09160-22010
PIN, CRANK 12211-29001
BIG END BEARING RN 22X28X16 09263-22032
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| SUZUKI |
TS 185 |
1971-2015 |
