Description
VILLIERS 192cc / 200cc / 250cc,
BCO0504

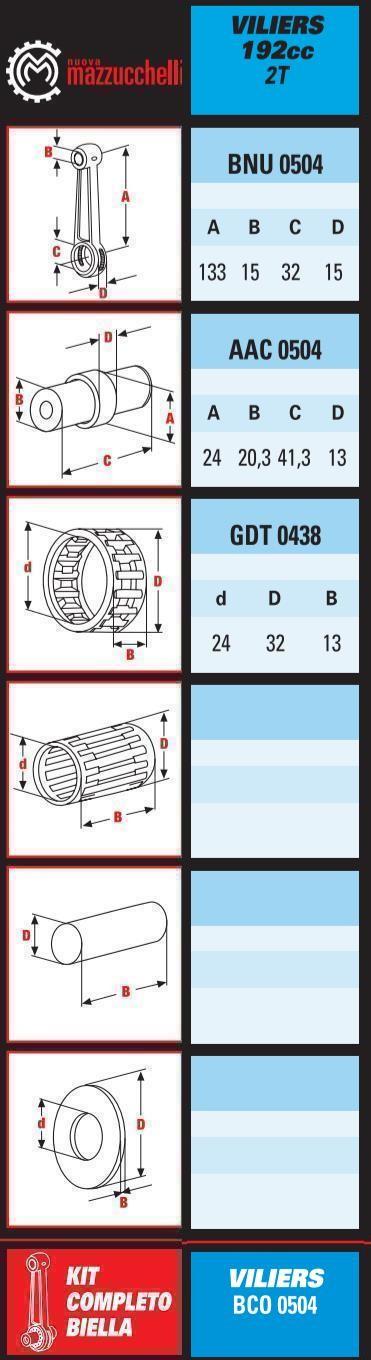

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 133, B = 15, C = 24.3, D = 13, E = 13, F = 41.30
Note, some 192 / 200 use big end pin 41.30mm
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Dirt Racing Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 133 |
| Small End Bearing | NONE BUSH
|
| Small End Bore Ø | 15 |
| Small End Width | 15 |
| Big End Bearing | 24x32x13 |
| Big End Bore Ø | 32 |
| Big End Width | 15 |
| Big End Pin Ø | 20.3 / 24 |
| Big End Pin Length | 41.3 |
| Washer Thickness | NONE
|

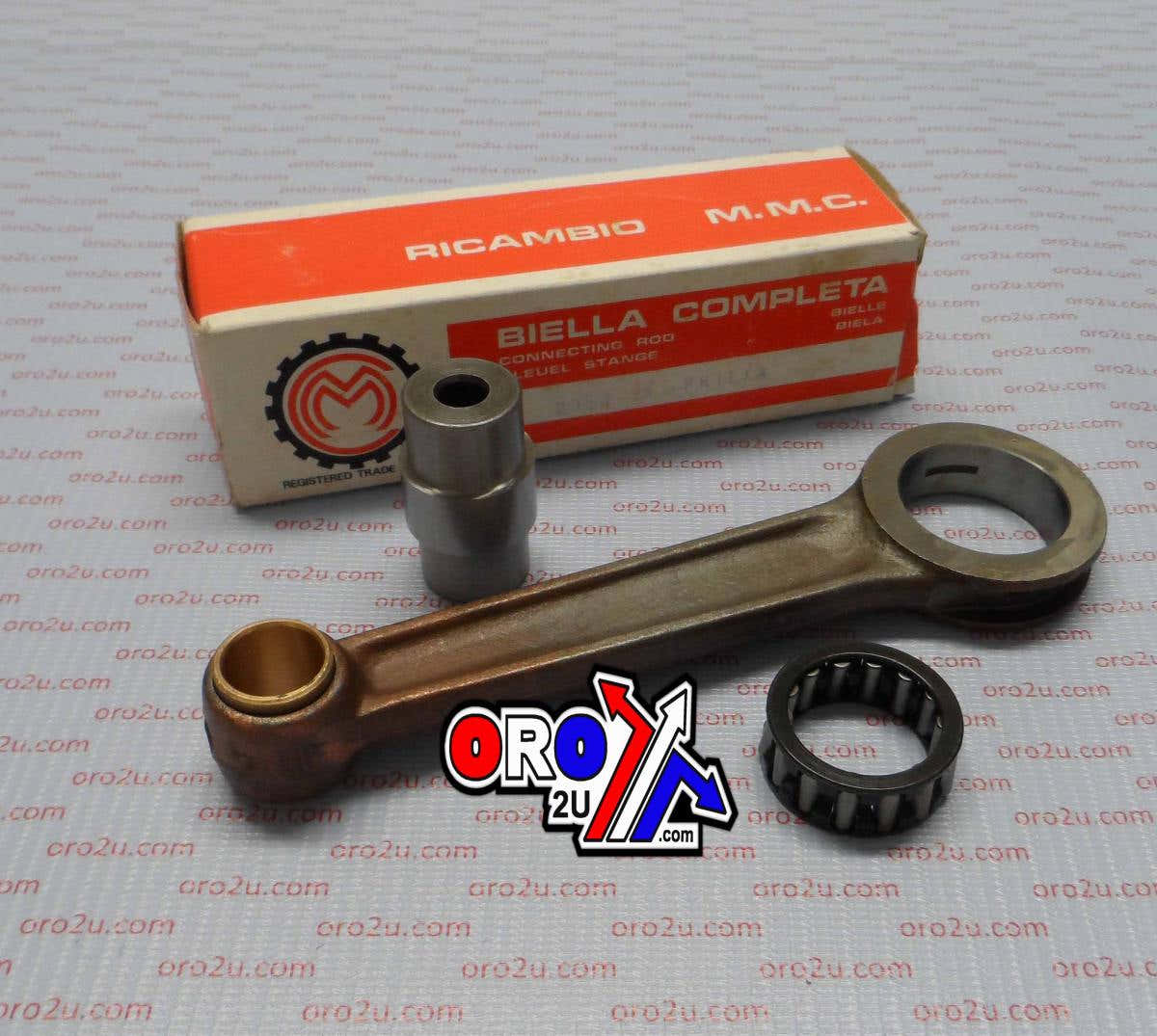

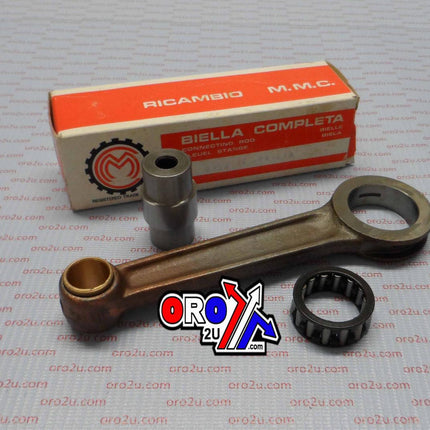

CONNECTING ROD
Part No. 56-967 (radhouse.co.uk)
