Name: Connecting Rod YFM450 Grizzly, Bronco AT-09249 Kodiak Rhino
Brand: Namura Technologies
SKU: 56-9014.BR
Price: 100.05 GBP
Availability: InStock

Connecting Rod YFM450 Grizzly, Bronco AT-09249 Kodiak Rhino

Namura Technologies
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

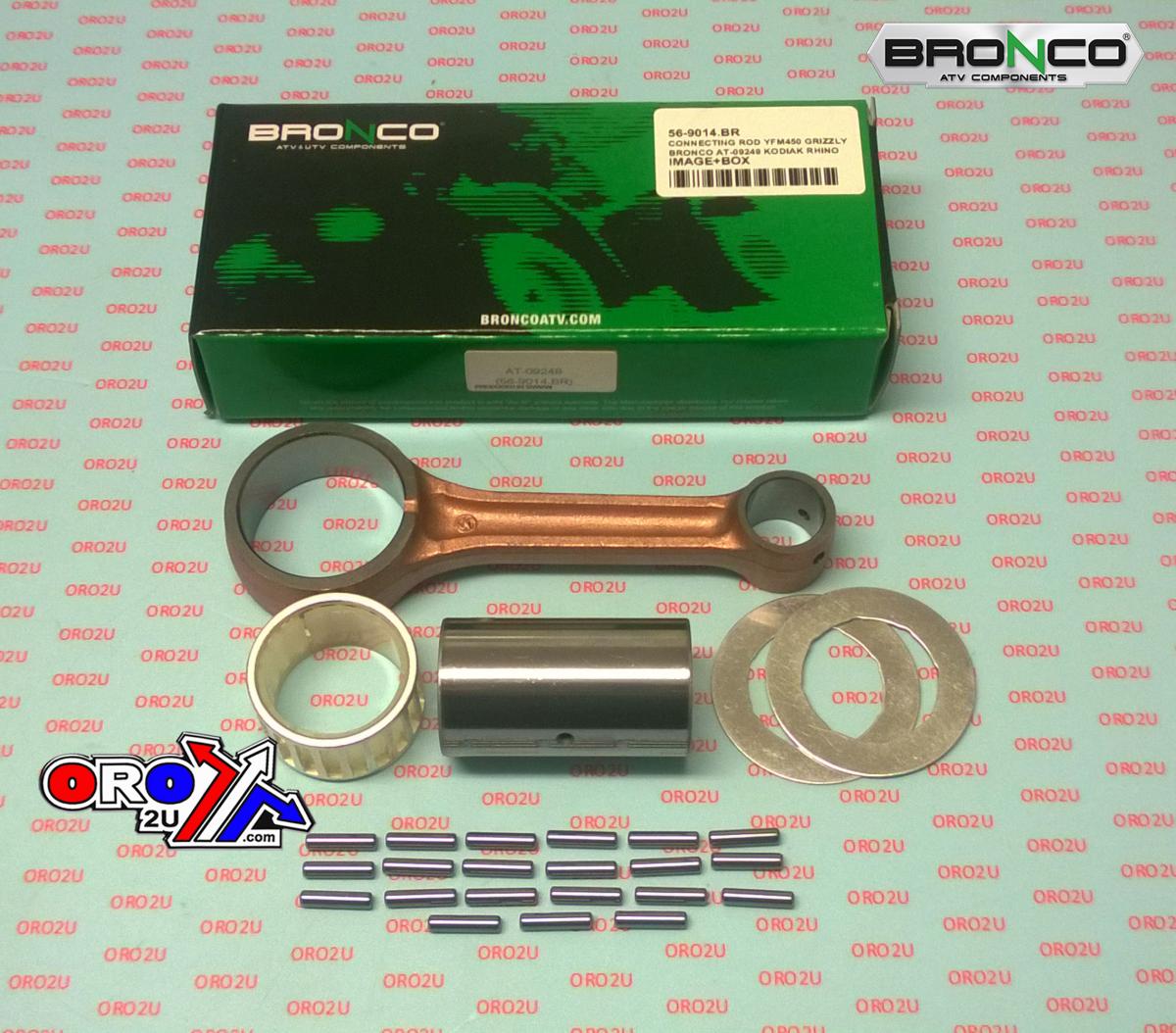

Bronco Heavy-Duty Connecting Rod Rebuild Kit - AT-09249

This heavy-duty connecting rod rebuild kit is a robust OE replacement designed for strength and longevity. Manufactured from certified chrome alloy steel (SNCM220) and case-hardened for durability, it includes all necessary components for a complete rebuild. It is fully compatible with both aftermarket and OE crankshafts.

Features:

Made from certified chrome alloy steel for superior strength.
Crankpins manufactured from hot-rolled ASTM steel and case-hardened.
Utilizes advanced caged needle roller bearing designs for high RPM durability.
Thrust washers are silver-coated bronze phosphor for added durability.
Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if needed).
Fully compatible with OE and aftermarket crankshafts.

Specifications:

Material: SNCM220 (Certified Chrome Alloy Steel)

Dimensions:

Centre to Centre: 121.50 mm
Small End Bore Ø: 20 mm
Small End Width: 22 mm
Big End Bearing: 35x43x22 mm
Big End Bore Ø: 43 mm
Big End Width: 22 mm
Big End Pin Ø: 35 mm
Big End Pin Length: 62.00 mm
Washer Thickness: 35x54x1 mm

Cross-Reference OEM Part Numbers:

YAMAHA: 5GH-11651-01-00, 5GH-11651-01, 5GH-11681-00, 90201
HOTRODS: 8703

Vehicle Fitments:

Yamaha ATV:

YFM400 Grizzly: 2007–2008
YFM400 Kodiak 2WD/4WD: 2000–2004
YFM400 Kodiak 4WD: 2005–2006
YFM450 Grizzly: 2007–2014
YFM450 Kodiak: 2003–2006, 2018
YFM450 Wolverine: 2006–2010

Yamaha UTV:

YXR450 Rhino: 2006–2009

Part Number:

56-9014.BR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YFM WOLVERINE 450	2006-2010
YAMAHA	YFM KODIAK 450	2003-2006
YAMAHA	YFM GRIZZLY 400	2007-2008
YAMAHA	YFM GRIZZLY 450	2007-2014
YAMAHA	YFM KODIAK 400	2005-2006
YAMAHA	YXR RHINO 450	2006-2009
YAMAHA	YFM KODIAK 400	2000-2004
YAMAHA	YFM KODIAK 450	2018-2019
YAMAHA	YFM 450	2006-2010

Connecting Rod YFM450 Grizzly, Bronco AT-09249 Kodiak Rhino

Namura Technologies
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Bronco Heavy-Duty Connecting Rod Rebuild Kit - AT-09249 This heavy-duty connecting rod rebuild kit is a robust OE replacement designed... Read more

2 in stock 1-2 business days

£100.05 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-9014.BR

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Bronco Heavy-Duty Connecting Rod Rebuild Kit - AT-09249

This heavy-duty connecting rod rebuild kit is a robust OE replacement designed for strength and longevity. Manufactured from certified chrome alloy steel (SNCM220) and case-hardened for durability, it includes all necessary components for a complete rebuild. It is fully compatible with both aftermarket and OE crankshafts.

Features:

Made from certified chrome alloy steel for superior strength.
Crankpins manufactured from hot-rolled ASTM steel and case-hardened.
Utilizes advanced caged needle roller bearing designs for high RPM durability.
Thrust washers are silver-coated bronze phosphor for added durability.
Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if needed).
Fully compatible with OE and aftermarket crankshafts.

Specifications:

Material: SNCM220 (Certified Chrome Alloy Steel)

Dimensions:

Centre to Centre: 121.50 mm
Small End Bore Ø: 20 mm
Small End Width: 22 mm
Big End Bearing: 35x43x22 mm
Big End Bore Ø: 43 mm
Big End Width: 22 mm
Big End Pin Ø: 35 mm
Big End Pin Length: 62.00 mm
Washer Thickness: 35x54x1 mm

Cross-Reference OEM Part Numbers:

YAMAHA: 5GH-11651-01-00, 5GH-11651-01, 5GH-11681-00, 90201
HOTRODS: 8703

Vehicle Fitments:

Yamaha ATV:

YFM400 Grizzly: 2007–2008
YFM400 Kodiak 2WD/4WD: 2000–2004
YFM400 Kodiak 4WD: 2005–2006
YFM450 Grizzly: 2007–2014
YFM450 Kodiak: 2003–2006, 2018
YFM450 Wolverine: 2006–2010

Yamaha UTV:

YXR450 Rhino: 2006–2009

Part Number:

56-9014.BR

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YFM WOLVERINE 450	2006-2010
YAMAHA	YFM KODIAK 450	2003-2006
YAMAHA	YFM GRIZZLY 400	2007-2008
YAMAHA	YFM GRIZZLY 450	2007-2014
YAMAHA	YFM KODIAK 400	2005-2006
YAMAHA	YXR RHINO 450	2006-2009
YAMAHA	YFM KODIAK 400	2000-2004
YAMAHA	YFM KODIAK 450	2018-2019
YAMAHA	YFM 450	2006-2010
