Description
YAMAHA
YZF250 YZ250F 2014-2018,
WRF250 WR250F 2015-2018,
WRF250X WR250FX 2015-2018,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09049
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

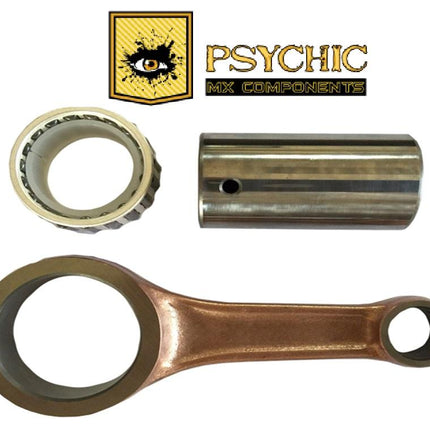

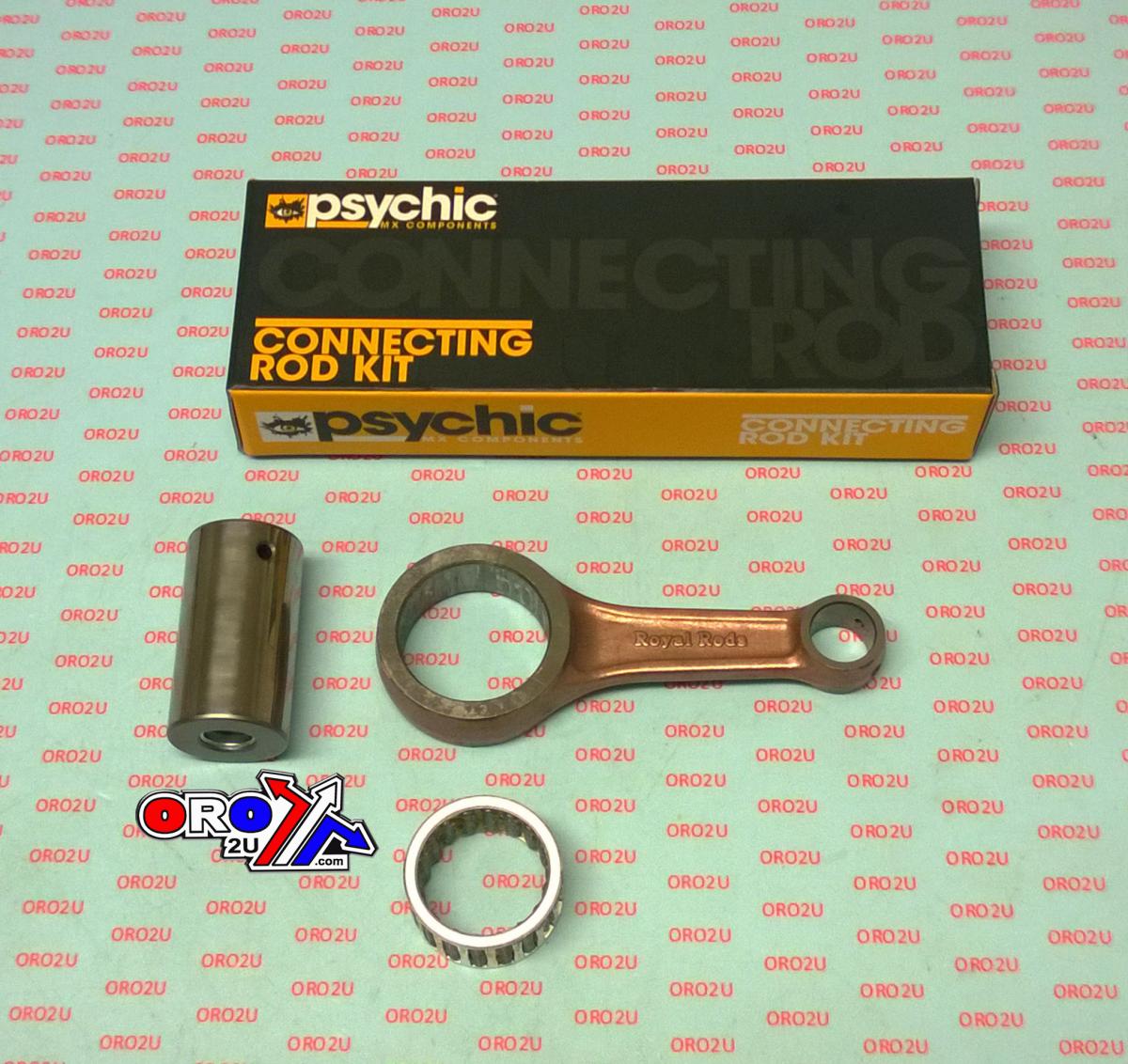

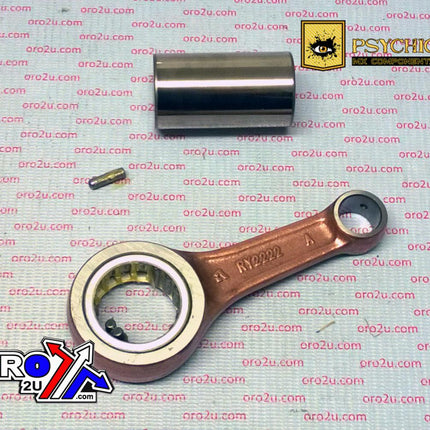

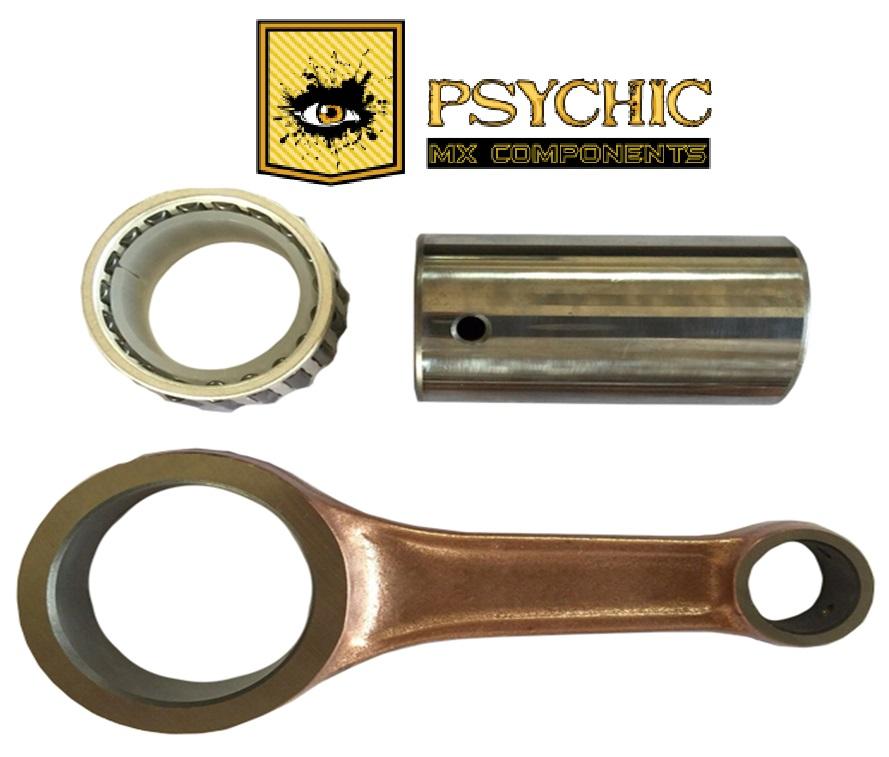

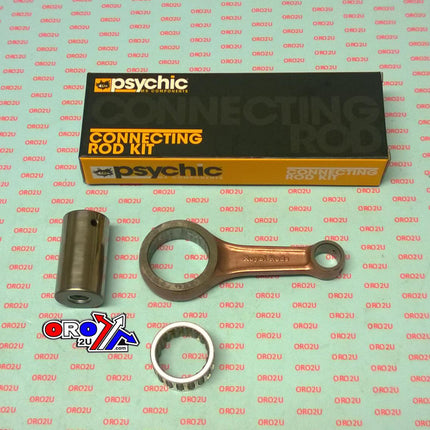

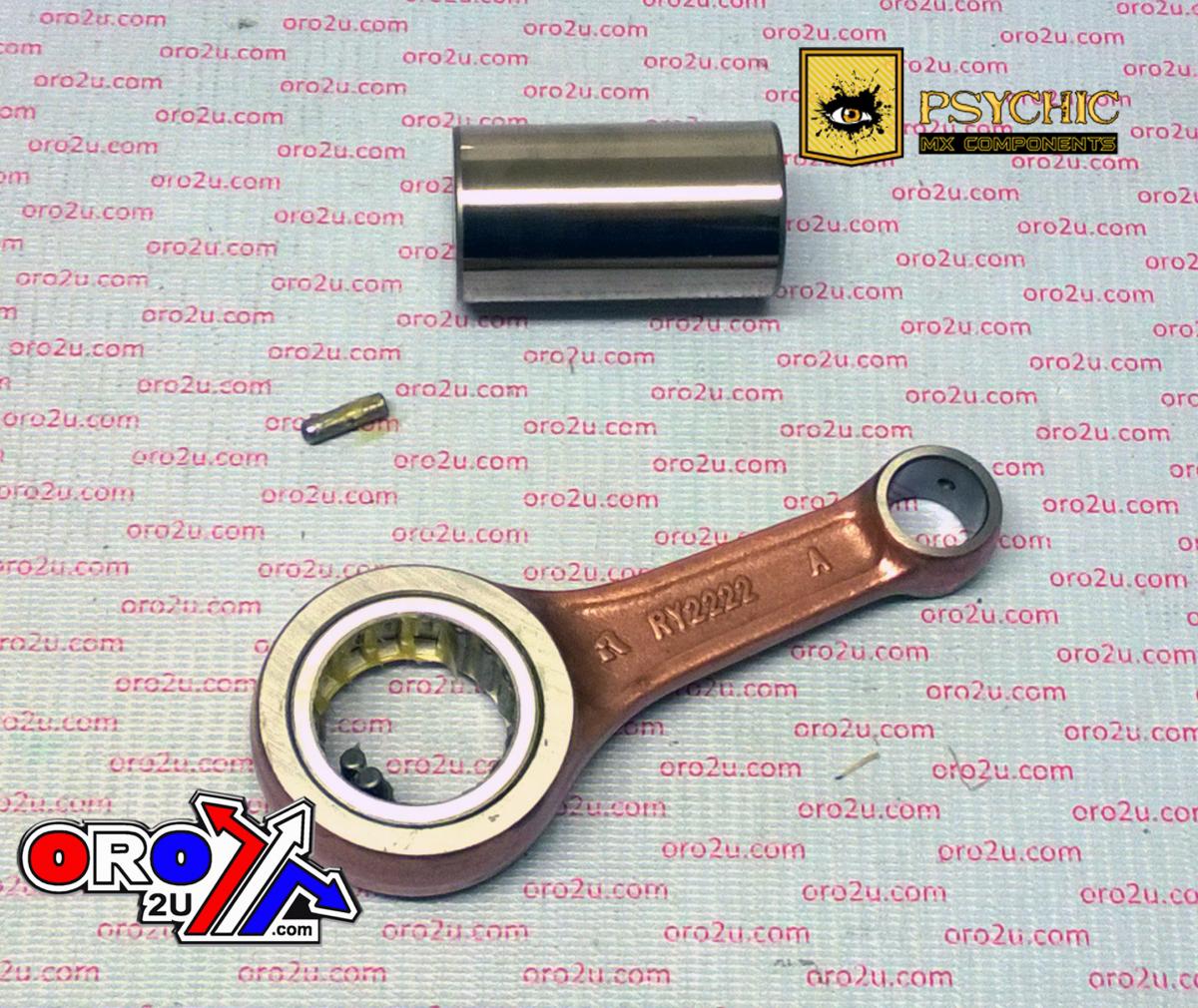

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,8620,
| SIZE | MM |
| Centre 2 Centre | 92.20 |
| Small End Bearing | None |
| Small End Bore Ø | 16
|
| Small End Width | 15 |
| Big End Bearing | 30x38x17.7 |
| Big End Bore Ø | 38 |
| Big End Width | 18 |
| Big End Pin Ø | 30 |
| Big End Pin Length | 54.80 |
| Washer Thickness | None |
Part No. 56-2968.DR (radhouse.co.uk)
Cross reference numbers ONLY.
RY-2222, 5UL-11651-00-00 5XC-11651-00-00, 1SM116510100, 1SM-11651-01-00, HOTRODS 8706, PROX 03.2414, WOSSNER P4063, 1SM-11651-00-00, ATHENA P40321021
