Description
YAMAHA
YZ125 2005 - 2020,

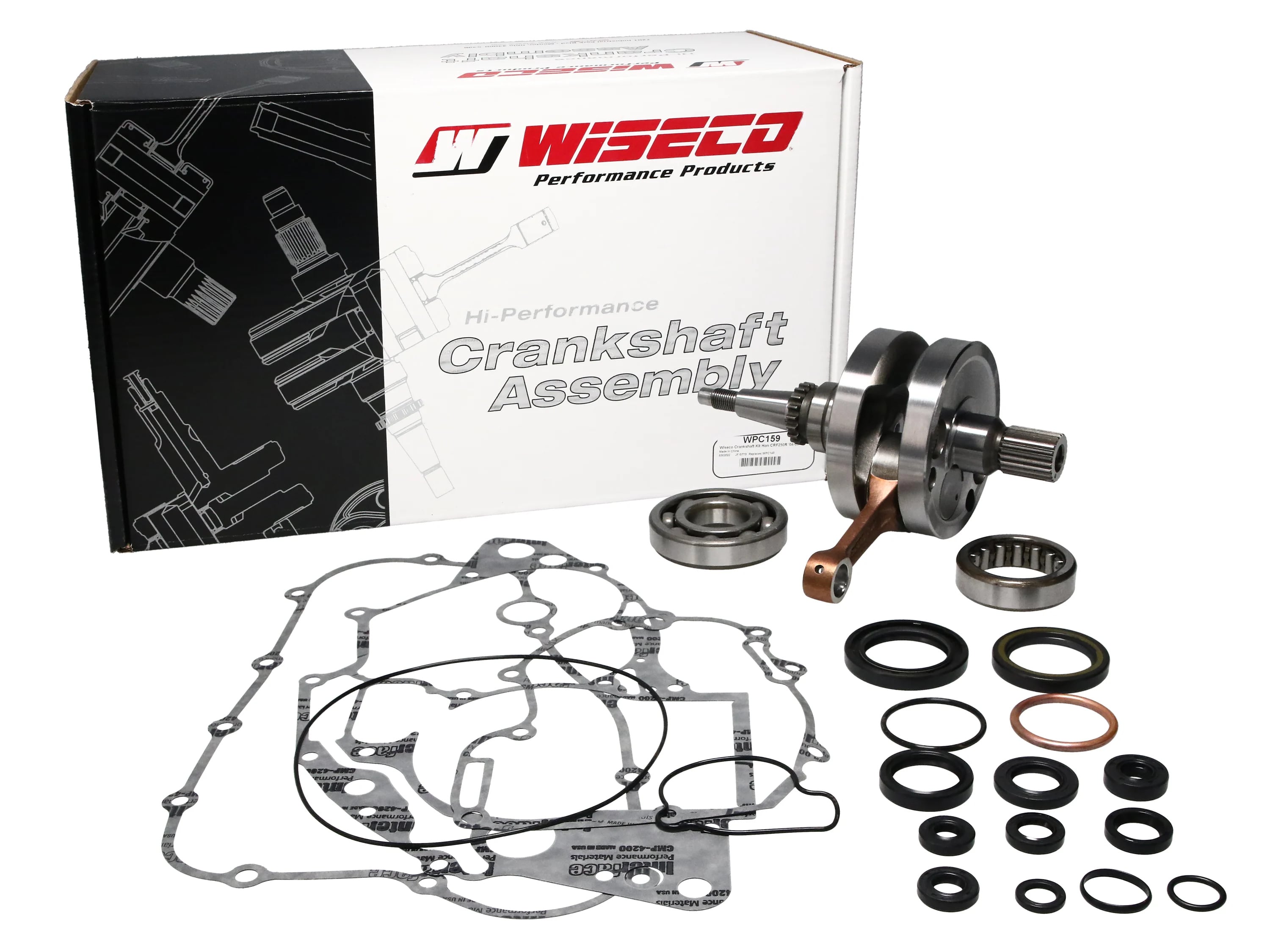

Wiseco Crankshaft w/Bearings and Gaskets - WPC163,
ӢPrecision-trued to OEM specifications and factory assembled
ӢShot-peening eliminates residual stresses and smoothly blends the rod forging surfaces
ӢCorrosion-resistant surface treatment
ӢCrank pin bearing radial running clearance is optimized to ensure maximum performance
ӢPrecision honing ensures ultra-round bearing surface
ӢPrecision-engineered oiling slots maximize rod strength and bearing life
ӢDouble-drilled small ends provide the piston pin with extra lubrication and cooling, reducing distortion of top end due to thermal transfer from the piston
ӢSilver-coated bronze phosphor thrust washers with dimpled design increase oil retention and reduce friction between rod and washer interface
ӢCrank pin bearings are manufactured with the highest-quality hot-rolled steel -- case hardened to 58-62 RC
ӢCaged needle roller bearings provide the highest possible RPM
ӢPrecision-machined crank webs
ӢCrankshaft comes with top-end bearing and gasket
Included Items:
(1) Crankshaft with connecting rod installed
(2) 22 x 56 x 16mm Bearings
(1) Bottom End gasket set with 10 seals
Part No. 56-240.WI (radhouse.co.uk)
Yamaha
- 2018 Yamaha YZ125
- 2017 Yamaha YZ125
- 2016 Yamaha YZ125
- 2015 Yamaha YZ125
- 2014 Yamaha YZ125
- 2013 Yamaha YZ125
- 2012 Yamaha YZ125
- 2011 Yamaha YZ125
- 2010 Yamaha YZ125
- 2009 Yamaha YZ125
- 2008 Yamaha YZ125
- 2007 Yamaha YZ125
- 2006 Yamaha YZ125
- 2005 Yamaha YZ125
Precision-trued to OEM specifications and factory assembled Connecting rods are double-forged to maintain superior dimensional consistency through improved grain flow Shot-peening eliminates residual stresses and smoothly blends the rod forging surfaces Corrosion-resistant surface treatment Top and bottom end rod bores case hardened to 58-62 RC to optimize bearing running surface Crank pin bearing radial running clearance is optimized to ensure maximum performance Precision honing ensures ultra-round bearing surface Precision-engineered oiling slots maximize rod strength and bearing life Double-drilled small ends provide the piston pin with extra lubrication and cooling, reducing distortion of top end due to thermal transfer from the piston Silver-coated bronze phosphor thrust washers with dimpled design increase oil retention and reduce friction between rod and washer interface Crank pin bearings are manufactured with the highest-quality hot-rolled steel -- case hardened to 58-62 RC
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| YAMAHA |
YZ 125 |
2005-2018 |
| YAMAHA |
YZ 125 |
2005-2021 |
| YAMAHA |
YZ 125 |
2005-2020 |
| YAMAHA |
YZ 125 |
2005-2016 |
| YAMAHA |
YZ 125 |
2020-2021 |
