Description
Athena Big Bore Cylinder Kit Ø 100 mm, 490 cc - P400250100003 (Includes Piston)
Athena has dedicated over a decade to enhancing the world of cylinder aftermarket replacement parts, with continuous investments aimed at elevating production and performance standards. Every cylinder within Athena's repertoire is meticulously engineered in Italy by the adept R&D Department, boasting a wealth of internal expertise and the latest design and testing tools. These cylinders are meticulously coated with motor-nicksil, a proprietary nickel-silicon coating developed by Athena to ensure impeccable smoothness and outstanding wear resistance.
Athena's cylinder kits and their components are globally acclaimed for their exceptional performance, unwavering durability, and unparalleled reliability.

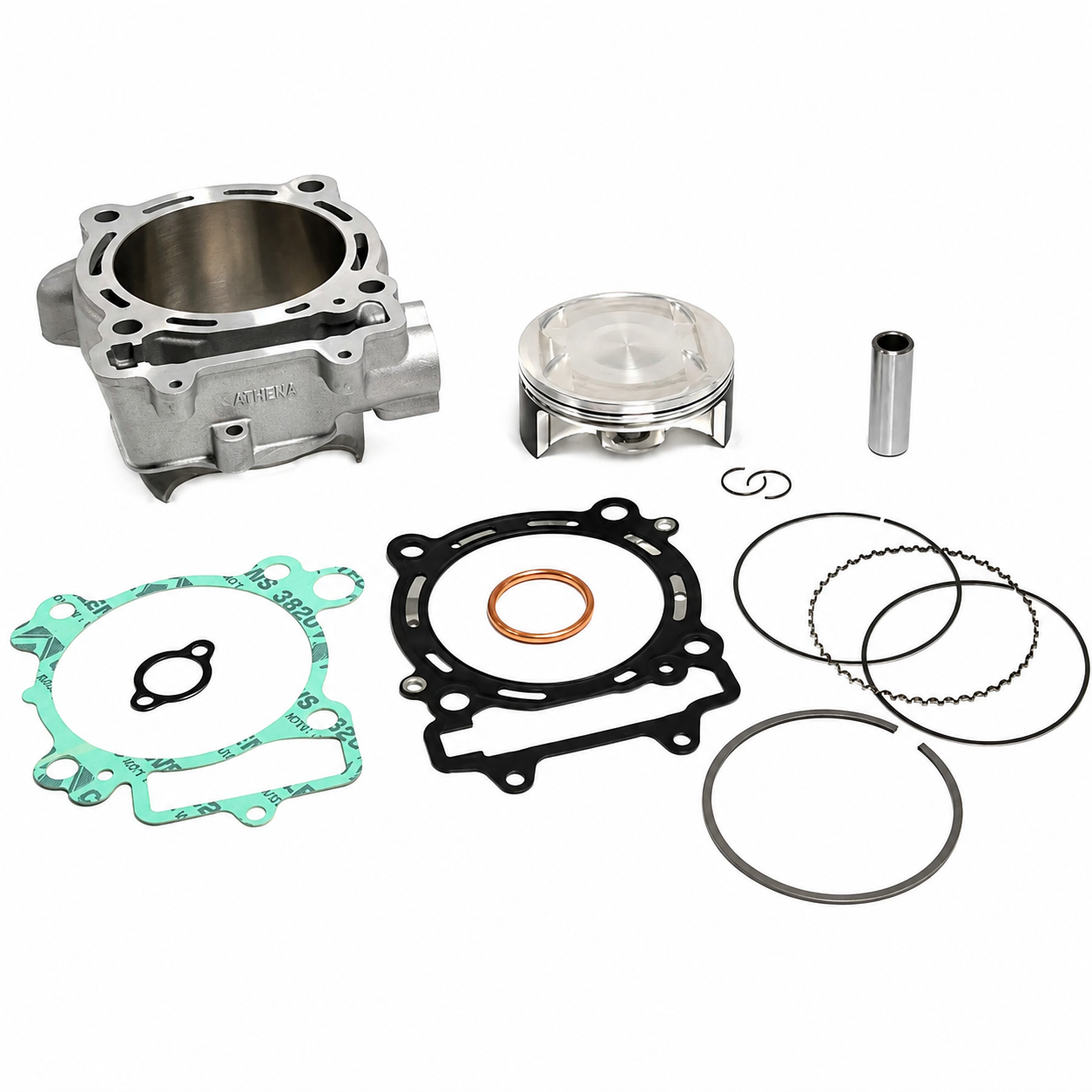

Athena's Big Bore Cylinder Kits usher in a notable performance boost, observable throughout the power curve, all while maintaining the same level of reliability as the original components. This kit comprises a high-quality aluminium cylinder with an expanded bore, a complete piston inclusive of the piston pin and rings, and all the requisite gaskets.
Each component within the kit is engineered to withstand the most demanding conditions, including extreme temperatures, pressures, and stresses, all rigorously validated by Athena's seasoned technicians through rigorous bench and road tests.
Installation of this cylinder kit necessitates no modifications to the engine crankcase.
CAUTION: All Athena products must be used in strict adherence to the specific national regulations of the member state where they are marketed or sold. Athena disclaims all responsibility for any improper use.
Technical Features:
- Bore Diameter (mm): 100.00
- Compression Ratio: 12.0:1
- Displacement (cc): 490
- Net Weight (Kg): 2.55
Partner Cross Reference Code and Optional Parts:
- S4F10000011A Piston Kit 99.95
- S4F10000011B Piston Kit 99.96
- P400250160003 Gaskets Kit
- S41316062 Rings
- S41317005 Piston Pin
Vehicle Compatibility:
- KAWASAKI KLX R 450 cc 2008/2017
- KAWASAKI KX F 450 cc 2006/2008
Part No. 56-K124.100.KIT
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| KAWASAKI |
KX F 450 |
2006-2008 |
| KAWASAKI |
KLX R 450 |
2008-2017 |
| KAWASAKI |
KFX R 450 |
2008-2014 |
| KAWASAKI |
KLX R 450 |
2008-2013 |
| KAWASAKI |
KX F 450 |
2008 |
| KAWASAKI |
KX F 450 |
2006-2007 |
| KAWASAKI |
KLX R 450 |
2017 |
| KAWASAKI |
KLX R 450 |
2016 |
| KAWASAKI |
KLX R 450 |
2015 |
| KAWASAKI |
KLX R 450 |
2012 |
| KAWASAKI |
KLX R 450 |
2009 |
| KAWASAKI |
KLX R 450 |
2008 |
| KAWASAKI |
KLX R 450 |
2013-2014 |
| KAWASAKI |
KLX R 450 |
2010-2011 |
