Description
Athena Big Bore Cylinder Kit Ø 83 mm, 300 cc (CDI and Piston included) - P400220100005
Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena’s R&D Department, which has strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.
Athena’s cylinder kits and its components are recognized worldwide for their performance, durability, and reliability.
Athena’s Big Bore Cylinder Kits guarantee an increase in performance that can be observed along the power curve, keeping the reliability at the same level as the original components.

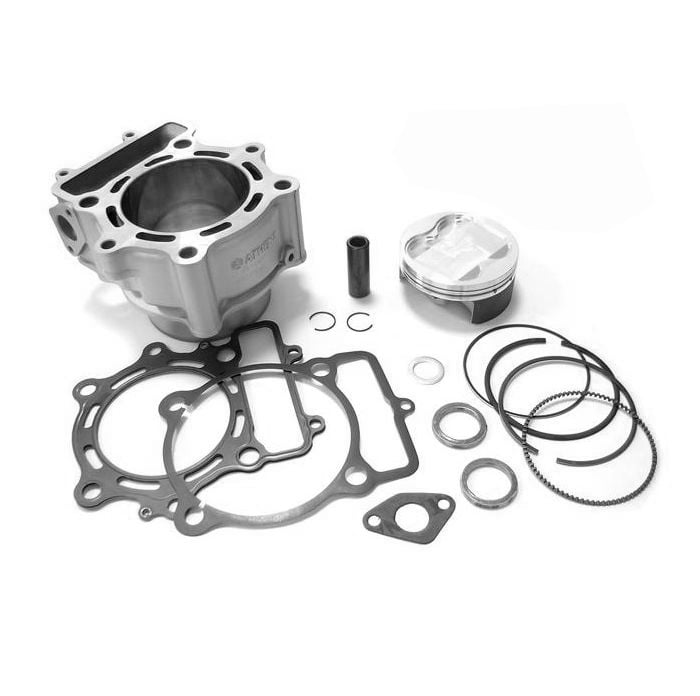

The kit includes the high-quality aluminium cylinder with increased bore, CDI, the complete piston with the piston pin and rings, and all the necessary gaskets.
All the components of the kit have been developed to withstand the highest temperatures, pressures, and stresses and have been validated by Athena technicians with severe bench and road tests.
This cylinder kit can be installed without making any changes to the engine crankcase.
CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.
Technical Features:
- Bore Diameter (mm): 83.00
- Compression Ratio: 12.5:1
- Displacement (cc): 300
- Net Weight (Kg): 1.50
Partner Cross Reference Code and Optional Parts:
- S4F08300006A: Piston Kit 82.95 - Rev.dome-low C
- S4F08300006B: Piston Kit 82.96 - Rev.dome-low C
- P400220160003: Gaskets Kit
- P400220170002: Additional Electronic Unit Ecu
- S41316133: Rings
- S41317010: Piston Pin
Compatibility:
- HUSQVARNA SMR 250 cc 2008/2009
- HUSQVARNA TC Husqvarna Engine 250 cc 2008/2009
- HUSQVARNA TE Husqvarna Engine 250 cc 2008/2009
- HUSQVARNA TE Husqvarna Engine 310 cc 2010/2018
- HUSQVARNA TXC Husqvarna Engine 250 cc 2008/2009
Part No.: 56-K119.83.KIT3
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HUSQVARNA |
TE 250 |
2008-2009 |
| HUSQVARNA |
TE 310 |
2010 |
| HUSQVARNA |
TXC 250 |
2008-2009 |
| HUSQVARNA |
TC 250 |
2008-2009 |
| HUSQVARNA |
SMR 250 |
2008-2009 |
