Name: Cylinder & Head 47.00mm Honda 1970 - 2009 Trx CRF Xr Ct 70
Brand: Factory Image Racing
SKU: 56-K220.KIT.H

Cylinder & Head 47.00mm Honda 1970 - 2009 Trx CRF Xr Ct 70

Factory Image Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

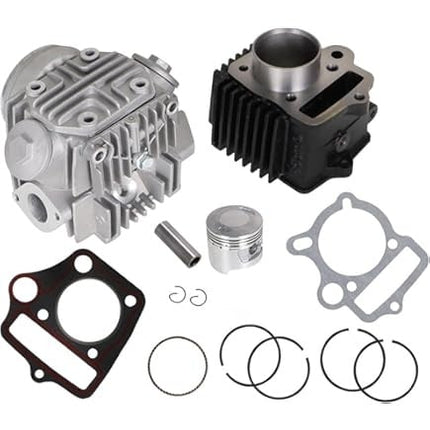

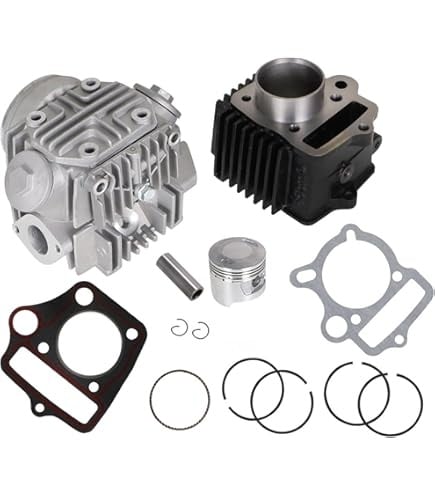

This complete top end rebuild kit is designed for Honda 70cc engines and includes all key components needed for a comprehensive overhaul. The kit contains a 47mm piston, rings, pin, cylinder, cylinder head, camshaft, valves, and gaskets. It is engineered for compatibility with multiple Honda models across several decades, ensuring restoration of performance to OEM specifications.

Features

Includes piston (47mm), rings, pin, cylinder, cylinder head, gaskets, camshaft, and valves
Direct OEM replacement
Manufactured to meet or exceed OEM standards
High-quality materials ensure durability and reliability
Easy installation with professional support recommended if needed

Specifications

Piston Bore: 47mm
Full Top End Rebuild Kit
Part No: 56-K220.KIT.H

Cross-Reference OEM Part Numbers

Piston Clip: 94601-13000
Cylinder: 12101-GB0-910
Cylinder Gasket: 12191-GW8-681, 12191-GW8-682, 12191-GW8-683
Cylinder Head Gasket: 12251-GB5-811
Piston Ring Set (RIKEN): 13011-GCF-A20
Piston (ART): 13101-GCF-A20
Piston Pin: 13111-GB0-910
Camshaft: 14100-GK4-000
Cylinder Head: 12200-GB5-931, 12200-GT0-751
Valve Guide (Inlet, Oversize): 12237-GB4-305
Valve Guide (Exhaust, Oversize): 12245-GB4-305
Valve Stem Seal: 12209-GB4-681
Valve Rocker Arm: 14431-035-020
Rocker Arm Shaft: 14451-035-000
Inlet Valve: 14711-GN5-913
Exhaust Valve: 14721-GF6-010
Valve Spring (Outer, Nippon Hatsujo): 14751-GE0-003, 14751-GK4-761
Valve Spring (Outer, Chuo Hatsujo): 14751-GE0-004, 14751-GK4-762
Valve Spring (Inner, NHK Spring): 14761-GE0-003, 14761-GE0-004
Valve Spring (Inner, Chuo Spring): 14761-GE0-004
Valve Spring Retainer: 14771-GB4-680
Valve Spring Seat (Outer): 14775-MA6-000
Valve Cotter: 14781-MA6-000
Tappet Adjusting Screw: 90012-333-000
Tappet Adjusting Nut: 90206-001-000

Vehicle Fitments

1983 Honda C70 Passport
1982 Honda C70 Passport
1979 Honda C70 Passport
1978 Honda C70 Passport
1977 Honda C70 Passport
1976 Honda C70 Passport
1975 Honda C70 Passport
1974 Honda C70 Passport
1973 Honda C70
1972 Honda C70
1971 Honda C70
1970 Honda C70 Passport
1973 Honda CL70 Scrambler
1972 Honda CL70 Scrambler
1971 Honda CL70 Scrambler
1970 Honda CL70 Scrambler
1969 Honda CL70 Scrambler
1971 Honda CM70
2011 Honda CRF70F
2009 Honda CRF70F
2008 Honda CRF70F

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	TRX 70	1985-1987
HONDA	CRF 70	2005-2011
