Name: Cylinder Head Gasket 98mm Yamaha Yfz/yz 450 03-11, Athena S410485001180 For 480cc Big Bore Kit
Brand: Athena
SKU: 56-K108_98_GHA.

Cylinder Head Gasket 98mm Yamaha Yfz/yz 450 03-11, Athena S410485001180 For 480cc Big Bore Kit

Athena
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

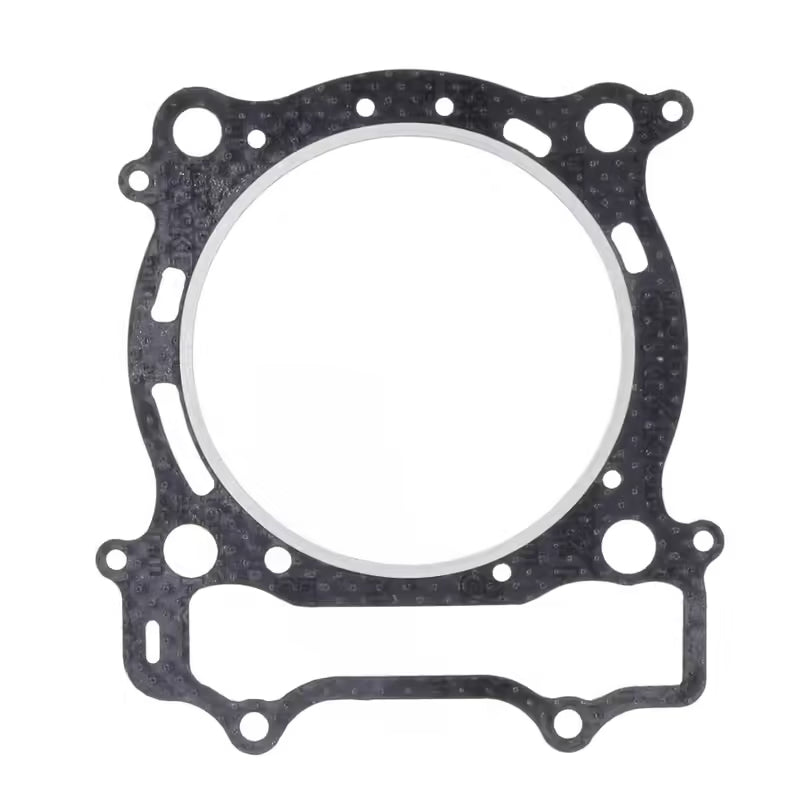

ATHENA Cylinder Head Gasket Ø 98,2 mm and thickness 0,75 mm - S410485001180

Description

The head gasket is a complex and crucial technological component. To meet the ongoing needs of the market, Athena conducts meticulous checks on its head gaskets, both during the design phase and during bench tests. Athena head gasket can be produced using different technologies, such as metal/elastomer combinations or multilayer with Athena steel and coating materials. Choosing a Top-quality gasket is the first step towards a reliable engine.

Depending on the type, it is submitted to:

1.1. High precision cutting

Thanks to latest generation lasers, it is possible to obtain a high degree of precision and purity, completely eliminating production burrs. These can cause various elements (oil, water, compression gas) to infiltrate compromising engine operations.

2.2. Alignment of reliefs

This solution increases the elasticity of the gasket during operation, guaranteeing excellent grip over time, even in extreme conditions. On the contrary, a misalignment of the reeds would cause an immediate flattening of the gasket, eliminating the function of elastic memory and the consequent loss of compression.

Technical features

Gasket Bore Diameter (mm) 98.20
Net Weight (Kg) 0.05
Thickness (mm) 0.75

Vehicle compatibility

YAMAHA YFZ S 450 cc 2004/2011
YAMAHA YZ F 450 cc 2003/2005

Part No. 56-K108_98_GHA. (radhouse.co.uk)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YZ F 450	2004
YAMAHA	YZ F 450	2003
YAMAHA	YZ F 450	2005
YAMAHA	YZF 450	2006-2009
YAMAHA	WRF 450	2007-2015
YAMAHA	YZ F 450	2006-2009
YAMAHA	WR F 450	2007-2015
YAMAHA	YFZ BILL BALANCE EDITION 450	2010
YAMAHA	YFZ S 450	2006
YAMAHA	YFZ S 450	2005
YAMAHA	YFZ S 450	2004
YAMAHA	YFZ S 450	2007-2008
YAMAHA	WR F 450	2007-2012
YAMAHA	YFZ X 450	2009-2015
YAMAHA	YFZ X 450	2010-2021
YAMAHA	YFZ R 450	2009-2015
YAMAHA	YFZ R 450	2009-2017
YAMAHA	YFZ S 450	2009
YAMAHA	YFZ S 450	2010-2011
