Cylinder Kit 47.50mm Bore Yamaha YZ 85 02-18 Cylinderworks CW20015K01

Description

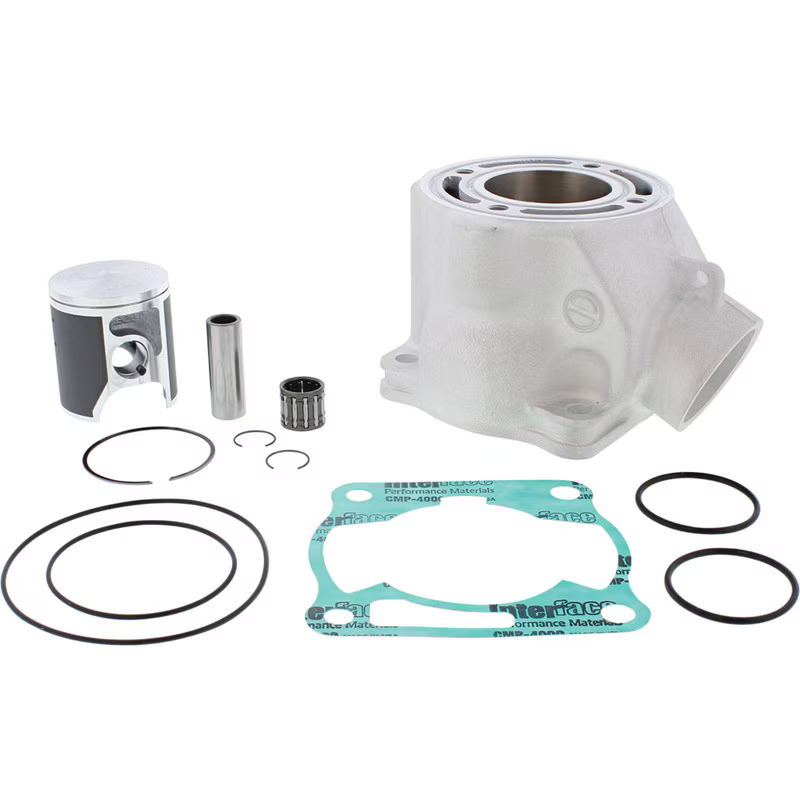

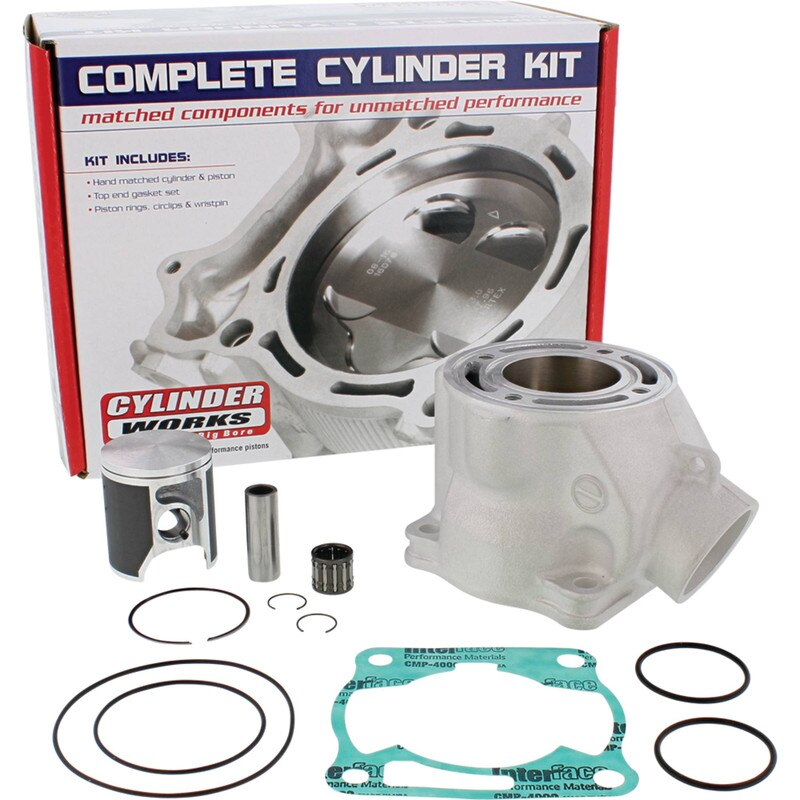

Standard bore cylinder kit for Yamaha YZ 85 models. This kit includes the cylinder, piston kit, top end gasket kit and wrist pin bearing, and is designed for 47.50 mm bore 85 cc 2-stroke engine applications. Cylinder Works part number CW20015K01 uses Vertex piston reference 24370 and fits YZ 85 models from 2002 to 2018.

Features

  • Standard bore cylinder kit

  • Includes cylinder, piston kit, top end gasket kit and wrist pin bearing

  • Suitable for 85 cc 2-stroke engines

  • Fits Yamaha YZ 85 models

Specifications

  • Uses Vertex #24370

  • Compression ratio: STD

  • Cylinder diameter: 47.500 mm

  • Cylinder kit type: standard bore

  • Displacement: 85 cc

  • Engine type: 2-cycle

Cross-Reference OEM Part Numbers

  • Cylinder Works: CW20015K01

Vehicle Fitments

  • Yamaha YZ 85 (2002-2018)

Cylinder Kit 47.50mm Bore Yamaha YZ 85 02-18 Cylinderworks CW20015K01

Product form

Standard bore cylinder kit for Yamaha YZ 85 models. This kit includes the cylinder, piston kit, top end gasket kit... Read more

1 in stock 1-2 business days

£556.88 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-K235.475.CK.CW
    Barcode: 0120000111190

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Standard bore cylinder kit for Yamaha YZ 85 models. This kit includes the cylinder, piston kit, top end gasket kit and wrist pin bearing, and is designed for 47.50 mm bore 85 cc 2-stroke engine applications. Cylinder Works part number CW20015K01 uses Vertex piston reference 24370 and fits YZ 85 models from 2002 to 2018.

    Features

    • Standard bore cylinder kit

    • Includes cylinder, piston kit, top end gasket kit and wrist pin bearing

    • Suitable for 85 cc 2-stroke engines

    • Fits Yamaha YZ 85 models

    Specifications

    • Uses Vertex #24370

    • Compression ratio: STD

    • Cylinder diameter: 47.500 mm

    • Cylinder kit type: standard bore

    • Displacement: 85 cc

    • Engine type: 2-cycle

    Cross-Reference OEM Part Numbers

    • Cylinder Works: CW20015K01

    Vehicle Fitments

    • Yamaha YZ 85 (2002-2018)
