Cylinder Kit 55mm Big Bore 132cc 2013-2025 Honda CRF110F Fuel Injected Models

Description

This 132 cc big-bore cylinder, piston and top-end gasket rebuild kit provides a complete replacement top end, featuring an aluminium cylinder with a cast-iron liner, matched piston set, and comprehensive gaskets. The cylinder includes a 90° oil temperature sensor port and is designed as a plug-and-play solution without crankcase machining; tuning is required to suit the increased displacement.

Features

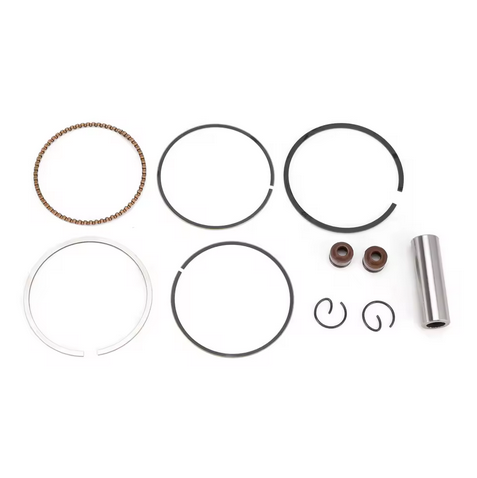

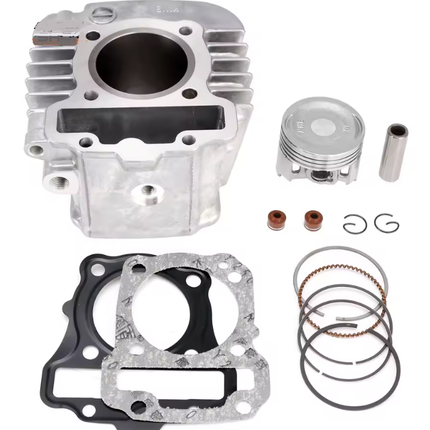

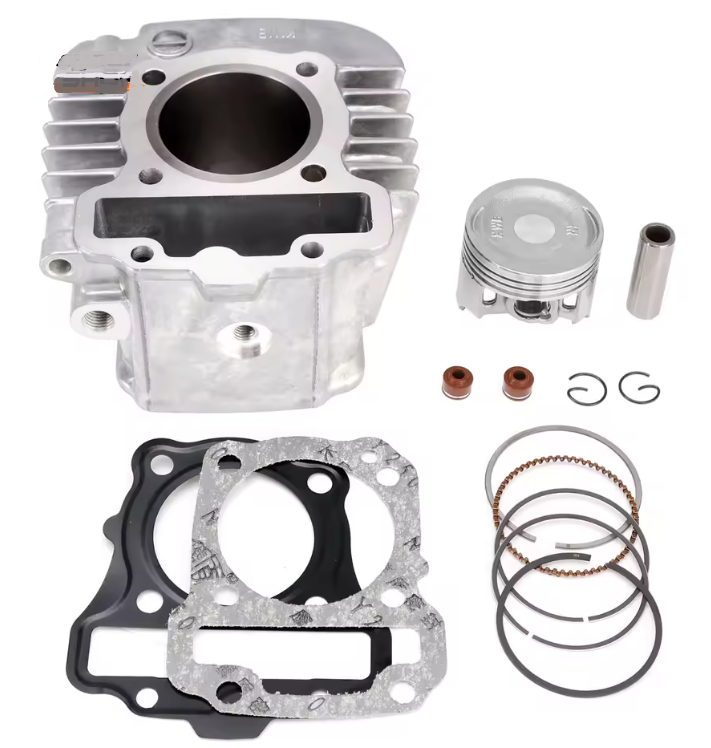

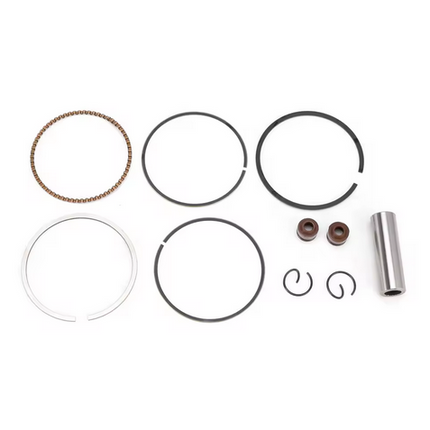

  • Complete kit: cylinder, piston, rings, pin, clips and top-end gasket kit (exactly as pictured)

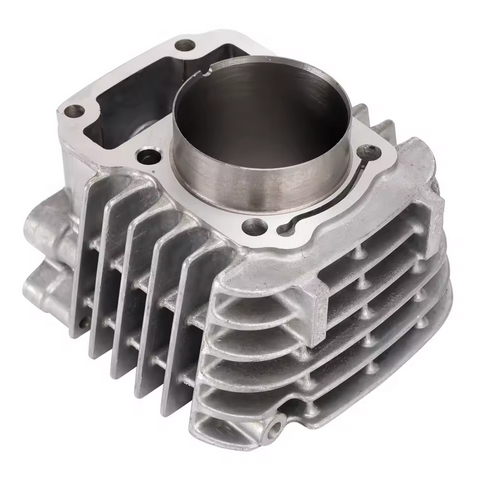

  • Aluminium cylinder with internal cast-iron jacket (not a Nikasil-treated bore)
  • Performance gasket materials for durability and reliability
  • Includes all gaskets pictured to rebuild the top end

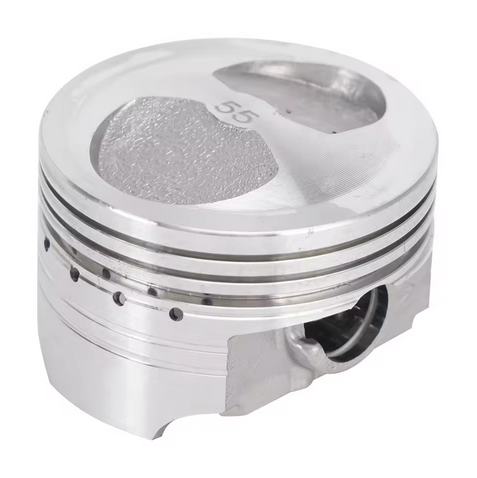

  • Big-bore size: 55 mm bore with 13 mm steel piston pin
  • Plug-and-play installation; no crankcase machining required
  • Compatible with or without a big-valve kit and high-performance cam
  • All year models will require tuning for the larger displacement
  • Excellent low-cost replacement for defects in the original cylinder
  • Meets or exceeds OEM quality
  • Direct OEM replacement
  • Stock mounting locations
  • Designed to handle increased power loads
  • Best value for money
  • Made to OEM specifications and matches original equipment appearance
  • Please check the image before ordering to avoid mistakes
  • Easy to install, but if unsure please use a professional
  • Always compare part numbers to your parts schematics and cross-reference appropriately
  • This is not a genuine part; OEM numbers are for identification and comparison only

Specifications

  • Condition: Aftermarket, 100% brand new
  • Quantity: 1 set
  • Materials: Aluminium, steel
  • Engine type: 4-stroke
  • Displacement: 132 cc
  • Bore type: Big bore
  • Oil temperature sensor port: Yes
  • Oil temperature sensor port angle: 90°
  • Bore diameter: 55 mm
  • Piston pin diameter: 13 mm

Cross-Reference OEM Part Numbers

  • Cylinder: 12103-KWB-550
  • Cylinder base gasket: 12191-K58-TC0
  • Cylinder head gasket: 12251-KWB-601
  • Pin, piston: 13111-KVR-C00
  • Circlips, piston (2): 13115-KVR-C00
  • Valve stem seal (2): 12209-GB4-682

Vehicle Fitments

  • This cylinder kit can be installed on almost all typical 110i fuel-injected Honda engines
  • Honda Wave 110i AFS110 (EFI) 2011–2013
  • Honda EX5 Dream 110i
  • Honda Cross Cub 110, C110 Super Cub, NBC110 2012–2017
  • Honda Super Cub 110 C110 JA10 2018–2019
  • Honda Cross Cub 110 CC110 JA10 2018–2019
  • Honda CRF110F fuel-injected models 2013–2025
  • This cylinder block has a 90° oil temp sensor port and is plug-and-play for fuel-injected CRF110F
  • Uses a straight mount for the oil temp sensor and does not use the sensor cover
  • For CRF110F with this cylinder, the KWB-type cylinder head must also be installed
  • For carburetted bikes, the oil temp sensor port must be blanked with a bolt and copper washer
  • Compatibility chart is for reference only; compare with your faulty unit and the provided image to confirm fitment
