Description
CYLINDER REBUILD KIT. BIG BORE 94.00mm. PSYCHIC AT-09462-1K
Kawasaki
2003-06 KFX 400,
2003-04 KLX 400,
Suzuki
2000-09 DR-Z 400E,
2000-09 DR-Z 400K,
2000-09 DR-Z 400S ,
2000-09 DR-Z 400SM,
2000-09 DRZ 400,
2003-12 LTZ 400,
Arctic Cat
2004-08 DVX 400,
(NIKASIL PLATED)
BRAND NEW AND DESIGNED STRICTLY OFF OF OEM SPECIFICATIONS. CAST FROM AB4C ALUMINUM WITH NIKASIL PLATED SLEEVES. THIS ALLOWS OUR CYLINDERS TO HAVE SOME OF THE BEST WEAR CAPABILITIES IN THE MARKET. MOST CYLINDERS ARE SIMPLE DROP IN INSTALL WITH NO CASE MODIFICATIONS NECESSARY.
- Sleeve. Nikasail.
- Hardness HV500~600.
- Thickness 0.08 +/- 0.02mm.
- Cylinder Material JIS AC4B-T6 Aluminum, hardness HR65up.
Part No. 56-K112.94.KIT (radhouse.co.uk)

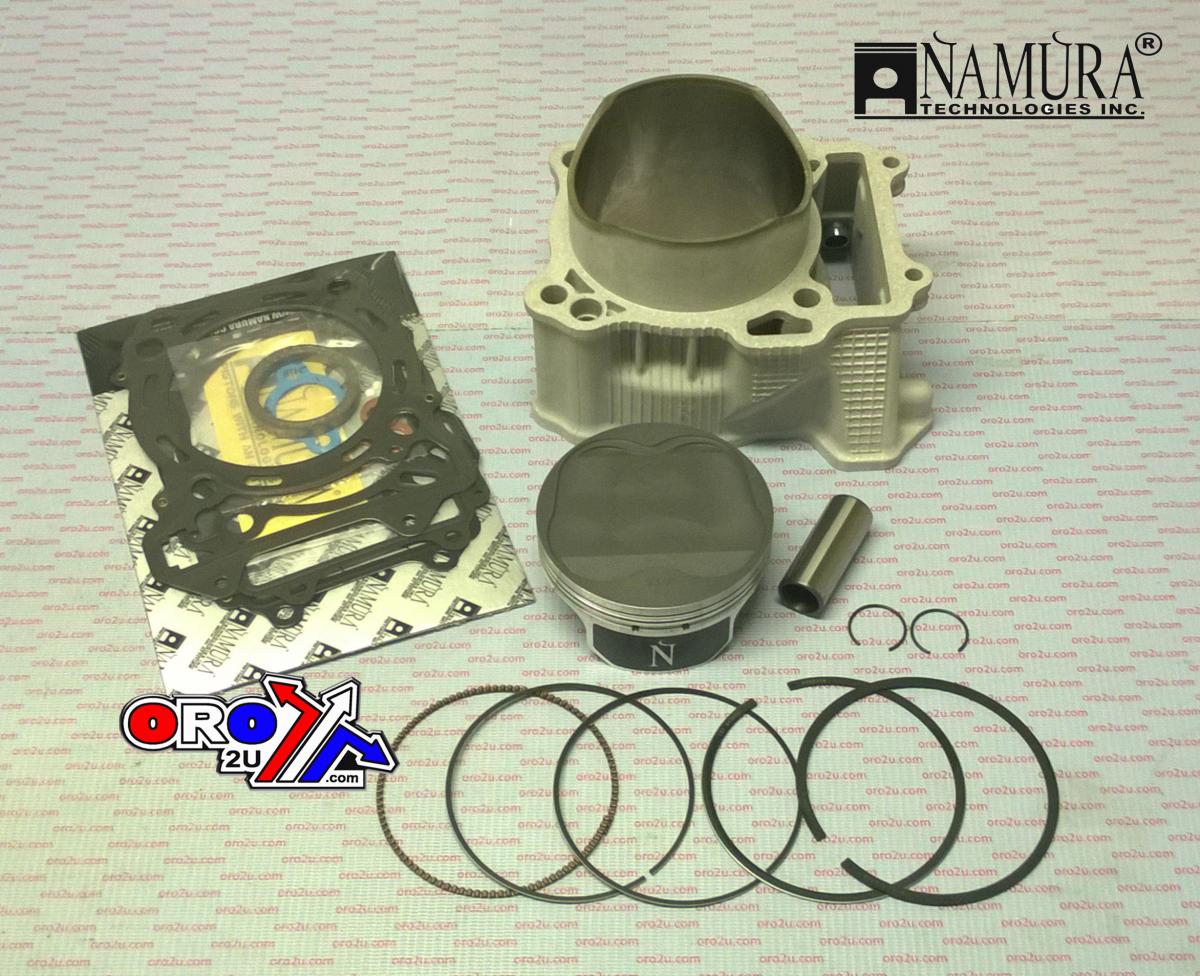

CYLINDER KIT COMPONENTS.
| AT-09462-1 | STD CYL |
| NA-30002-16 | NAMURA PISTON KIT |
| NA-30002-16T | NAMURA TOP GASKET SET |
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| KAWASAKI |
KFX 400 |
2003-2006 |
| SUZUKI |
LT Z QUADSPORT 400 |
2003-2014 |
| SUZUKI |
DR Z 400 |
2000-2017 |
| SUZUKI |
DR Z 400 |
2000-2016 |
| ARCTIC CAT |
DVX 400 |
2004-2008 |
| KAWASAKI |
KLX 400 |
2003-2006 |
| SUZUKI |
DR Z 400 |
2000-2012 |
| SUZUKI |
DR Z 400 |
2003-2008 |
| SUZUKI |
LTZ 400 |
2003-2009 |
| SUZUKI |
DR Z S 400 |
2000-2012 |
