Cylinder Kit 96.00mm Std 2020-2025 Honda Trx 520 12100-HR6-B00

Description

A complete cylinder, piston and gasket top-end rebuild kit with a standard 96.00 mm bore for Honda 518 cc single-cylinder engines. Designed as a direct replacement for the original components on TRX520 (Foreman and Foreman Rubicon) ATVs and Pioneer 520 UTVs, maintaining the OEM bore × stroke (96.0 mm × 71.5 mm) and 19 mm wrist-pin size.

Features

  • Standard 96.00 mm bore to maintain the 518 cc displacement with a 71.5 mm stroke
  • Direct replacement dimensions for OEM components
  • Manufactured to precise tolerances for dependable performance
  • Aluminium construction
  • 19 mm piston pin with circlips included
  • Supplied with cylinder head, base and head-cover gaskets
  • Visual check of the product images before ordering is recommended
  • Straightforward to install; professional fitting is advised if unsure
  • Part numbers supplied for identification and cross-reference only

Specifications

  • Material: Aluminium
  • Displacement: 518 cc
  • Bore type: Standard
  • Bore diameter: 96.00 mm
  • Stroke: 71.5 mm
  • Piston pin diameter: 19 mm

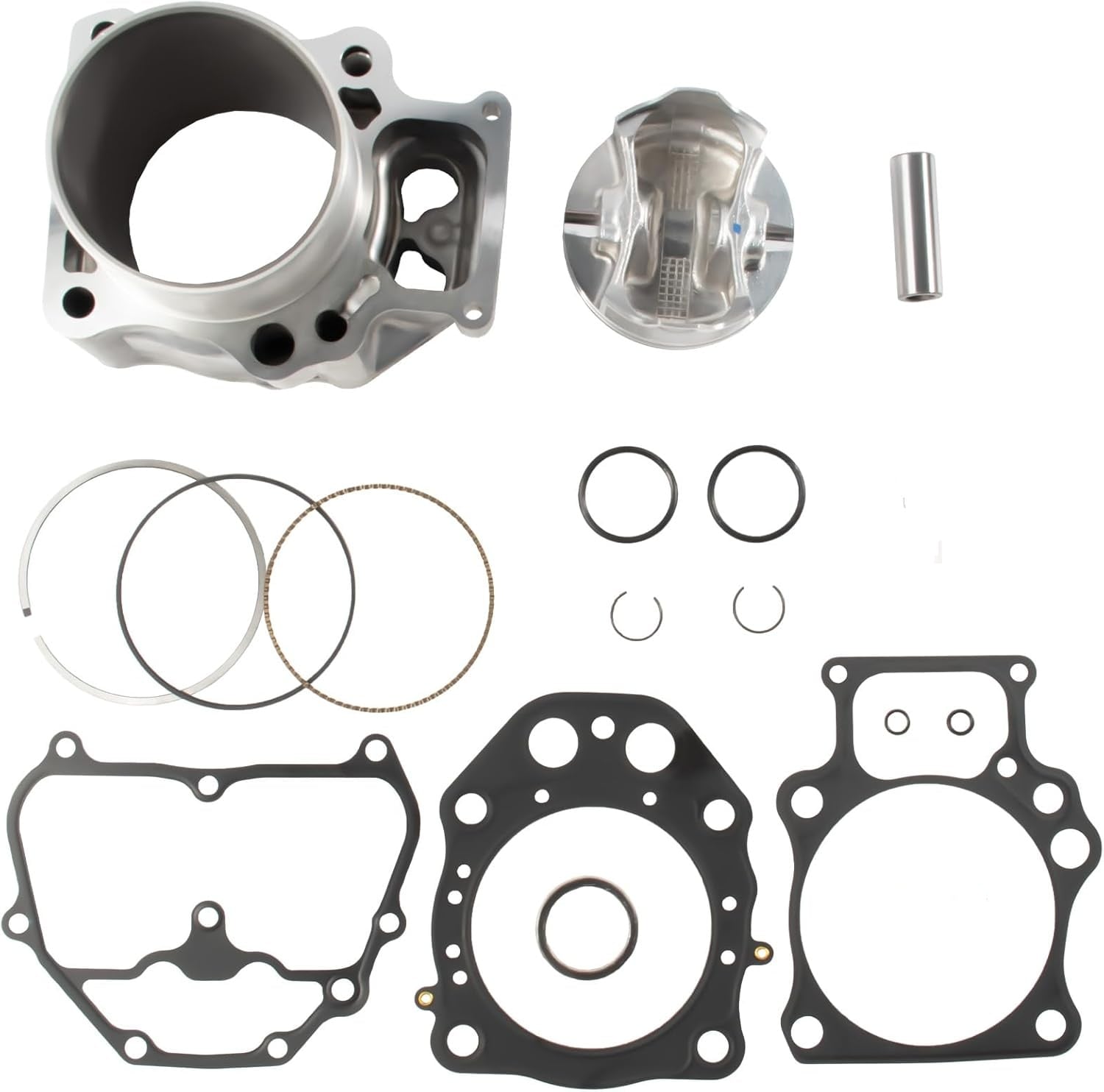

  • Included in set: Cylinder; piston; piston ring set; wrist pin; 2 × piston circlips; cylinder head gasket; cylinder base gasket; cylinder head cover gasket

Cross-Reference OEM Part Numbers

  • Cylinder: 12100-HR6-B00
  • Cylinder Base Gasket: 12191-HR6-B01
  • Cylinder Head Gasket: 12251-HR6-B01
  • Cylinder Head Cover Gasket: 12315-HR0-F01
  • Piston (Std): 13101-HR6-B00
  • Pin, Piston: 13111-HP5-600
  • Piston Ring Set (Std): 13010-HR6-305
  • Circlips, piston (2): 13112-MAT-000

Vehicle Fitments

  • Honda FourTrax Foreman 520 TRX520FE2 4x4 ES EPS: 2020–2025
  • Honda FourTrax Foreman 520 TRX520FM1 4x4: 2020–2025
  • Honda FourTrax Foreman 520 TRX520FM2 4x4 EPS: 2020–2025
  • Honda FourTrax Foreman Rubicon 520 TRX520FA5 4x4 Auto DCT: 2021–2024
  • Honda FourTrax Foreman Rubicon 520 TRX520FA6 4x4 Auto DCT EPS: 2021–2024
  • Honda FourTrax Foreman Rubicon 520 TRX520FA7 4x4 Auto DCT EPS Deluxe: 2021–2024
  • Honda FourTrax Foreman Rubicon 520 TRX520FM6 4x4 EPS: 2020–2024
  • Honda Pioneer 520 SXS520M: 2021–2025
  • Honda Pioneer 520 SXS520M2: 2021–2025

Cylinder Kit 96.00mm Std 2020-2025 Honda Trx 520 12100-HR6-B00

Product form

A complete cylinder, piston and gasket top-end rebuild kit with a standard 96.00 mm bore for Honda 518 cc single-cylinder... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-K241.96.CK

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    A complete cylinder, piston and gasket top-end rebuild kit with a standard 96.00 mm bore for Honda 518 cc single-cylinder engines. Designed as a direct replacement for the original components on TRX520 (Foreman and Foreman Rubicon) ATVs and Pioneer 520 UTVs, maintaining the OEM bore × stroke (96.0 mm × 71.5 mm) and 19 mm wrist-pin size.

    Features

    • Standard 96.00 mm bore to maintain the 518 cc displacement with a 71.5 mm stroke
    • Direct replacement dimensions for OEM components
    • Manufactured to precise tolerances for dependable performance
    • Aluminium construction
    • 19 mm piston pin with circlips included
    • Supplied with cylinder head, base and head-cover gaskets
    • Visual check of the product images before ordering is recommended
    • Straightforward to install; professional fitting is advised if unsure
    • Part numbers supplied for identification and cross-reference only

    Specifications

    • Material: Aluminium
    • Displacement: 518 cc
    • Bore type: Standard
    • Bore diameter: 96.00 mm
    • Stroke: 71.5 mm
    • Piston pin diameter: 19 mm
    • Included in set: Cylinder; piston; piston ring set; wrist pin; 2 × piston circlips; cylinder head gasket; cylinder base gasket; cylinder head cover gasket

    Cross-Reference OEM Part Numbers

    • Cylinder: 12100-HR6-B00
    • Cylinder Base Gasket: 12191-HR6-B01
    • Cylinder Head Gasket: 12251-HR6-B01
    • Cylinder Head Cover Gasket: 12315-HR0-F01
    • Piston (Std): 13101-HR6-B00
    • Pin, Piston: 13111-HP5-600
    • Piston Ring Set (Std): 13010-HR6-305
    • Circlips, piston (2): 13112-MAT-000

    Vehicle Fitments

    • Honda FourTrax Foreman 520 TRX520FE2 4x4 ES EPS: 2020–2025
    • Honda FourTrax Foreman 520 TRX520FM1 4x4: 2020–2025
    • Honda FourTrax Foreman 520 TRX520FM2 4x4 EPS: 2020–2025
    • Honda FourTrax Foreman Rubicon 520 TRX520FA5 4x4 Auto DCT: 2021–2024
    • Honda FourTrax Foreman Rubicon 520 TRX520FA6 4x4 Auto DCT EPS: 2021–2024
    • Honda FourTrax Foreman Rubicon 520 TRX520FA7 4x4 Auto DCT EPS Deluxe: 2021–2024
    • Honda FourTrax Foreman Rubicon 520 TRX520FM6 4x4 EPS: 2020–2024
    • Honda Pioneer 520 SXS520M: 2021–2025
    • Honda Pioneer 520 SXS520M2: 2021–2025
