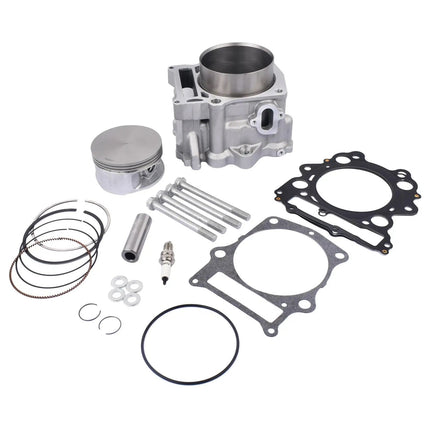

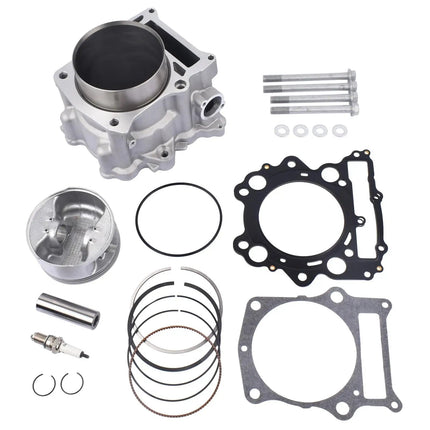

Name: Cylinder Kit Big Bore 102.00mm Yamaha Raptor Rhino 660 5KM-11310-00-00
Brand: Dirt Racing
SKU: 56-K225.KIT.BB
Price: 231.8 GBP
Availability: InStock

Cylinder Kit Big Bore 102.00mm Yamaha Raptor Rhino 660 5KM-11310-00-00

Dirt Racing
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

102.00 mm big bore cylinder rebuild kit for Yamaha Raptor 660 and Rhino 660 models. This kit replaces the cylinder, piston and associated sealing components while increasing engine capacity from 660 cc to approximately 686 cc. It is designed as a direct OEM-style replacement for engine cylinder rebuild applications. Check the product image and applicable part numbers carefully before ordering to confirm suitability.

Features

Increases engine capacity from 660 cc to approximately 686 cc
Designed as a direct OEM replacement
Meets or exceeds OEM-quality requirements
Suitable for cylinder and piston rebuild applications
Satisfaction guarantee provided

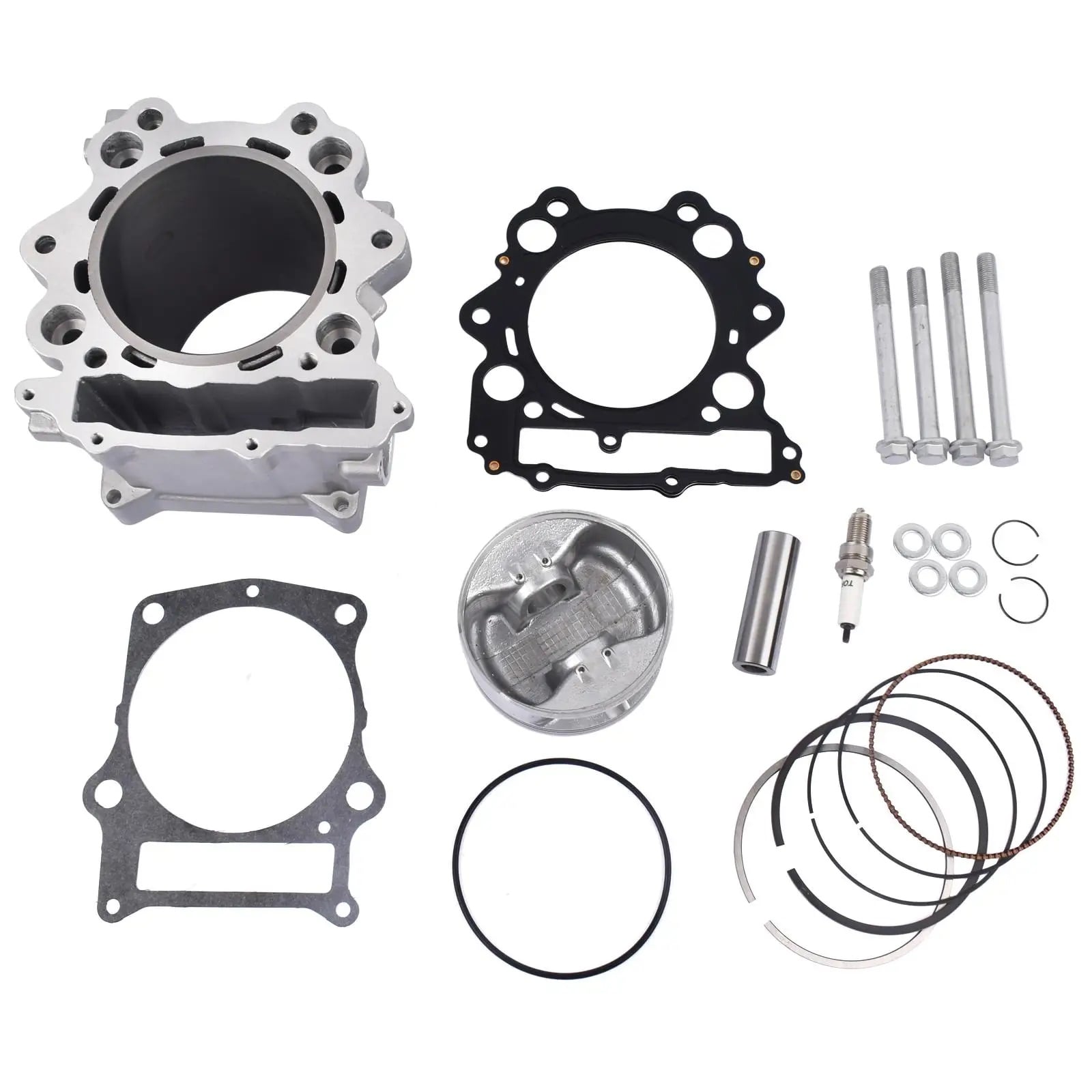

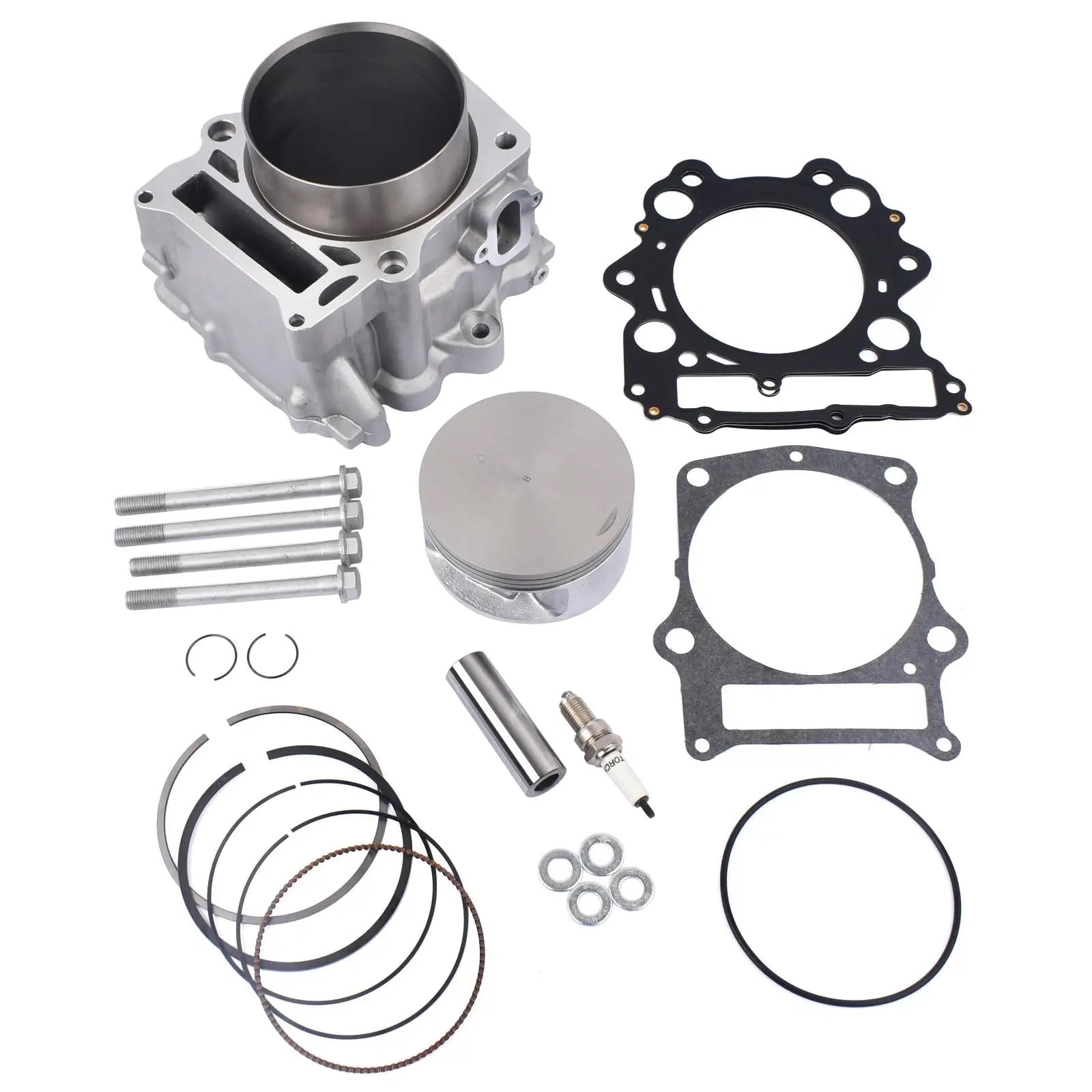

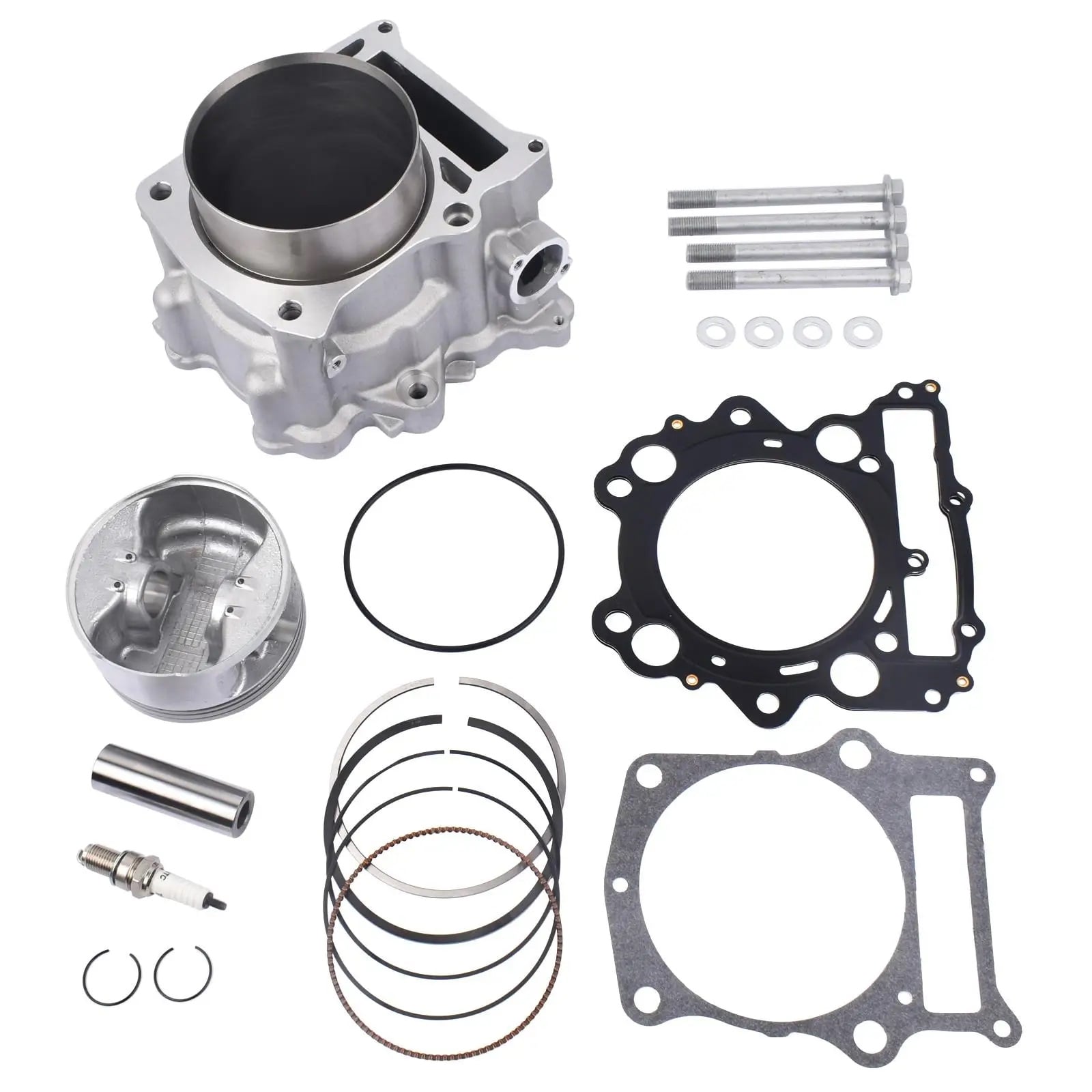

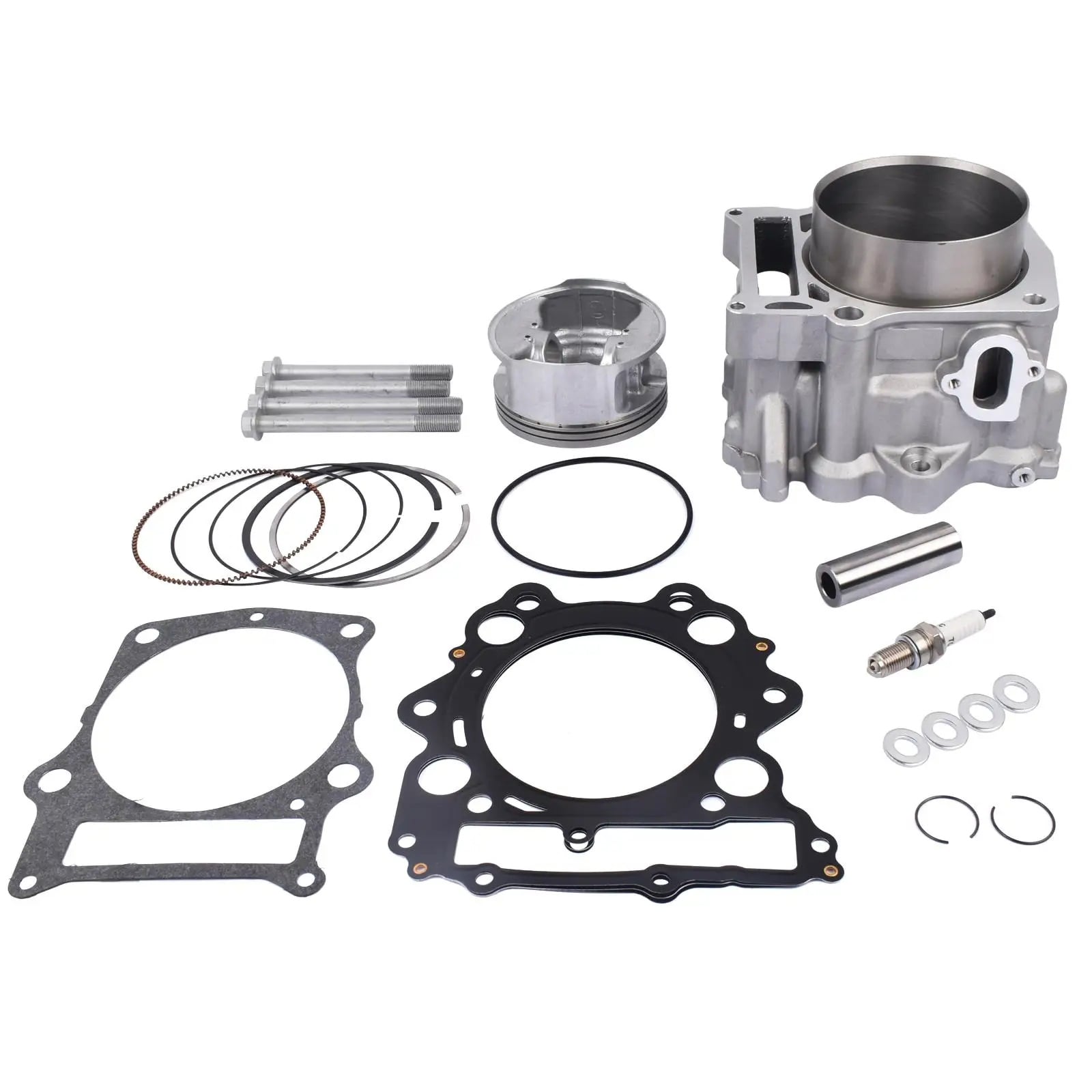

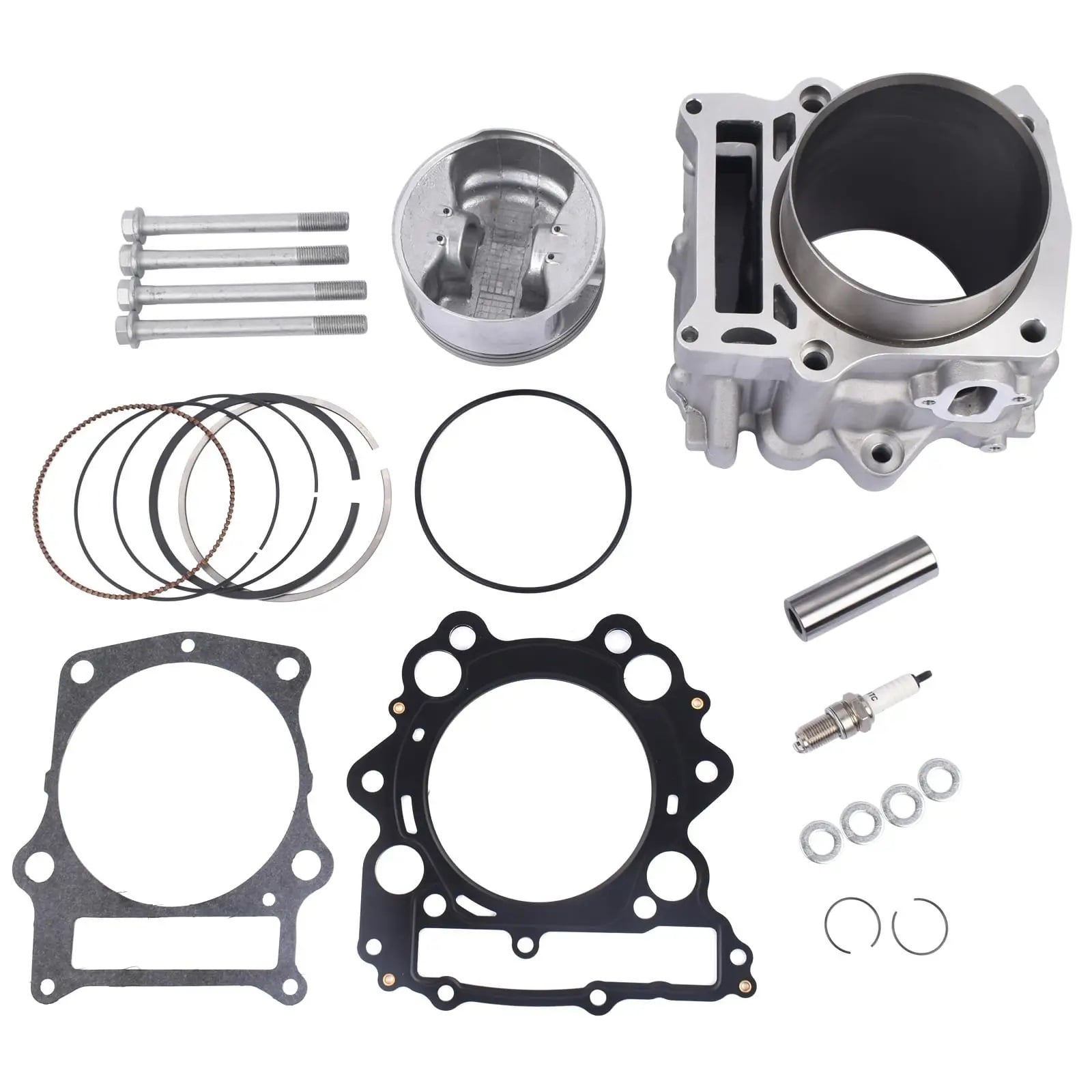

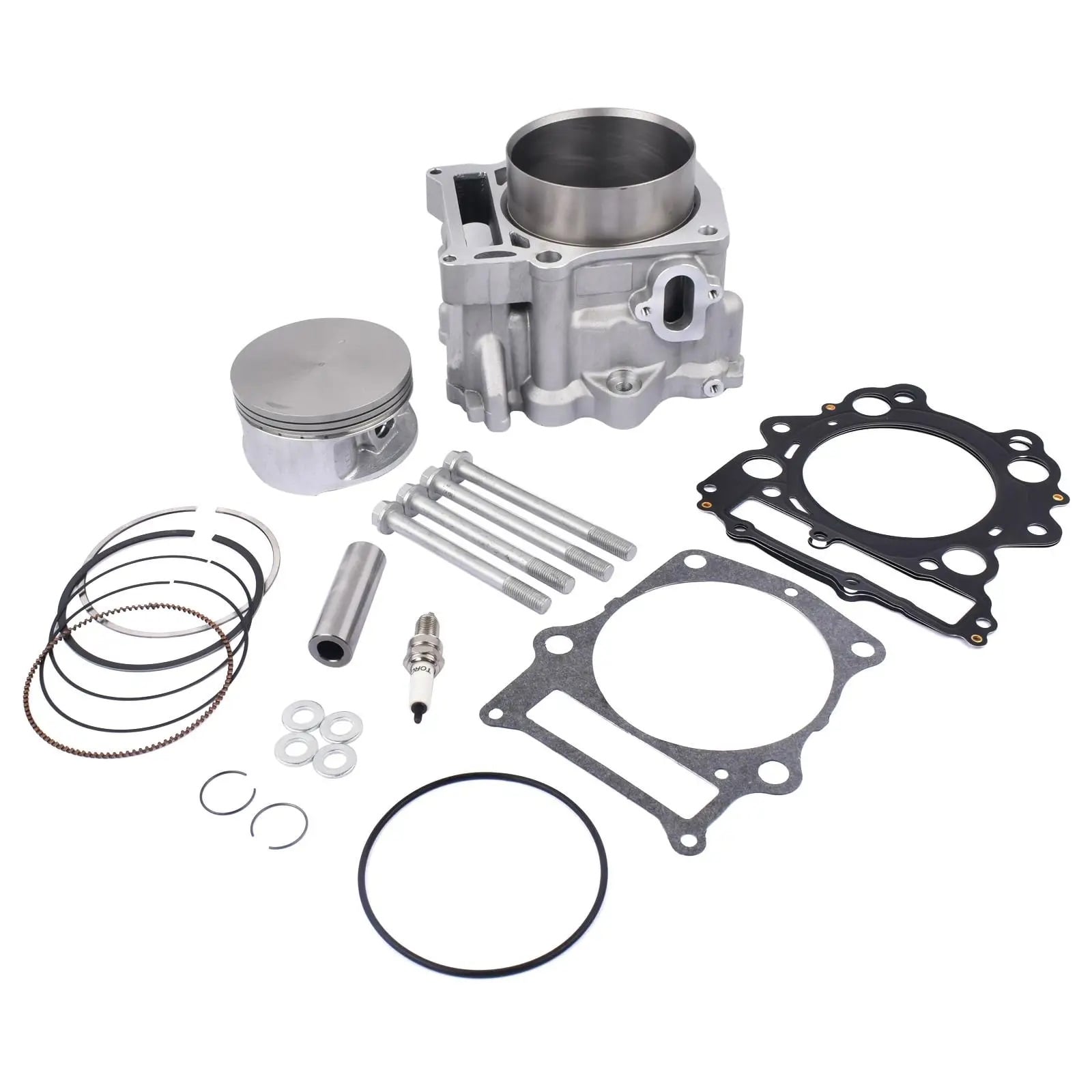

Kit Contents

1 x new cylinder block
1 x new piston
1 x new piston ring set
1 x new piston pin
2 x new circlips
1 x new head gasket
1 x new cylinder base gasket
1 x new rubber cylinder seal
1 x new spark plug

Specifications

Cylinder bore: 102.00 mm
Engine capacity with big bore kit: approximately 686 cc

Cross-Reference OEM Part Numbers

5KM-11310-00-00
DPR-8EA90-00-00
93450-24028-00
90201-102G9-00
90105-10649-00
90105-09648-00
3YF-11638-00-00
3YF-11633-01-00
3YF-11631-00-X0
3YF-11351-00-00
3YF-11310-01-00
3YF-11181-00-00
2C6-11631-00-X0
2C6-11603-00-00
5KM-11351-00-00
93211-01467-00
MK1000934
Replacement gasket kit reference: 52-213.H&B.DR
Supersedes kit reference 56-K218.102.KIT with 56-K225.KIT.BB

Vehicle Fitments

Yamaha Raptor 660: 2001-2005
Yamaha Rhino 660: 2004-2007

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YFM R RAPTOR 660	2001-2005
YAMAHA	YXR RHINO 660	2004-2007
YAMAHA	YFM F GRIZZLY 660	2002-2008
